Installation
Wireless-G Access Point with Power Over Ethernet
Chapter 4
Connecting the Access Point

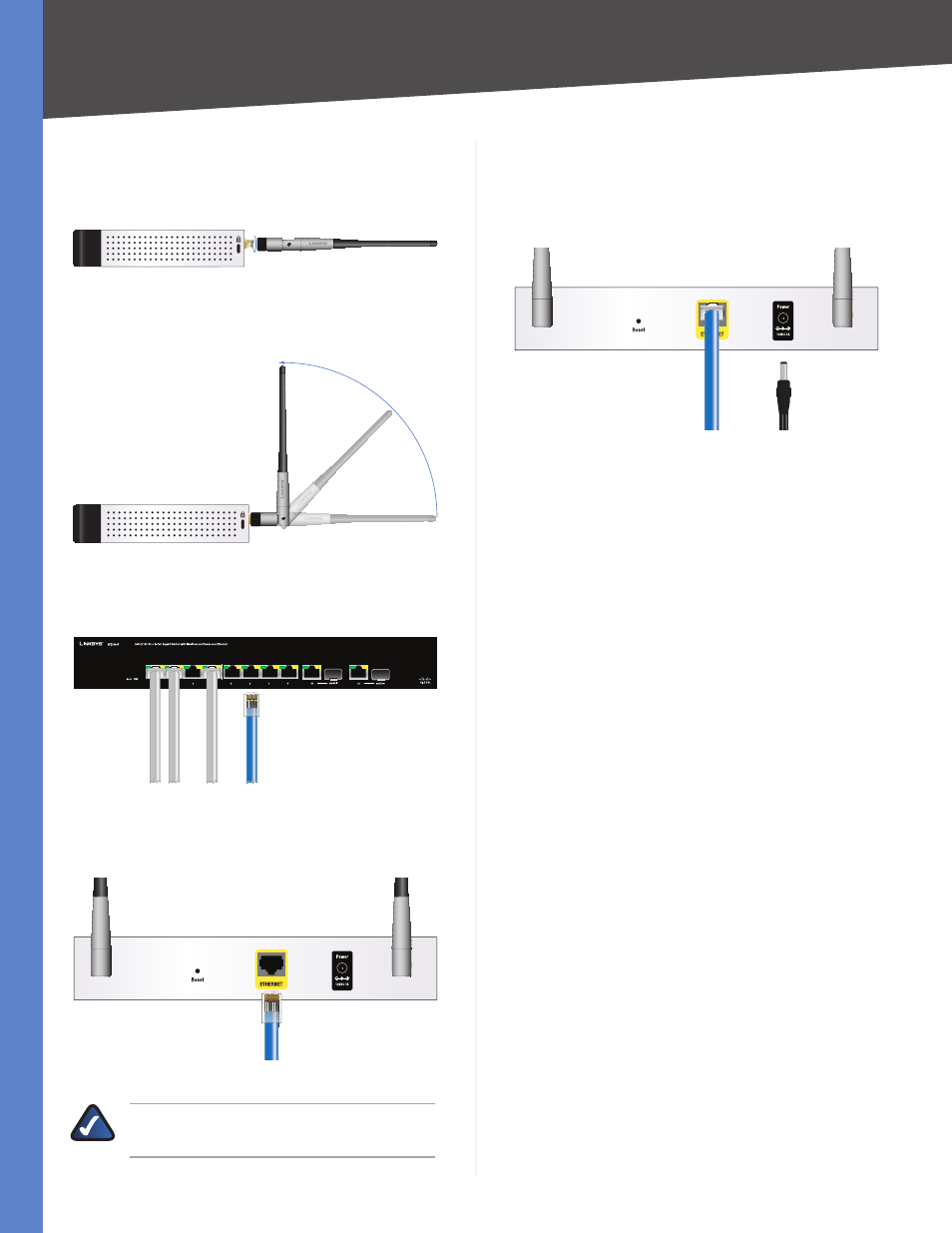

Connect the antennas to the antenna connectors on
the Access Point.
Connect the Antennas
Adjust the two antennas so that they form a 90 degree
angle for best performance.
Adjust the Antennas
Connect your Ethernet network cable to your network
router or switch.
LINK/ACT PoE LINK/ACT PoE LINK/ACT Gigabit LINK/ACT Gigabit
Connect the Ethernet cable to the Router or Switch
Connect the other end of the network cable to the
Access Point’s Ethernet port.
Connect the Ethernet cable to the Access Point
NOTE: If your router or switch provides Power
over Ethernet, then step 5 is not necessary.
1.
2.
3.
4.
If you are not using PoE (Power over Ethernet), then
connect the included power adapter to the Access
Point’s Power port. Then plug the power adapter into
an electrical outlet. The LEDs on the front panel will
light up as soon as the Access Point powers on.
Connect the Power
Installation is complete. For advanced configuration
information, proceed to the next chapter.
5.
