A-4 INSTALLATION
LN™-15 ACROSS THE ARC MODEL & (CE)
A-4
Work
Clamp
Electrode Cable
Electrode Cable
Electrode Cable
Work
Clamp
Work
Clamp
wire feeder
K1870-1
wire feeder
K1870-1
RANGER 8
SAE 400 WITH CV ADAPTER
ENGINE DRIVEN WELDERS
WITH WIRE FEED MODULE
(LOCAL MODE AND CV ADAPTER)
CV250
CV300
CV400
CC POWER SOURCE
Output Output T Terminals erminals
Always Hot. Always Hot.
Output Output T Terminals erminals
Always Hot. Always Hot.
Output Output T Terminals erminals
Always Hot. Always Hot.
Order K484 Jumper Order K484 Jumper
Plug Kit. Plug Kit.
Electrode Cable
Work
Clamp
semiautomatic
semiautomatic
semiautomatic
semiautomatic
wire feeder
K1870-1
wire feeder
K1870-1
wire feeder
K1870-1
CV655, DC400, DC600,
DC655, V350-PRO,
RANGER 9, RANGER 300 DLX
COMMANDER 300
COMMANDER 500
RANGER 250
RANGER 305G Output Output T Terminals erminals
Always Hot. Always Hot.
Power source contactor Power source contactor
switch must be in the switch must be in the
"ON" position or use a "ON" position or use a
K848 Junper Plug Kit. K848 Junper Plug Kit.

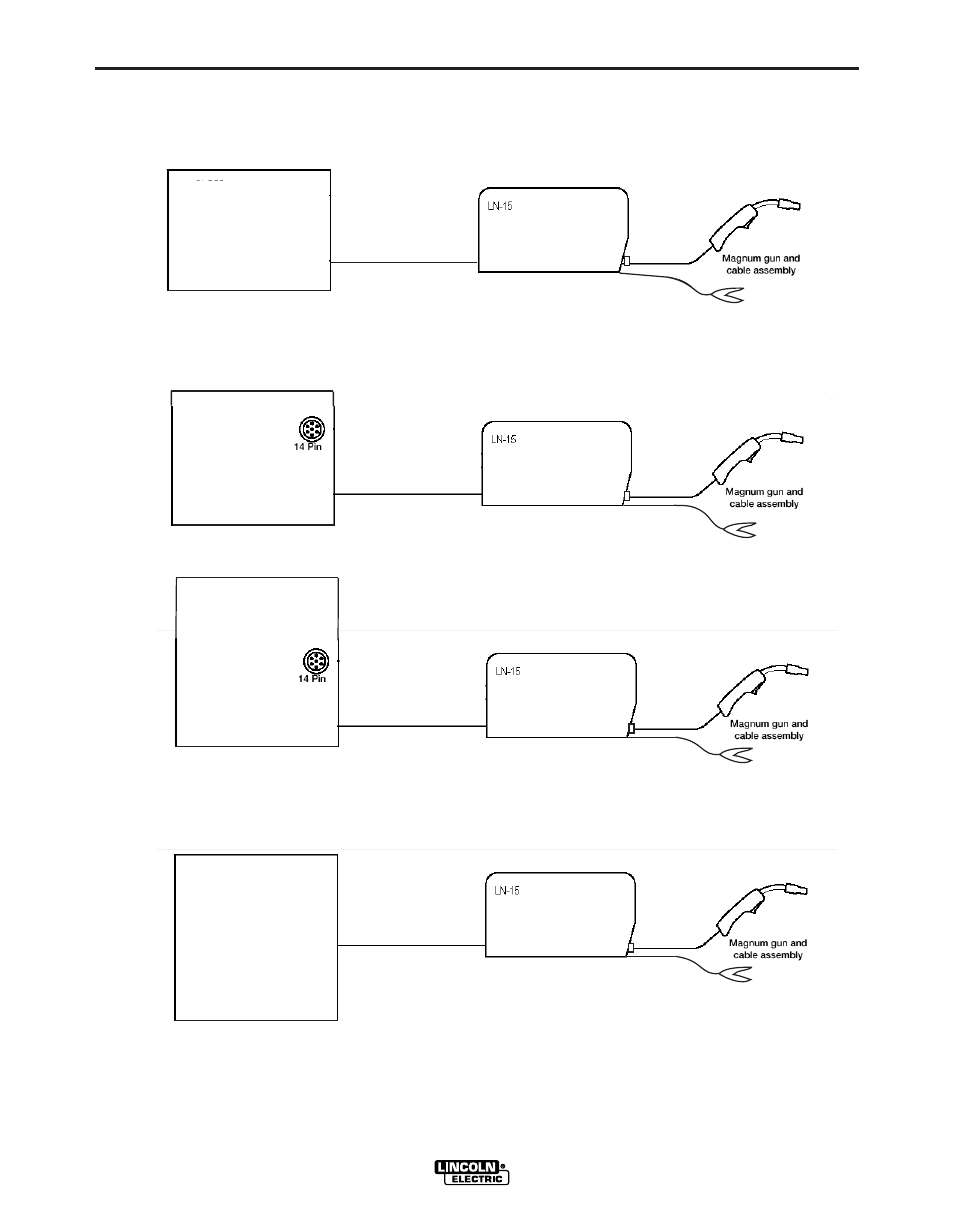

CONNECTION DIAGRAM, ACROSS THE ARC MODEL Set-Up ( See Figure A.1)
Typically used for general fabrication, maintenance and repair jobs because it’s easy to set up and operate.
Requires only one cable-less to carry. Contactor standard on Across The Arc Model.
FIGURE A.1
Although a constant voltage (CV) power source is recommended for best results with Innershield® and gas
metal arc (GMAW) open arc welding, satisfactory general purpose welding may be obtained using the LN™-15
with a constant current (CC) power source for non-critical commercial quality mild steel welding applications.
