Lennox Hearth B-Vent Series EDVCR - Manual (Page 3)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 3

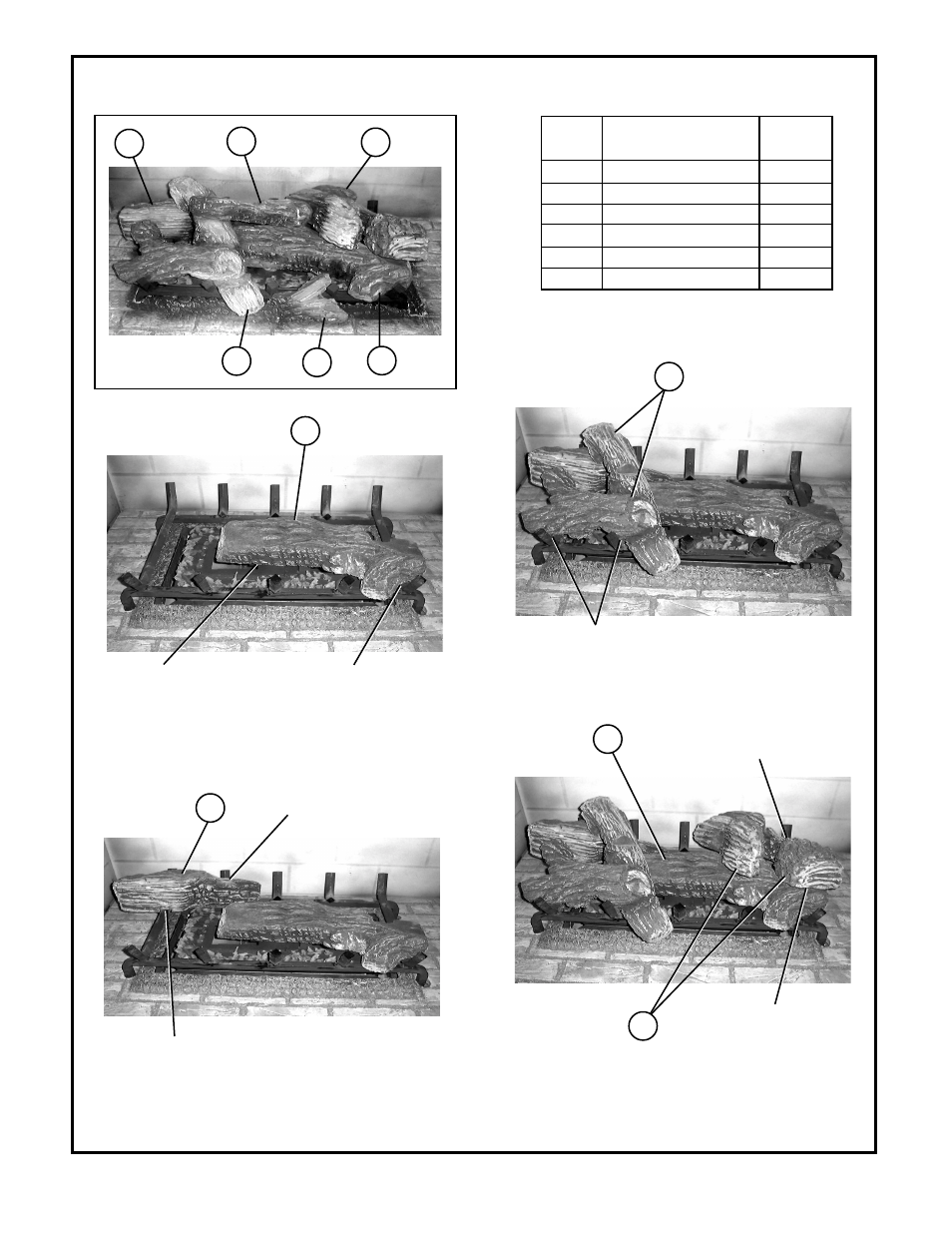

EDVPF, EDVST, EDVCL, EDVCR, EBVPF, EBVST, EBVCL & EBVCR LOG PLACEMENT
Figure 4A
Catalog Number for the entire log set: 55M0401
Log Part
Number Description Number
1 Log, Corner 55M1801
2 Log, Rear/Left 55M1901
3 Log, Front/Left 55M2001
4 Log, Rear/Right 55M2101
5 Log, Front/Center 55M2201
6 Log, Center/Top 55M2301
2 6
5
4
1 3
Position Groove At The
Bottom Of Log (1) Over
The Burner Log Support
Bracket Position The Groove At The
Bottom Of Log (1) Over The
Grate And Slide It Forward
Against The Grate Here
Position Log (2) Over The Grate
Bar And Slide It Against The
Back Of The Grate Here
Position Groove At The Bottom Of Log (2)
Over The Grate Here And Slide It Against
The Back Of The Grate
Place Bottom Hole Of Log (3) On Pin In Log (2). Position
Grooves At The Bottom Of Log (3) Over The Grate.
1
Position And Slide Log (4)
Against The Back Of The Grate
2
Log (3) Lays Over
Logs 1 And 2
STEP 1
STEP 2
STEP 3
STEP 4
3
4
1
Place Log (4) Over
The Flat Spot On
Log (1) Here
