NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 2

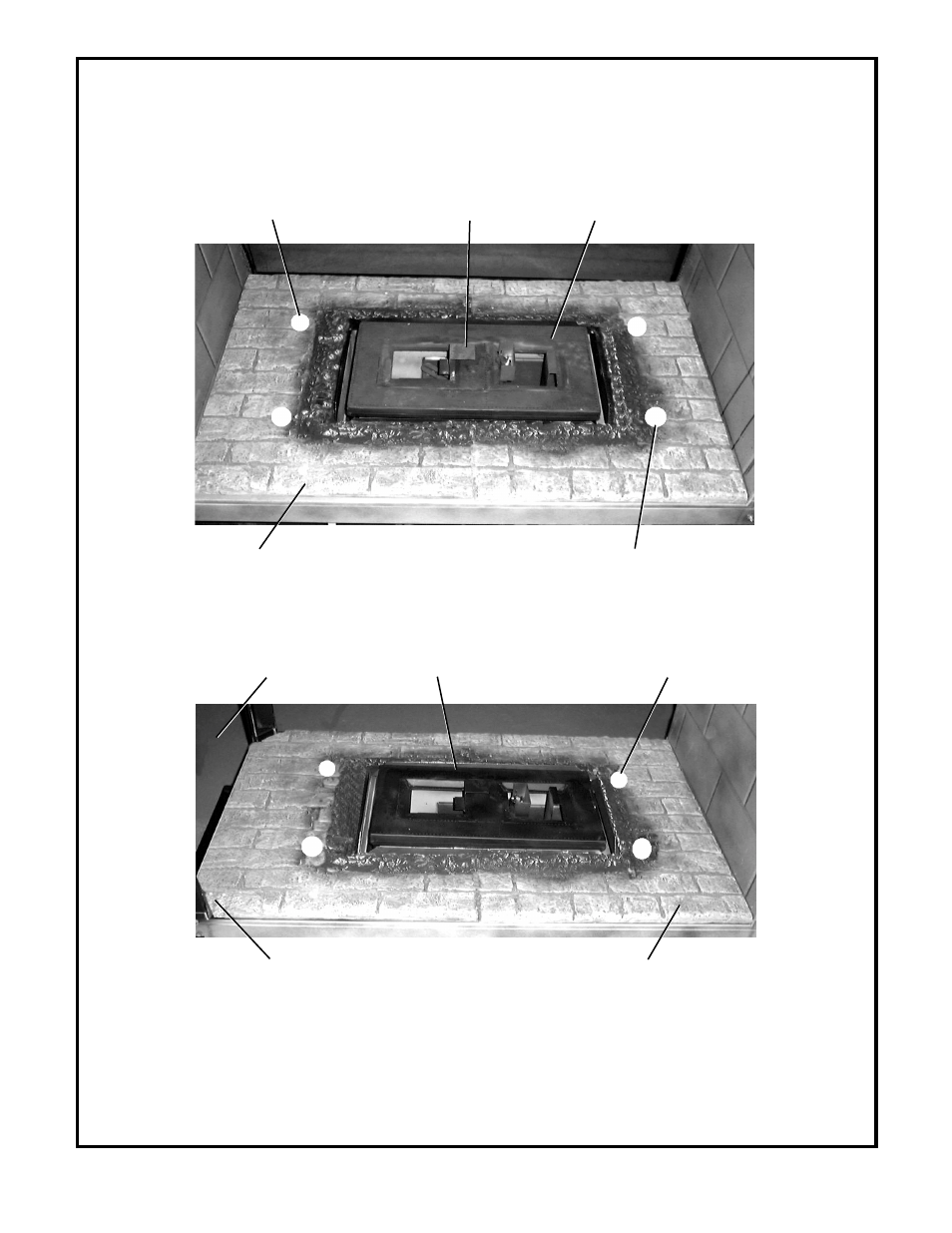

CERAMIC FLOOR PANEL PLACEMENT (Direct Vent Fireplaces Only)
Figure 3
Catalog Number for the Ceramic Floor Panel set: 55M4901 (For EDVPF), 55M5101 (For EDVCL),
55M5501 (For EDVST) And 55M7601 (For EDVCR).
1 1/4" Dia. Through Holes (4 Places)
Ceramic Floor Panel
Burner
EDVST Shown
Burner
Ceramic Floor Panel EDVCL Shown*
*NOTE: EDVCR & EDVPF Are Installed In Similar Fashion
With Chamfer End Pointing Toward Small Door Opening
Chamfer Corner Pointing Toward
Small Door Opening
Small Door Opening
Place The Four Legs Of The Grate
Assembly In The Four Holes Of The
Ceramic Floor Panel
Log Support
1 1/4" Dia. Through Holes (4 Places)
