Lennox Hearth Winslow PI40 - Manual (Page 23)

3
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

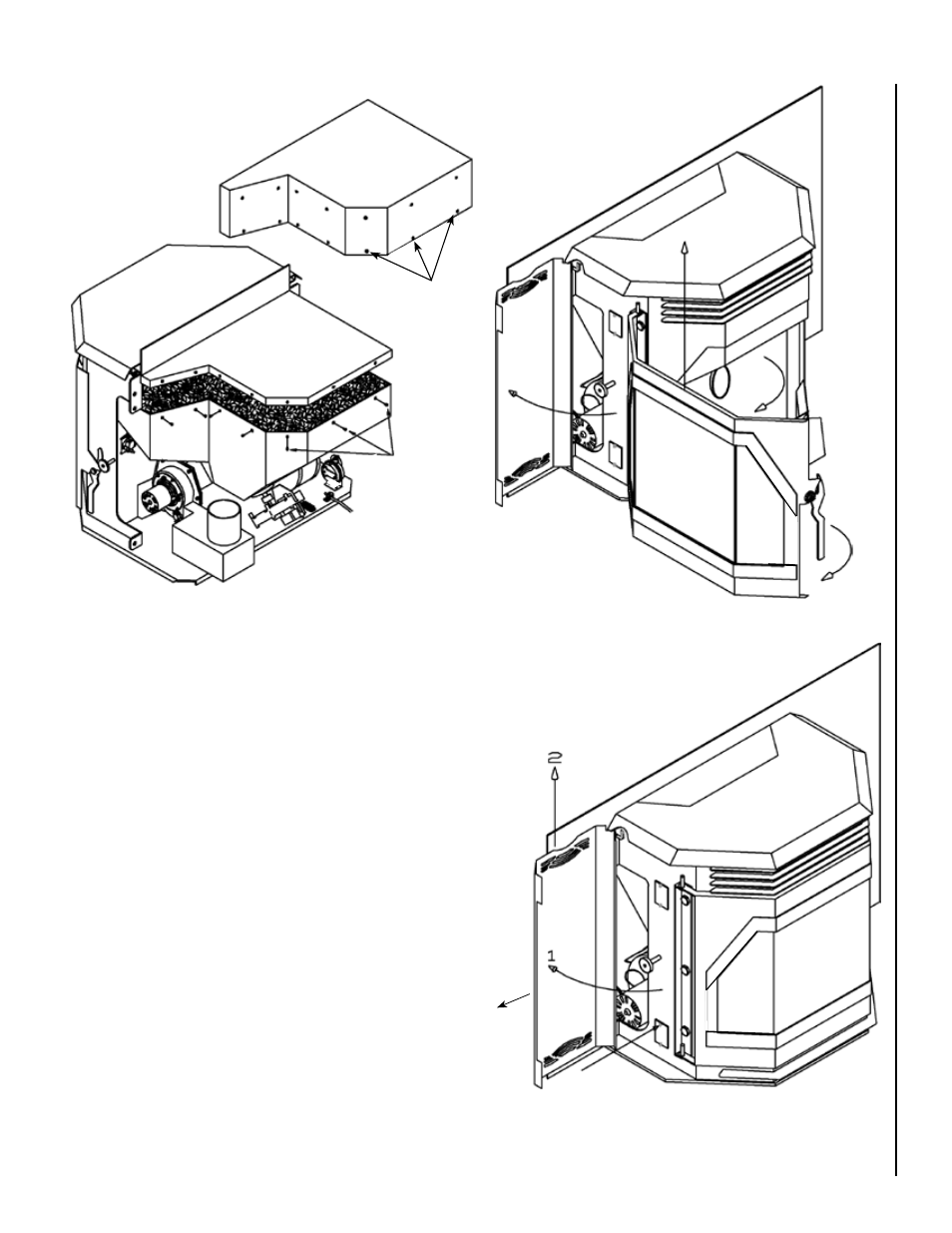

Front Door Opening and Removal
CAUTION: Do not open the front door when the insert is hot.
To remove the door, swing the left and right side doors A open. Pull
the front door handle B to the front and swing the front door open. Lift
the front door up and off the hinges as shown in Figure 41 (see C). To
reinstall the door repeat the steps in reverse order.
Side Door Removal
To remove the door,
1. Swing the door open
2. Lift the door up, and
3. Pull the bottom of the door out and down - pulling the top hinge pin
out of the retaining hole in the top hinge bracket.
To reinstall the door, slide the pin on the top of the door up and into the
hole in the upper hinge bracket. Slide the pin on the bottom of the door
into the hole in the pedestal base and rotate the door closed.
C
B
A
3
1
Figure 41
Figure 42
Front Door
Side
Door
Hopper Extension
Hopper Lid
C
Figure 40
D
