NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
5. Screw in the four tap tights, included with this kit, using a 5/32 allen
wrench.
6. Replace the burn pot and check that it is firmly in place (if you can
rotate the burn pot it is not installed correctly). If present, install
the optional log set according to the log set installation instructions
(included with your log set).
7. Re-hang the door by reversing the instructions in step 1.

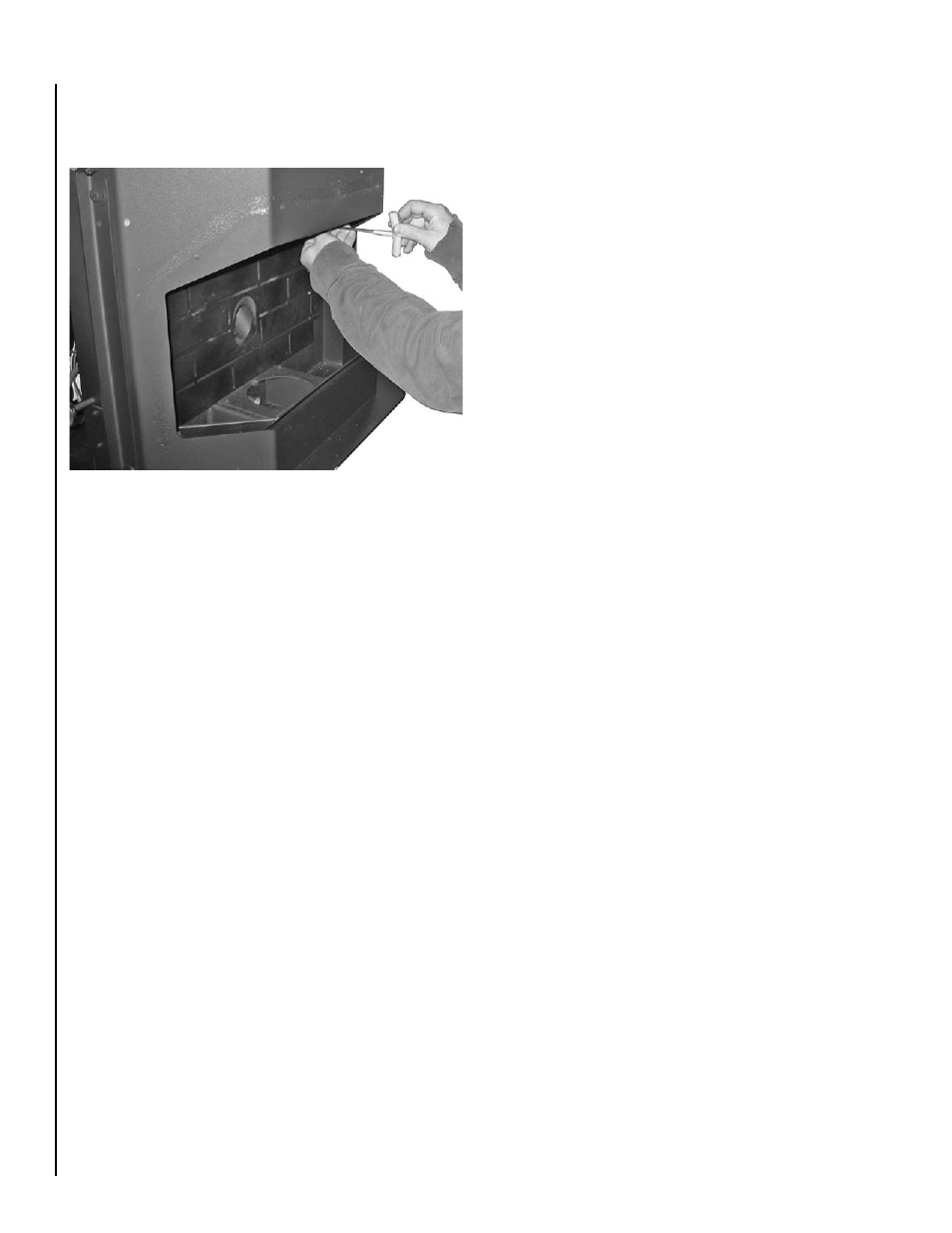

Figure 29
TESTING / LISTING
