14
Step 6 Assemble Moving Arms to Pedal Arms; Pedal / Moving Arm Joint Pivot Covers
Parts: Hardware Bag #4 (2, M20 x 74mm Silver Hex Head Bolts)
(2, M10 Hex Nuts)
(4, 8mm Black Phillips Head Screws)
Tools: 17mm Socket Wrench, Phillips Screwdriver

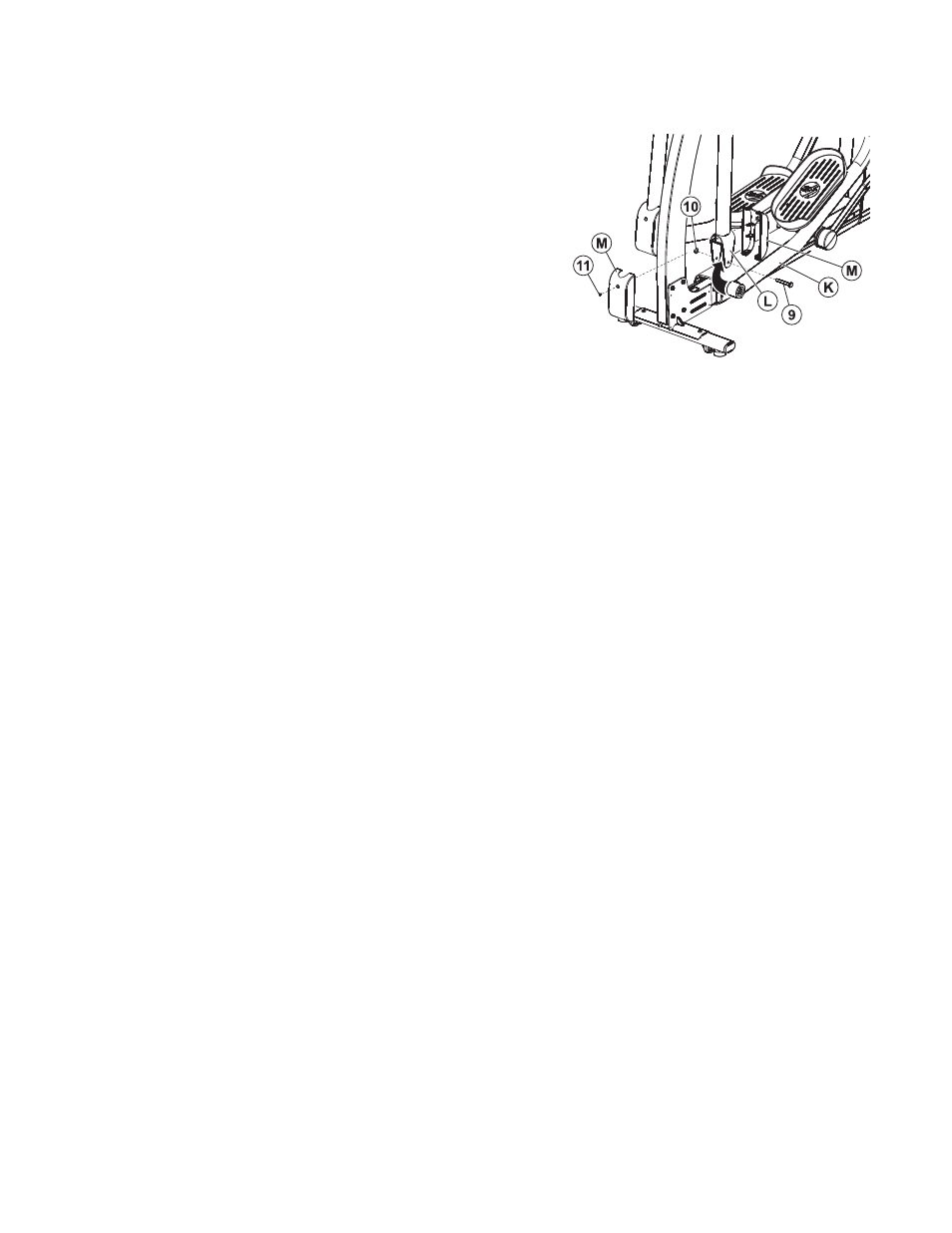

Lift the front end of the user left pedal lever (K) to meet the left rocker arm
clevis (L). Secure the pedal lever to the rocker arm clevis using one M10 x
74mm Silver Hex Head Bolt (9) and one M10 Hex Nut (10). Tighten the
bolt and nut securely. Repeat the procedure for the right pedal
lever and rocker arm clevis.
Attach the left side lower pivot covers (M) over the moving
arm/pedal arm pivot point. Snap the cover together over the
moving arm/pedal arm pivot point and use two 8mm Black Phillips
Head Screws (11) to attach. Repeat for right side.
NOTE: Left and right covers are identical.
