14
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

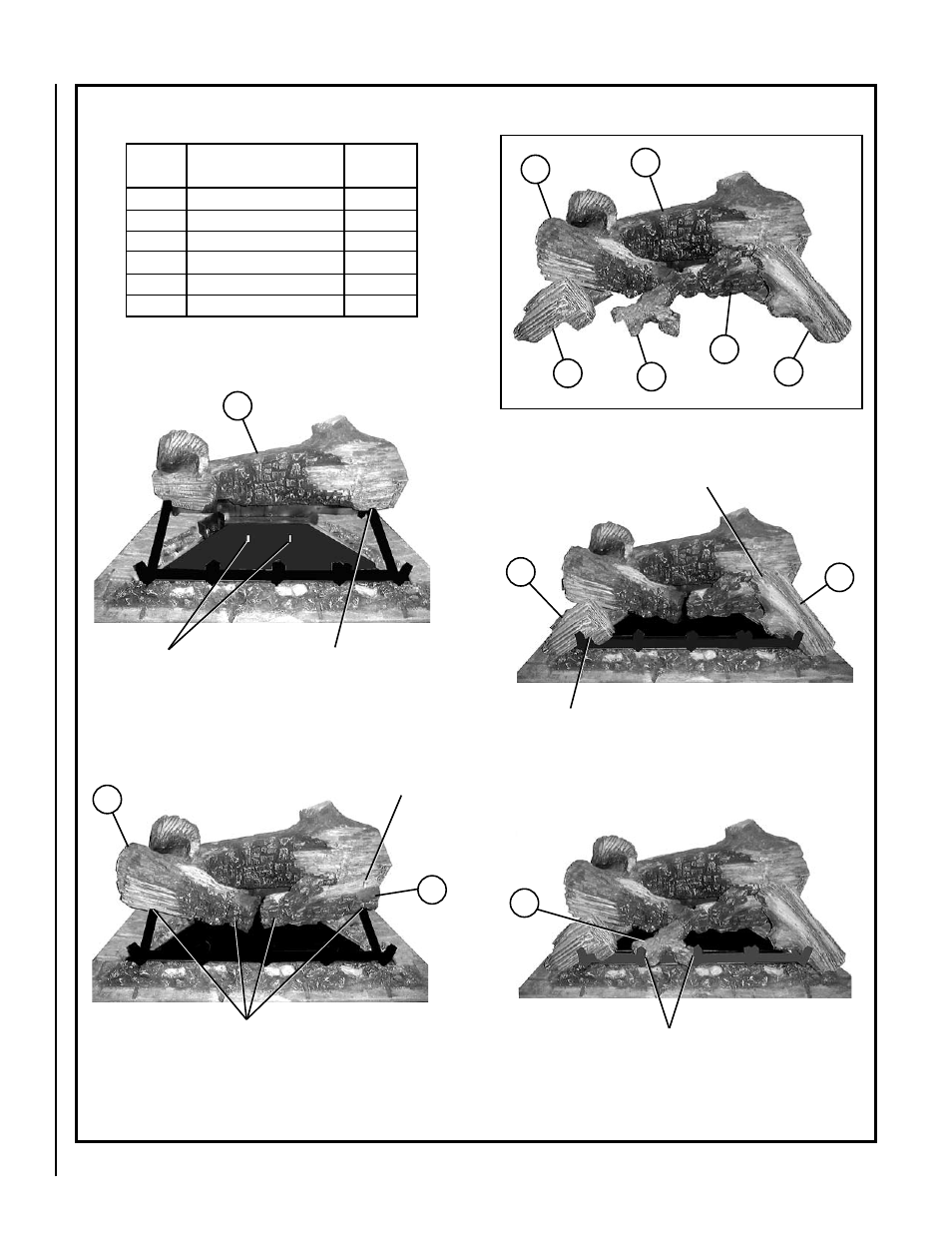

EDV4035 & EDV4540 LOG PLACEMENT
Catalog Number for the entire log set: 55M03
Log Part
Number Description Number
1 Log, Rear 55M12
2 Log, Diagonal/Left 55M13
3 Log, Diagonal/Right 55M14
4 Log, Front/Left 55M15
5 Log, Top/Right 55M16
6 Log, Front/Center 55M17
4
1
Locating Pins Align Groove At The Bottom
Of Log (1) Over The Grate And
Push It Towards The Rear.
Align The Holes In One End Of Logs 2 & 3 Over The
Locating Pins And Align The Grooves On The Other
End Over The Grate And Push It Toward The Rear
Locating Pin
2
3
Align The Groove In The Bottom Of Log (4)
Over The Grate And Slide It Toward The Front.
5
4
Align The Hole On The Log (5) Over The Locating Pin
And Postition The Notch Over The Grate As Shown
Position The Grooves On Log (6)
Against The Grate As Shown
6
2
1
6
3
5
Figure 8
