12
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
INSTALL VOLCANIC STONE, GLOWING
EMBERS AND LOGS
NOTE: Turn off all electricity to the appliance
before you install volcanic stone, embers and
logs. DO NOT attempt to install the logs until the
appliance installation has been completed, the
gas line connected and tested for leaks and the
initial burner operation has been checked out.
Step 1. Remove the appliance front door (see
Removing Glass Encloslure panel on page 11.
Step 2. Install decorative volcanic stone -
Sprinkle the decorative volcanic stone in a pleas-
ing pattern. The volcanic stone should be placed
directly on top of the firebox bottom, along the
front and to the back at the right and left sides of
the burner. Position any optional ceramic fiber
liners before placing the stone. Logs should be
positioned after the volcanic stone.
Note: This appliance is provided with enough
Glowing Embers for several applications, do
not feel compelled to use all that is in a new
bag. For best glowing effect, replace the ember
material annually. Replacement Glowing Em-
bers are available (Catalog Number 88L53).

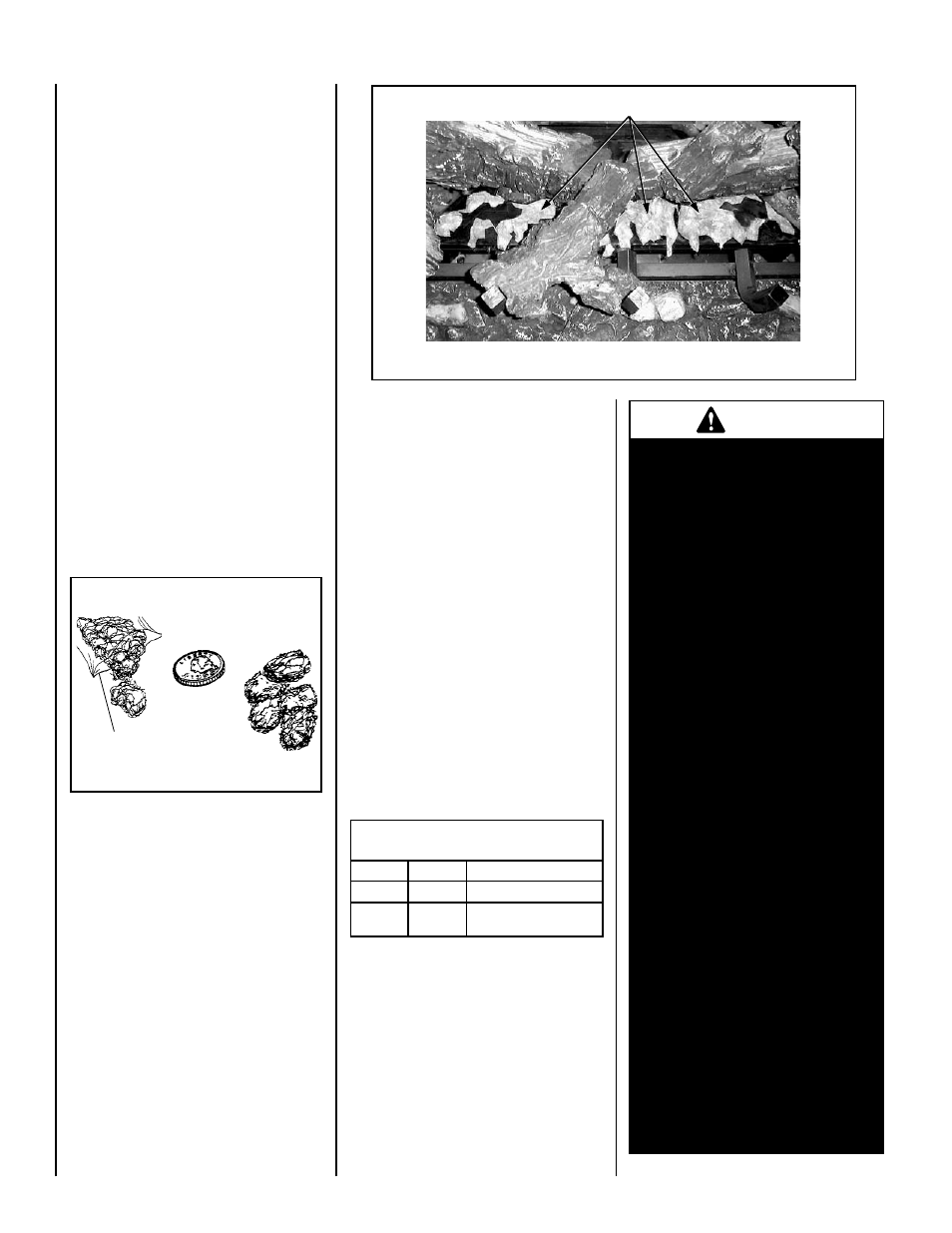

Glowing Embers
Bag of Glowing
Embers (rockwool)
Separate into Quarter
Size (separate) Pieces
Figure 5
Glowing Embers
Figure 6
REFERENCE
Firebox Accessories / Parts
Cat. No. Model No. Description
88L53 FGE Bag of Glowing Embers
80L42 FDVS
Bag of Decorative
Volcanic Stone
Step 4. Placement of Logs -
All top logs that rest on lower logs, do so over
notches, indents or nubs. Proper log placement
is critical to prevent sooting. Logs should be
placed in the gaps between the flame peaks and
should be positioned so they do not impinge
the flames.
Step 5. Position the individual logs as shown
in Figures 7 and 8. Logs should be placed in
the order shown. All logs that have notches to
fit over the grate tines should be positioned with
these notches directly against the grate. Handle
logs carefully to prevent breakage.
Proper log placement is critical to encourage
outstanding flame appearance and prevent
sooting. When positioned properly as shown,
logs will be positioned between flame peaks
and will not impinge any flames.
Refer to Figure 7 for EDV3530 Series appli-
ances and to Figure 8 for EDV4035 & EDV4540
Series appliances.
Step 3. Separate the Glowing Ember
(Rockwool) into pieces about the size of a
quarter (Figure 5 ). Keep the pieces fluffed up,
not matted. Distribute these pieces over the
front surface of the burner, as shown in Figure
6. Do not use more than is necessary. When
properly positioned, the Glowing Embers will
cover approximately 65% of the front burner
and with no appreciable gaps or openings.
Ensure that the main burner ports remain
uncovered by the ember material.
WARNING
• DO NOT attempt to install the
logs until the appliance installa-
tion has been completed, the gas
line connected and tested for leaks
and the initial burner operation
has been checked out.
• The size and position of the log
set was engineered to give the
appliance a safe, reliable and
attractive flame pattern. Any
attempt to use a different log set
in the fireplace will void the war-
ranty and will result in incomplete
combustion, sooting, and poor
flame quality.
• Logs get very hot and will
remain hot up to one hour after gas
supply is turned off. Handle only
when logs are cool. Turn off all
electricity to the appliance before
you install grate, volcanic stone,
vermiculite, embers and logs.
• This appliance is not designed
to burn wood. Any attempt to do so
could cause irreparable damage to
the appliance and prove hazardous
to your safety.
• If logs are not installed
according to the log installation
instructions, flame impingement
and improper combustion could
occur and result in soot and/or
excessive production of carbon
monoxide (CO), a colorless,
odorless, toxic gas.
