8
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
LENNOX HEARTH PRODUCTS • ESTATE™ SERIES WOOD-BURNING FIREPLACES • MODELS EST-36/42/50 • CARE AND OPERATION INSTRUCTIONS
Refractory Brick Panel kits
These high-quality refractory panels offer the
fine detail, texture, and large grout lines of a
true masonry fireplace. This look is achieved
without the need to field grout.

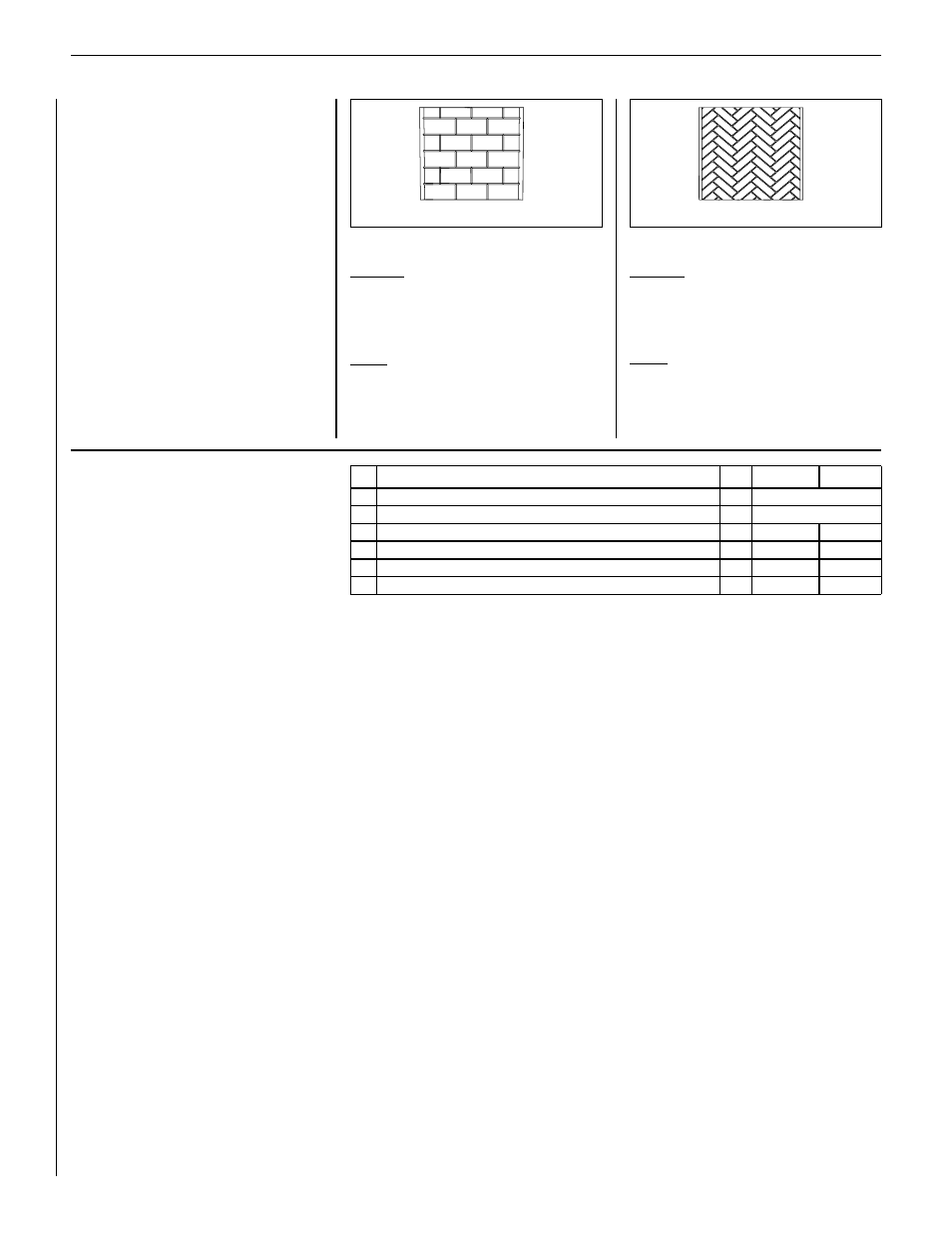

Brick panel choices include Traditional and
Herringbone patterns (illustrated at right).
Panels are available in Gray (unstained) or
stained in Creamer (ivory), Rust (terra cotta),
or Cappuccino (rosy taupe).
Kits include one bottom (floor), one rear, and
two side panels.
REPLACEMENT PARTS
Normally, all parts should be ordered through
your Lennox Hearth Products distributor or
dealer. Parts will be shipped at prevailing prices
at time of order.
When ordering repair parts, always provide the
following information:
• Fireplace Model Number
• Fireplace Serial Number
• Date of Fireplace Installation
• Part Number
• Part Description
• Quantity Required
Deluxe Refractory Panel kits - Herringbone
EST-36/42
Gray (unstained) H7961 BLK-EST36/42SH
Creamer
H8171 BLK-EST36/42SHCR
Rust H8173 BLK-EST36/42SHRT
Cappuccino H8175 BLK-EST36/42SHCP
EST-50
Gray (unstained) H7971 BLK-EST50SH
Creamer
H8165 BLK-EST50SHCR
Rust H8167 BLK-EST50SHRT
Cappuccino H8169 BLK-EST50SHCP
Herringbone Traditional
Deluxe Refractory Panel kits - Traditional
EST-36/42
Gray (unstained) H7960 BLK-EST36/42RB
Creamer
H8170 BLK-EST36/42RBCR
Rust H8172 BLK-EST36/42RBRT
Cappuccino H8174 BLK-EST36/42RBCP
EST-50
Gray (unstained) H7970 BLK-EST50RB
Creamer
H8164 BLK-EST50RBCR
Rust H8166 BLK-EST50RBRT
Cappuccino H8168 BLK-EST50RBCP
No. Description Qty. EST-36/42 EST-50
1. Log Grate, Estate Series 1 19M27
2. Grate Retainer Clip 2 H4006
3. Wire (Mesh) Pull Screen 2 16M01 H8234
4. Screen Rod 2 H3143 H2313
5. Front Refractory Retainer - LH (EST-42 only) 1 H4541* —
6. Front Refractory Retainer - RH (EST-42 only) 1 H4540* —
*Required on EST-42 models only. Will not fit EST-36 models.
NOTE: Replacement refractory panels can only be ordered as complete kits; individual
replacement panels are not available. Deluxe Refractory Panel Kit catalog and model
numbers are listed at the top of this page.
