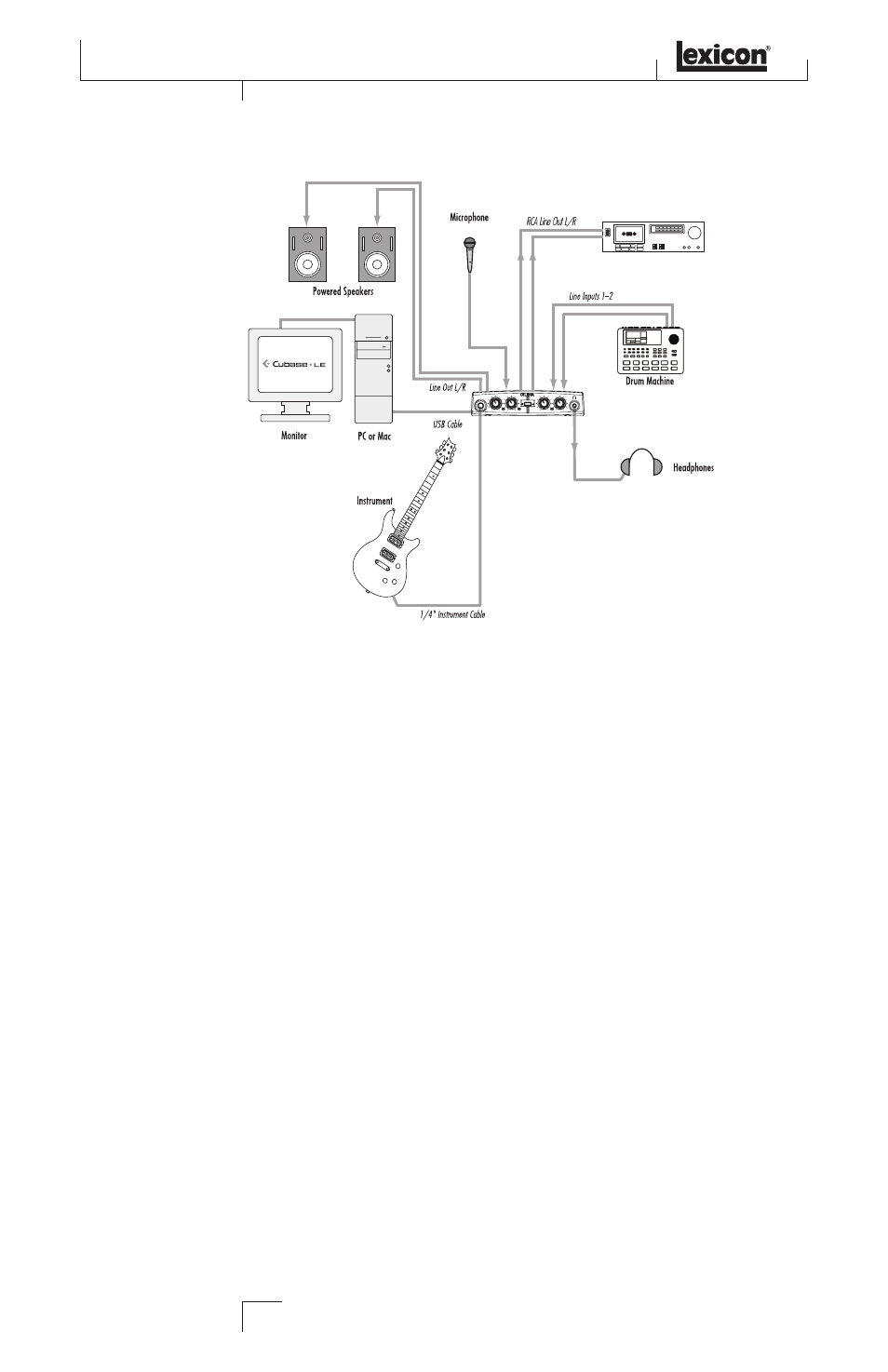

CONNECTIONS dIAgRAM
Chan 2/Mic Chan 1/Inst Monitor Mix Output Level Instrument
Monitor
Stereo Mono Peak Peak USB
¼"
Mixdown Deck
WINdOWS ® SOFTWARE SETUP
You must consult the Software Installation Guide on the included CD to ensure the
successful installation of the recording software and USB drivers.
If you haven’t already installed the Cubase LE and Lexicon ® Pantheon™ plug-in
software, please do so before continuing on to the next section. Follow the on-screen
instructions to install the USB drivers.
WINDOWS ® xP
You must install the USBdrivers after you’ve made the connection between your
computer’s USB port and the USB port of the Alpha Studio™.
Connections Diagram
16
