4 Roll, and Split Wire Guide
Solid Steel Wire, Smooth V Groove
.023-.030 (0.6-0.8mm) Solid KP1505-030S
.035 (0.9mm) Solid KP1505-035S
.040-.045 (1.0-1.2mm) Solid KP1505-045S
.052 (1.4mm) Solid KP1505-052S
1/16” (1.6mm) Solid KP1505-1/16S
Cored Steel Wire, Knurled V Groove
.030-.035 (0.8-0.9mm) Cored KP1505-035C
.040-.045 (1.0-1.2mm) Cored KP1505-045C
.052 (1.4mm) Cored KP1505-052C
1/16” (1.6mm) Cored KP1505-1/16C
7/64” (2.8mm) Hardfacing (Smooth U Groove) KP1505-7/64H
Cored or Solid Steel Wire, Knurled V Groove
.068-.072 (1.8mm) KP1505-068
5/64” (2.0mm) KP1505-5/64
3/32” (2.4mm) KP1505-3/32
7/64” (2.8mm) cored only KP1505-7/64
.120-1/8” (3.2mm) cored only KP1505-120
Aluminum Wire, Smooth U Groove
.035 (0.9mm) KP1507-035A
.040 (1.0mm) KP1507-040A
3/64” (1.2mm) KP1507-3/64A
1/16” (1.6mm) KP1507-1/16A
3/32” (2.4mm) KP1507-3/32A

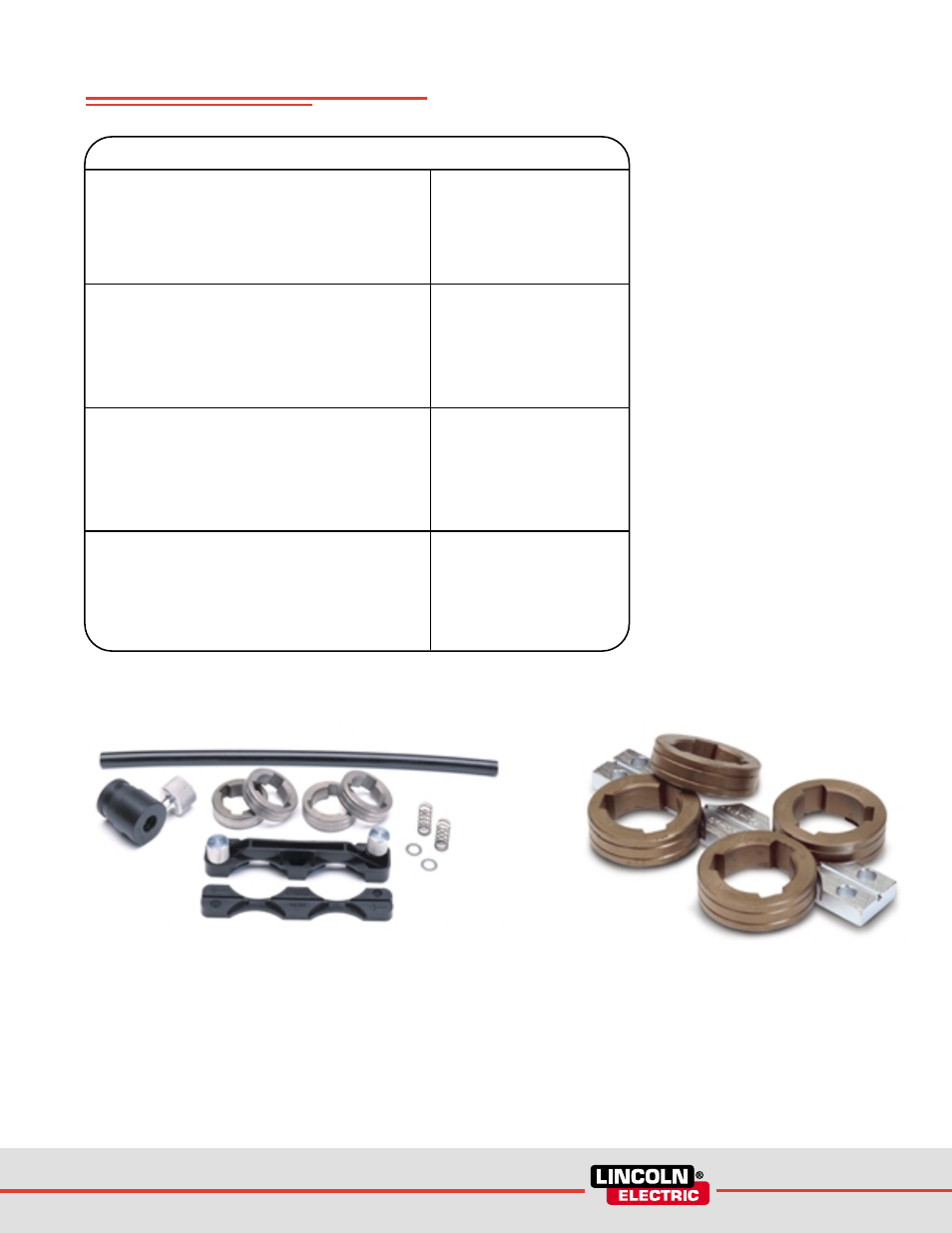

DRIVE ROLLS AND
SPLIT WIRE GUIDE KITS
KP1505
KP1507
For Aluminum Wires For Solid and Cored Wires
