5

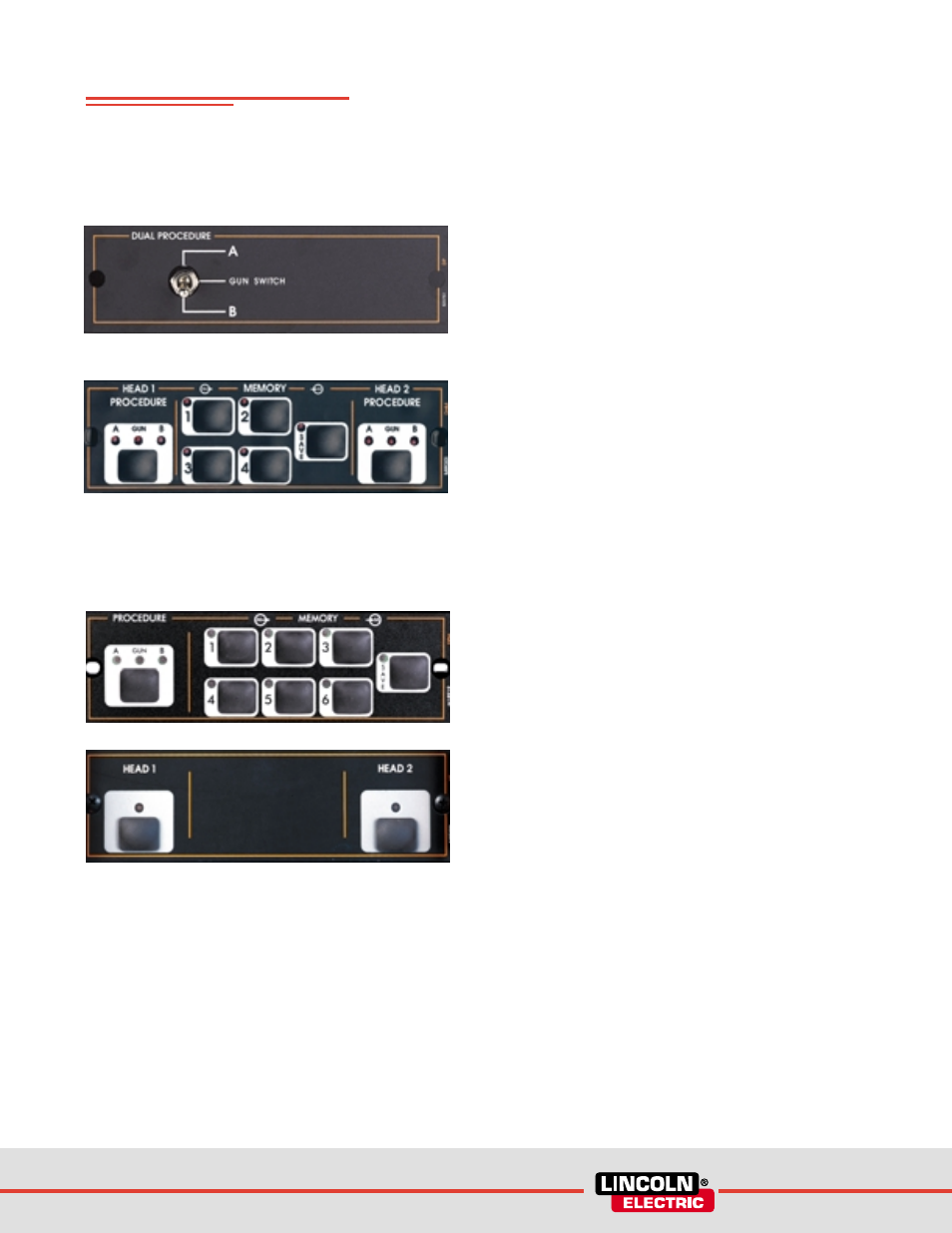

OPTIONAL
CONTROL PANELS
DUAL PROCEDURE PANEL
This panel stores two procedures in memory. The user may
select procedure “A” or “B” at the switch with a separate gun
mounted switch, or while welding with any welding gun.
Order K1542-5.
DUAL PROCEDURE / MEMORY
Six different welding procedures and processes may be stored
for recall. Includes Dual Procedure. Memories 2-6 may be
accessed with an “open air” trigger pull using any welding gun.
Order K1542-9.
DUAL PROCEDURE / MEMORY
Four welding procedures and processes may be stored for
recall. Includes Dual Procedure for each wire drive. Gun 1 and
2 have 2 procedures each, and each have access to 4 more
from memory.
Order K1542-13.
DUAL HEAD SELECT PANEL
Allows control box (K1539-2) to control two separate wire
drives (K1540-2). Comes standard with Power Feed 10 Dual .
Optional on Power Feed 10.
Order K1542-14
PROCEDURE CONTROL PANELS
POWER FEED 10
POWER FEED 10 DUAL
