4

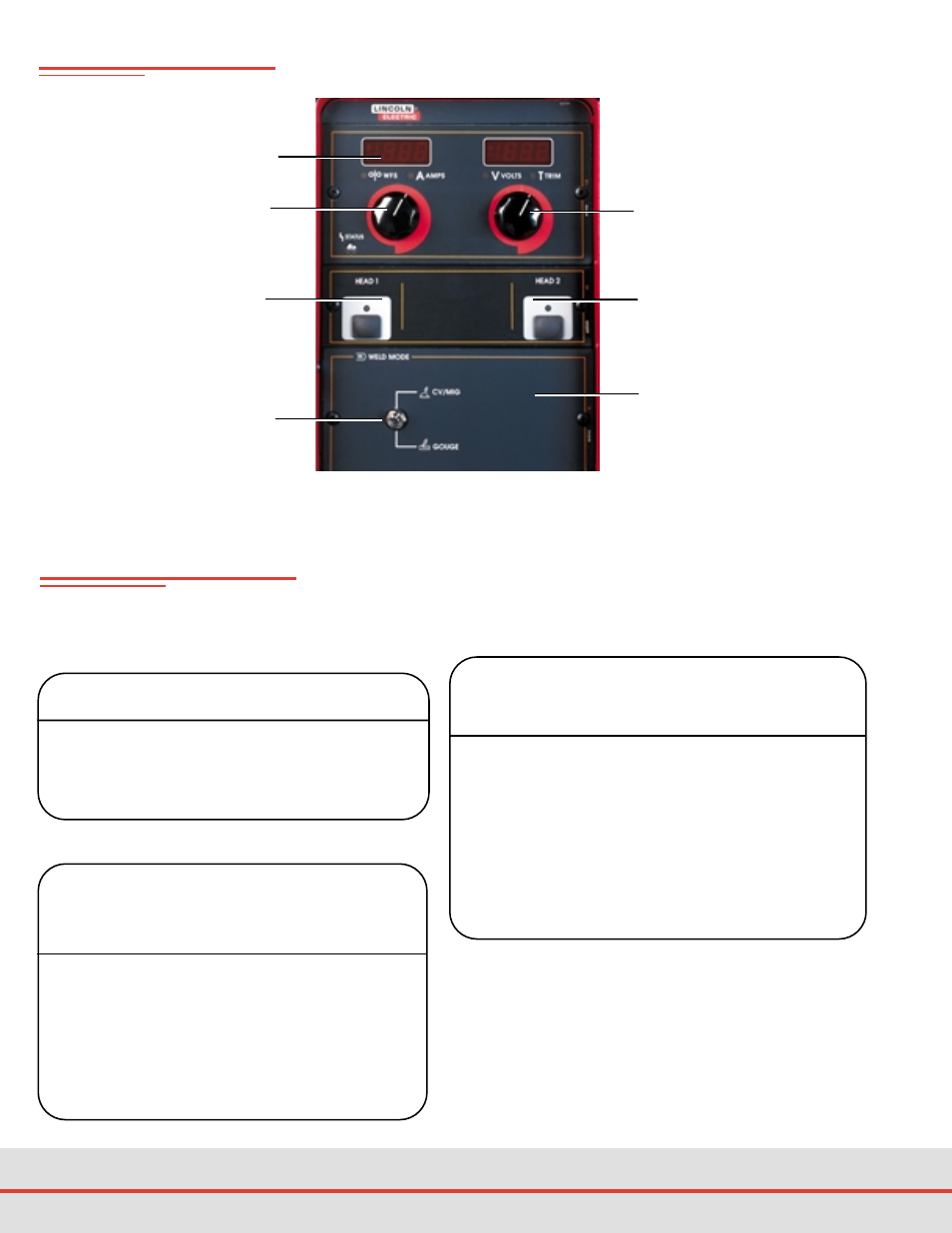

A CLOSER LOOK
Large, Easy To Read
Digital Meter
Large, Easy To Use
Voltage/ Trim
Control Large, Easy To Use
Wire Feed Speed/
Control Amperage
Dual Head Select Panel
(Standard on Power Feed 10 Dual Models)
Optional Procedure Control
Panel Area
Optional Process Control
Panel Area
Weld Mode Selector Switch
(Standard on Power Feed 10 and 10 Dual)
Power Feed 10 Dual Control Box
Power Wave 455/Power Feed 10 - Industry Standard
This is the ideal system for MIG and flux-cored welding.
Power Wave 455 power source . . . . . .K1517-5
Power Feed 10 wire feeder. . . . . . . . . .K1541-2
.045 Drive Roll Kit . . . . . . . . . . . . . . . . .KP1505-045S
Magnum 400 Gun & Cable asbly . . . . .K471-21
(1)
Gas Regulator, Adjustable . . . . . . . . . .K586-1
Power Wave 455/Power Feed 10 - Deluxe Pulse
System
For the ultimate in pulsing performance, this system
provides the options and flexibility needed for multiple
processes and pulsing.
Power Wave 455 power source . . . . . .K1517-5
Power Feed 10 wire feeder . . . . . . . . . .K1541-2
Undercarriage . . . . . . . . . . . . . . . . . . .K1570-1
Dual Procedure/Memory Panel . . . . . . .K1542-9
MSP2 Pulse Panel . . . . . . . . . . . . . . . .K1542-12
Swivel Platform . . . . . . . . . . . . . . . . . . .K1557-1
.045 Drive Roll Kit . . . . . . . . . . . . . . . . .KP1505-045S
Magnum 400 Gun & Cable asbly . . . . .K471-21
(1)
Gas Regulator, Adjustable . . . . . . . . . .K586-1
SYSTEM
SELECTION
Power Wave 455/Power Feed 10 Dual - Deluxe Pulse
System
Power for those demanding jobs. A dual feeder for running
two different wires from the same power source.
Power Wave 455 power source . . . . . . . . .K1517-5
Power Feed 10 Dual wire feeder . . . . . . . . .K1686-1
Undercarriage . . . . . . . . . . . . . . . . . . . . . . .K1570-1
MSP2 Pulse Panel . . . . . . . . . . . . . . . . . . .K1542-12
.045 Drive Roll Kit . . . . . . . . . . . . . . . . . . . .KP1505-045S
1/16” Cored Drive Roll Kit . . . . . . . . . . . . . .KP1505-1/16C
Magnum 400 Gun & Cable asbly . . . . . . . .K471-21
(1)
Magnum 550 Gun & Cable asbly . . . . . . . .K598-7
Gun Receiver Bushing for Magnum 550 . . .K1500-3
Gun Connector Kit for Magnum 550 . . . . . .K613-7
Gas Regulator, Adjustable . . . . . . . . . . . . . .K586-1
(2)
Typical MIG welding systems.
(1) Fully assembled, no gun connector required.
(2) Two required.
