Mtfp front pulldown, Right side frame – Life Fitness MTFP User Manual
Page 11
11Page 11 of 19

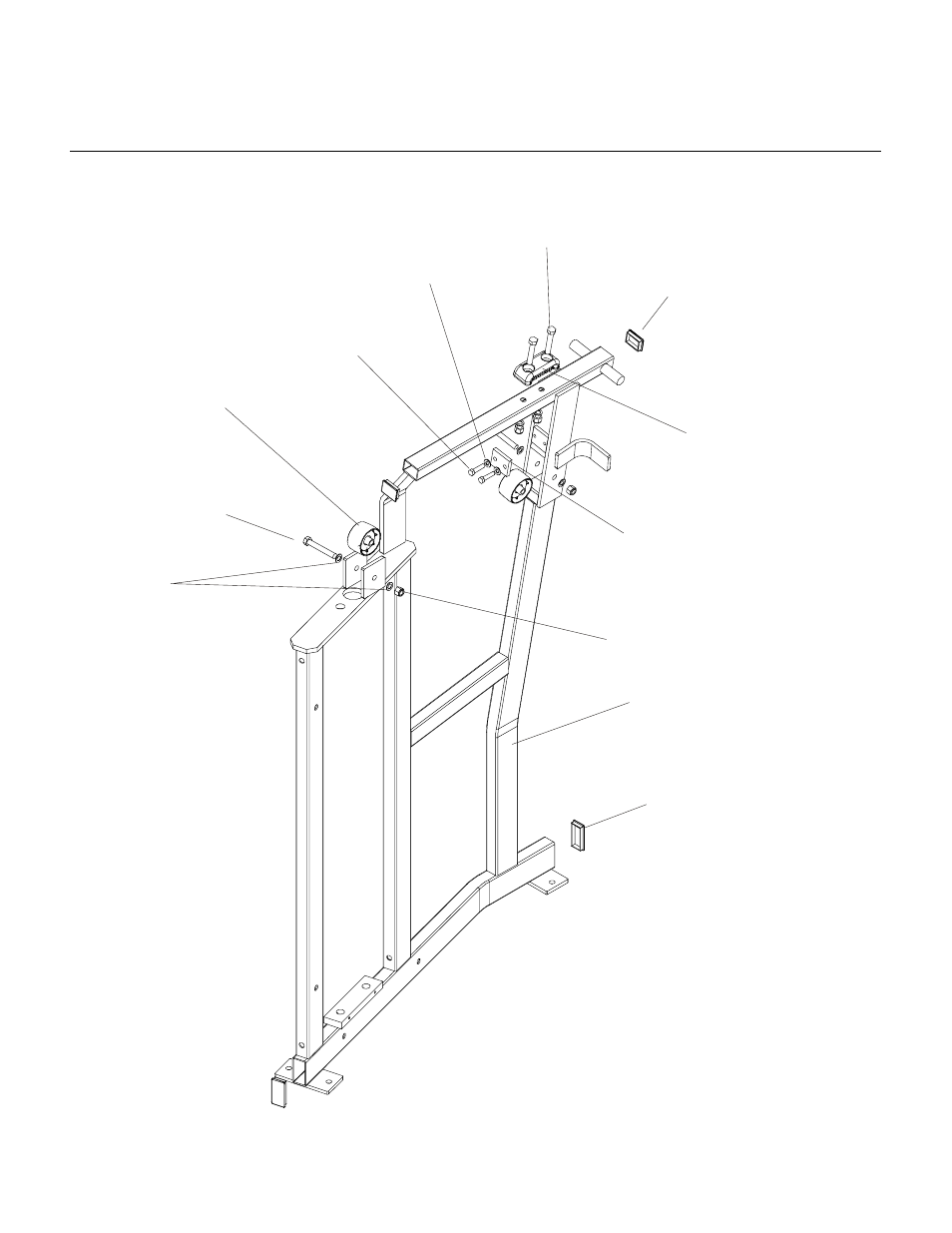

MTFP FRONT PULLDOWN
RIGHT SIDE FRAME
End Cap-2
(1-1/2x3)
0017-00042-1038
Right Side Frame
MTFP-S0001
Bolt-2
(1/2x3-1/2)
0017-00101-1577
3” Pulley Assembly-2
0017-00009-1039
Bolt-2
(3/8x1-1/2)
0017-00101-1411
Internal Lock
Washers-2
0017-00104-0377
Strap Clamp
OK50-P1021
End Cap-2
(1-1/2x2)
0017-00042-1045
Internal Lock
Washers-12
0017-00104-0379
Lock Nut-4
0017-00103-0223
Hammer Head
Small Bumper
0017-00042-1040
Bolt-2
(1/2x2-3/4)
0017-00101-1573
