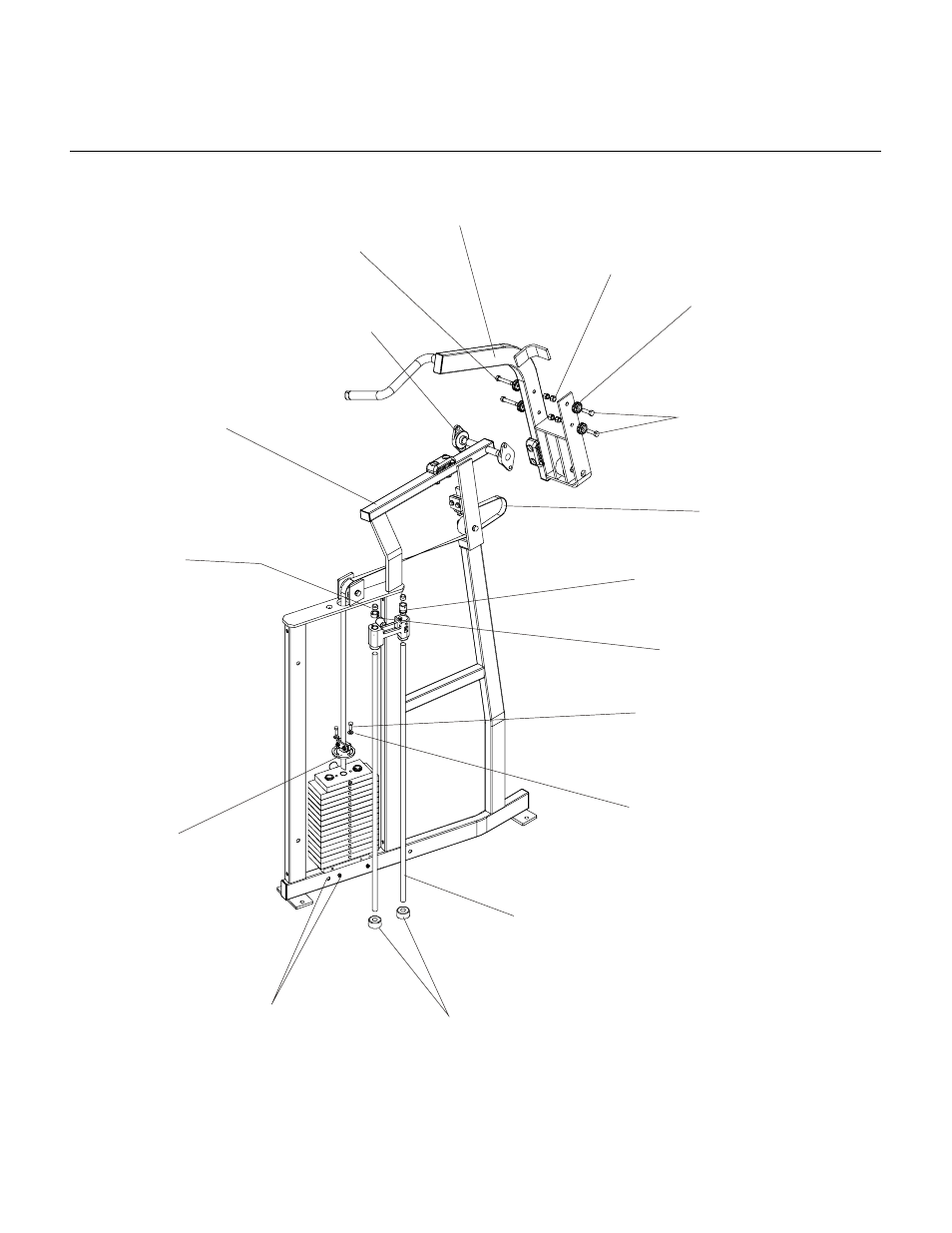

MTFP FRONT PULLDOWN
LEFT SIDE ASSEMBLY
Left Side Frame Assy
MTFP-A0002
Bearing-2
0017-00009-1034
Left Arm
MTFP-A0004
Bolts-2
(1/4x2-1/2)
0017-00101-1585
Lock Nut-2
0017-00103-0226
Weight Stack Guide-2
MTFP-P0028
Black Plastic
Rod Cap-2
0017-00042-0967
Hammer Head
Washer-4
0017-00042-1041
1/2” Lock Nut-4
0017-00103-0223
Bolt-2
(1/2x2-3/4)
0017-00101-1573
Bolt-2
(1/2x1-3/4)
0017-00101-1595
Weight Stack Donut-2
0017-00042-0993
Guide Rod Collar
0K50-P1110
150 lbs Weight
Attachment
AK50-S0025
3/4” Lock Collar
0017-00009-1019
Bolt-2
(3/8x1)
0017-00101-1464
Lock Washer-2
0017-00104-0377
Belt
0017-00033-0855
