F-8 DIAGRAMS F-8
COMMANDER 500
CONNECTION DIAGRAM:
ELECTRODE CABLE
N.B. USE VOLTMETER SWITCH TO SELECT DESIRED ELECTRODE POLARITY.
AMPHENOL
TO WORK
14 PIN
AMPHENOL
LN-25
TO WORK
ELECTRODE
6 PIN
Do not operate with panels open. before servicing. Disconnect NEGATIVE (-) BATTERY LEAD Do not touch electrically live parts.
WIRE FEEDER
TO WORK
WORK CLIP LEAD
OPTIONAL K857 OR K857-1 REMOTE CONTROL
S23991 7-21-98
WARNING
N.D. THE OUTPUT CONTROL SWITCH MUST BE IN THE "WELDING TERMINALS ALWAYS ON" POSITION . N.C. IF REMOTE OUTPUT CONTROL IS USED, PLACE LOCAL REMOTE SWITCH IN "REMOTE" POSITION.
or service this equipment. Keep guards in place. Keep away from moving parts.
N.A. WELDING CABLE MUST BE OF PROPER CAPACITY FOR THE CURRENT AND DUTY CYCLE OF IMMEDIATE AND FUTURE APPLICATIONS. SEE OPERATING MANUAL.
WITH OPTIONAL K857 REMOTE CONTROL
Only qualified personnel should install,use

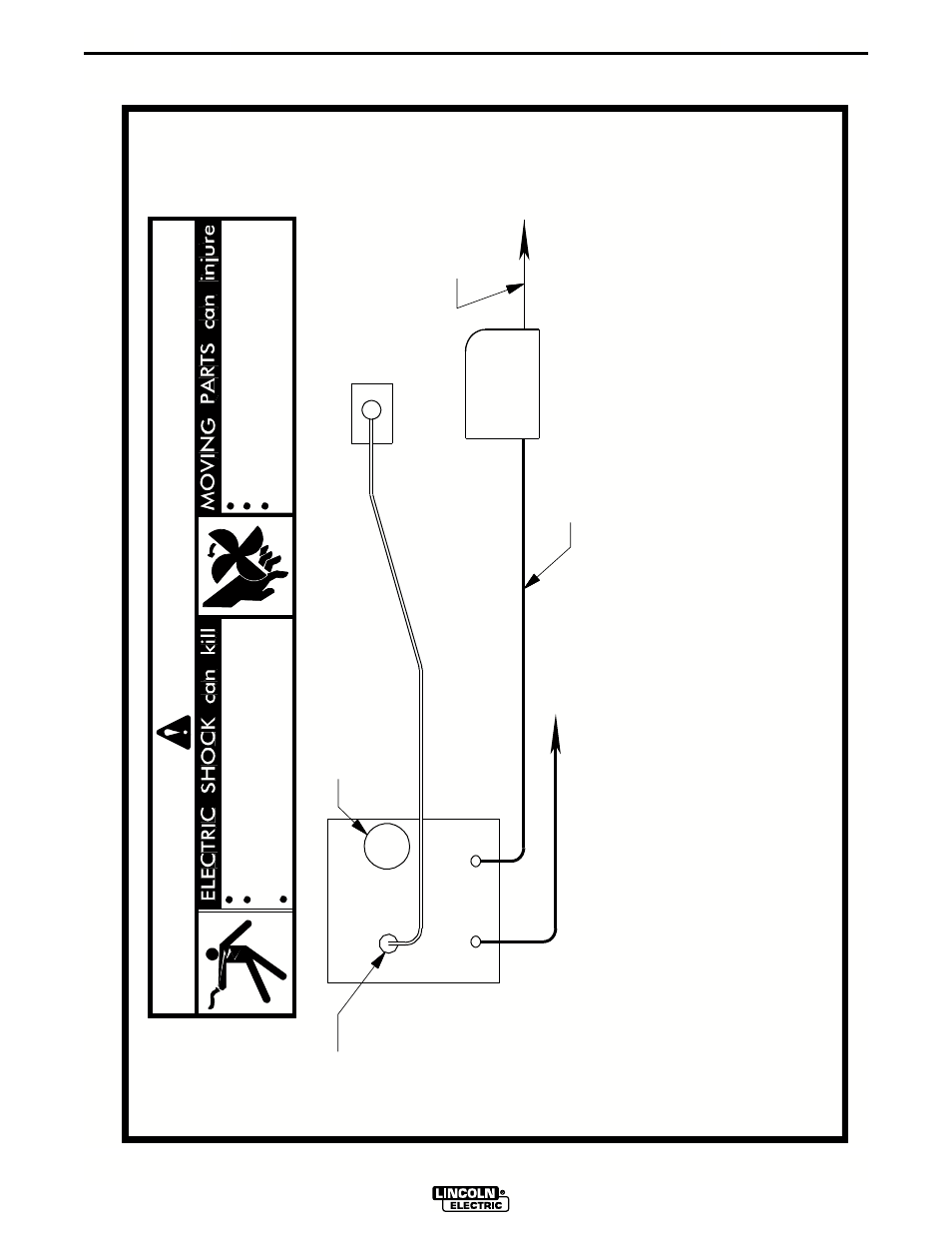

COMMANDER / LN-25 ACROSS THE ARC CONNECTION DIAGRAM
