Lochinvar Shield SNA400-125 - Manual (Page 3)

5
6
23
19
18
21
22
20 16
17
25
24
26
27
30
33
34
35
5
6
23 19
18
21
22
20
16
17
25
24 26
27
30
33
34
35
3 of 4

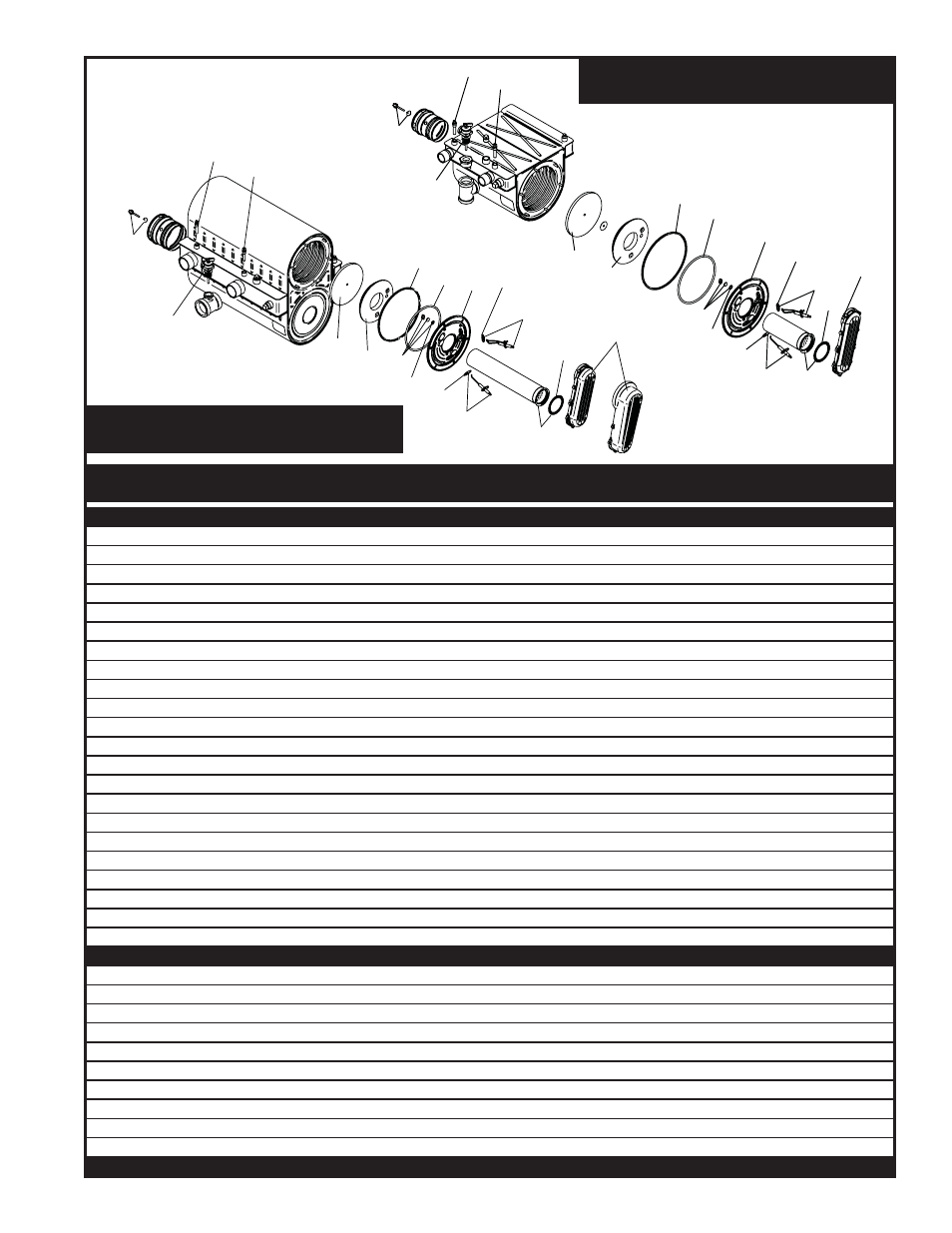

HEAT EXCHANGER ASSEMBLY
SNA 285-500
HEAT EXCHANGER ASSEMBLY
SNR 150-200
SWH-RP Rev B
ITEM
NO.
PART NO. DESCRIPTION MODEL NO.
CONTROLS
1 RLY20002 CONNECTION BOARD ALL
2 RLY20001 INTEGRATED CONTROL SNR150-200, SNA285
2 RLY20004 INTEGRATED CONTROL SNA400
2 RLY20005 INTEGRATED CONTROL SNA500
2 RLY30003 HIGH ALTITUDE INTEGRATED CONTROL SNR150-200, SNA285
2 RLY30004 HIGH ALTITUDE INTEGRATED CONTROL SNA400
2 RLY30005 HIGH ALTITUDE INTEGRATED CONTROL SNA500
3 RLY2210 USER INTERFACE CONTROL ALL
4 RLY2706 PUMP RELAY ALL
5 TST2060 WATER TEMP SENSOR, INLET ALL
6 TST2061 OUTLET SENSOR/ HIGH LIMIT ALL
7 FAN3031 FAN ASSEMBLY SNR150
7 FAN3032 FAN ASSEMBLY SNR200
7 FAN3033 FAN ASSEMBLY SNA285
7 FAN3035 FAN ASSEMBLY SNA400
7 FAN3037 FAN ASSEMBLY SNA500
8 GKT2456 GASKET/ BLOWER SNR200
8 GKT2436 GASKET/ BLOWER SNR150, SNA285-400
8 GKT2438 GASKET/ BLOWER SNA500
9 PRS20016 PRESSURE SWITCH SNR150 & SNA285
9 PRS20017 PRESSURE SWITCH SNR200 & SNA400
9 PRS2052 PRESSURE SWITCH SNA500
GAS VALVES
10 VAL3201 GAS VALVE ASSEMBLY SNR150
10 VAL3202 GAS VALVE ASSEMBLY SNR200
10 VAL3203 GAS VALVE ASSEMBLY SNA285
10 VAL30004 GAS VALVE ASSEMBLY SNA400
10 VAL3207 GAS VALVE ASSEMBLY SNA500
11 MSC2233 GAS VALVE ON/OFF SWITCH SNR150-200, SNA285
12 GKT2443 GAS VALVE GASKET SNR150-200, SNA285
12 GKT2444 GAS VALVE GASKET SNA400
13 GKT2080 AIR SHROUD GASKET SNA500
14 GAC2029 GAS CUT OFF VALVE 1X1 SNA400-500
PLEASE HAVE SERIAL NUMBER AVAILABLE WHEN ORDERING PARTS.
