NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
13
Wall Thermostat
black
5 V
Left Side of
Fireplace

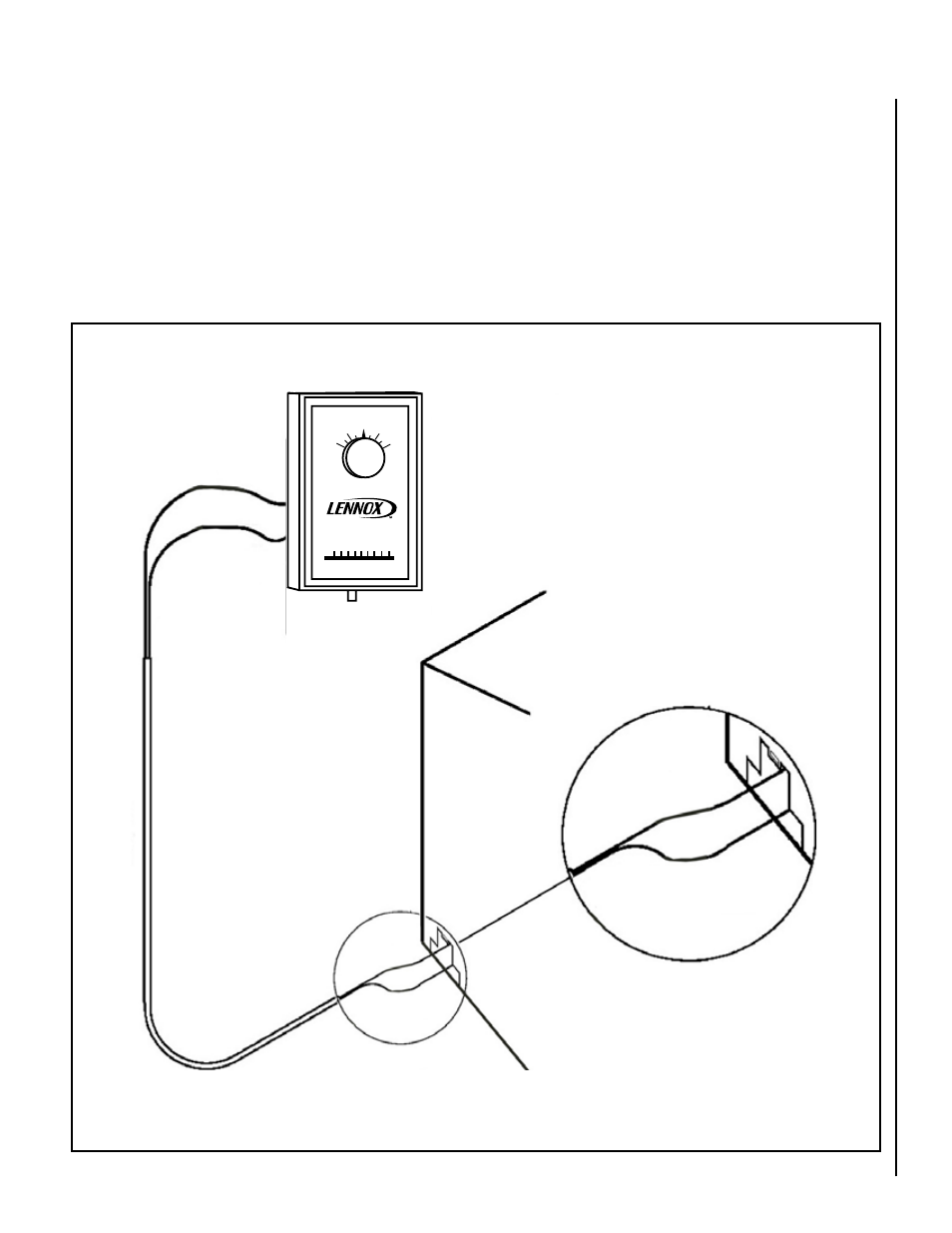

Installing Wall Thermostat
(optional kit, see Page 18)
Wire the wall thermostat prior to installing the fireplace.
WALL THERMOSTAT WIRINg (24 VAC):
Install Wall Thermostat per instructions provided with kit and per the following information:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3. Locate the the black and white wires and pull out the length needed to reach wall thermostat (15 feet max.).
4. Connect the wires to the wall thermostat as shown in Figure 25. Follow instructions provided with wall switch kit.
Figure 25
White
White
black
White
black
50 60 70 80 90
50
60 70 80
90
