NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
12
5 V
gROUND
INSIDE
POWER ON/OFF SWITCH
(ON CONTROL PANEL)
POWER ON/OFF SWITCH
(OPTIONAL WALL SWITCH)
OUTSIDE
RED
RED gREEN
1K POTENTIOMETER
5 V
gROUND
INSIDE OUTSIDE
A/D
bLACK
Ω
WHITE
gREEN
WALL
THERMOSTAT

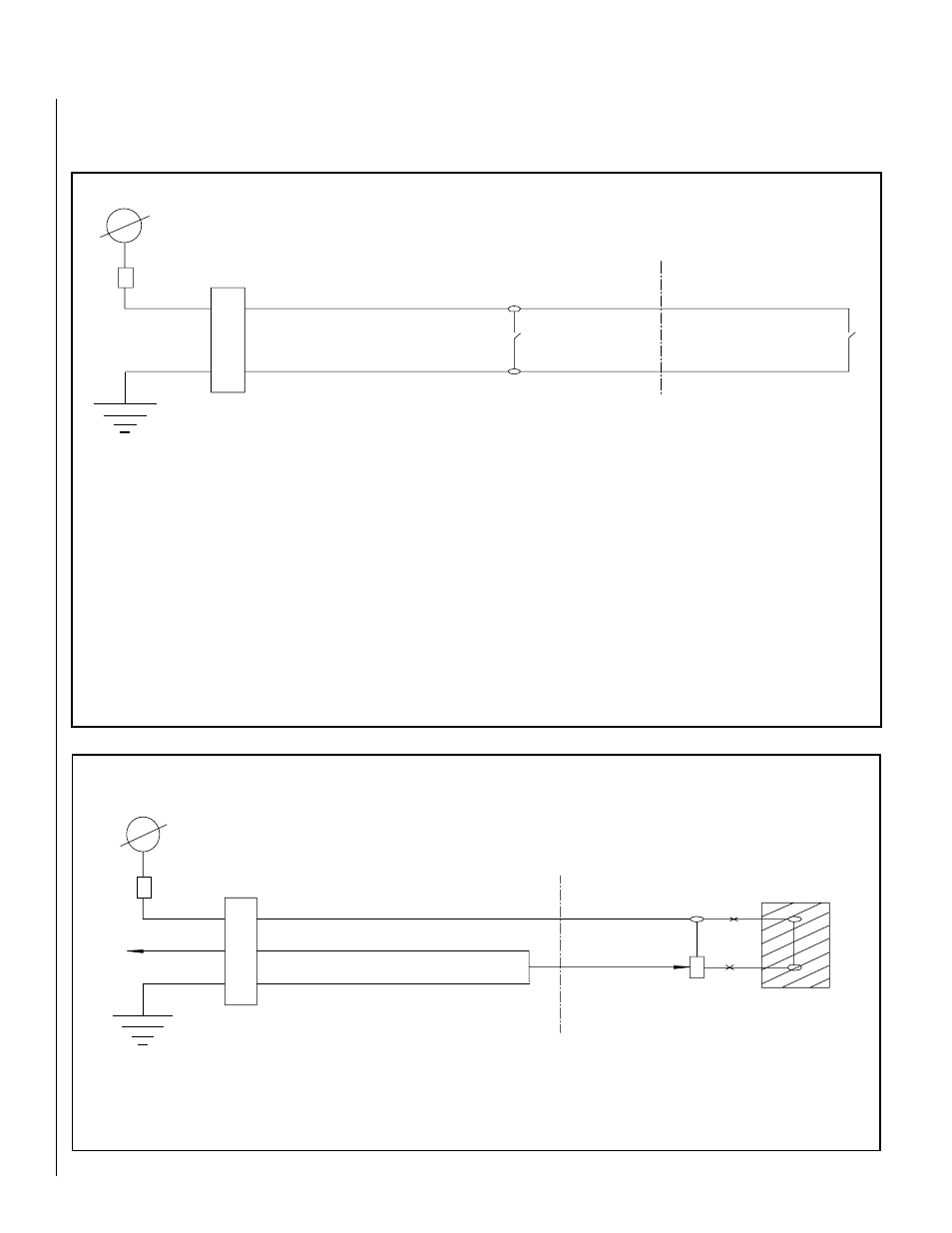

WALL THERMOSTAT & WALL SWITCH WIRINg DIAgRAMS
(optional kits, see Page 18)
• When using the manual control panel power on/off switch, the outside power on/off switch (optional wall switch kit) must be in the OFF
position.
• When using the outside power on/off switch (optional wall switch), the manual control panel power on/off switch must be in the OFF
position.
• When using the remote control (optional kit), the manual control panel power on/off switch and the outside wall switch (optional kit) must
be in the OFF position.
Figure 23
Figure 24
