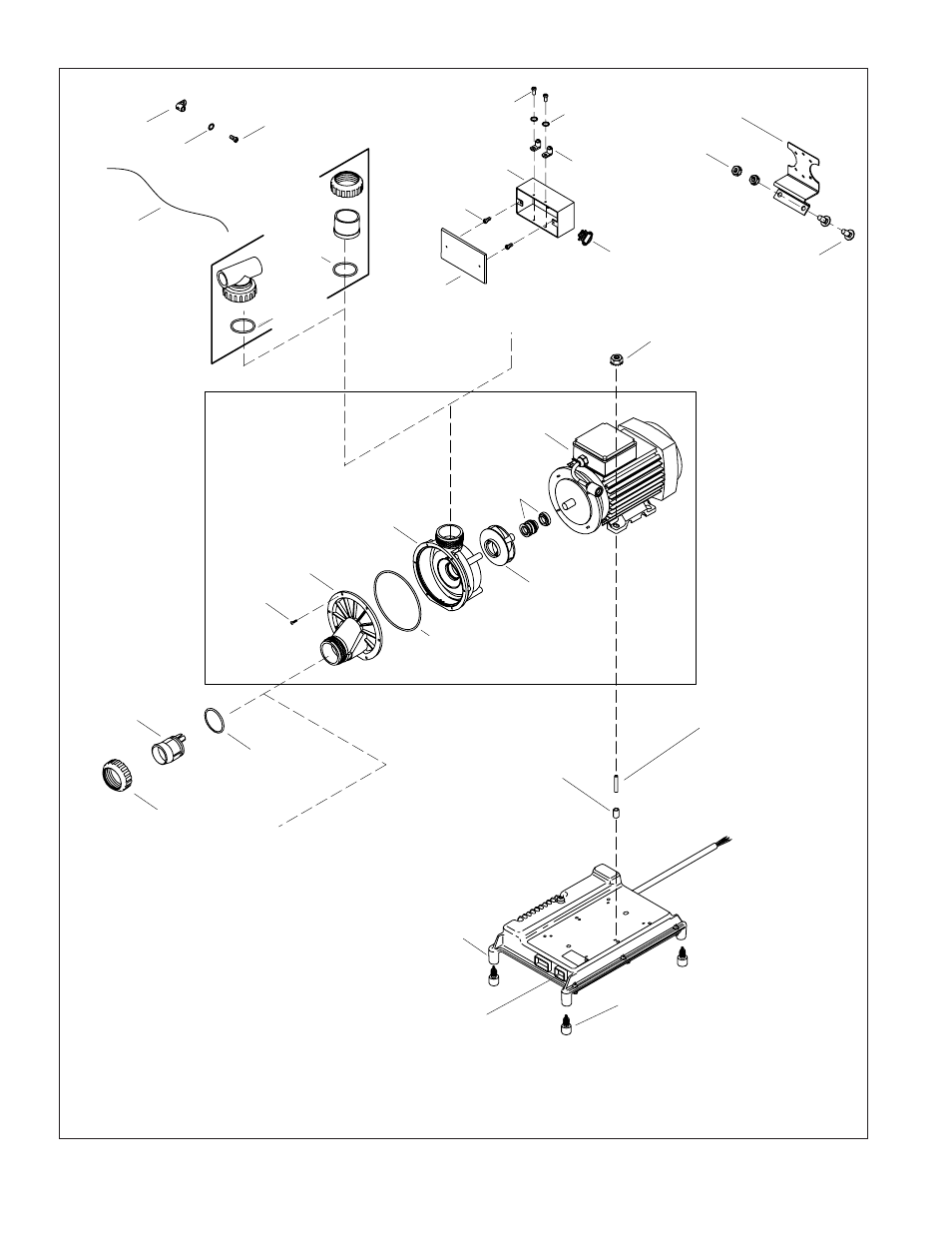

Kohler Bath Whirlpool K-812-N1 - Manual (Page 16)

1016957
Pump
1016958
Motor
1010548
Volute
1010673
Seal
1010677
Screw
1010675
O-Ring
1016960
Impeller
1010676
Cover
Control
94821
O-Ring
61845-K
1019719
Connector
1012855
Nut
60320
Screw 67065
1018964
Bracket
1019432
90153
Locknut
90154
Locknut
1019445-A [1-3/4" (4.4 cm)]
1019445-B [2-3/4" (7 cm)]
1019445-C [3" (7.6 cm)]
1019445-D [2-1/2" (6.4 cm)]
1019445-E [2" (5.1 cm)]
1019445-F [2-1/4" (5.7 cm)]
1019445-G [3-1/4" (8.3 cm)]
1019445-H [3-1/2" (8.9 cm)]
1019445-J [3-3/4" (9.5 cm)]
1019445-K [4" (10.2 cm)]
1019445-L [1-1/2" (3.8 cm)]
1019445-M [1-1/4" (3.2 cm)]
Stud
1019444-A [3/4" (1.9 cm)]
1019444-B [1-3/4" (4.4 cm)]
1019444-C [2" (5.1 cm)]
1019444-D [1-1/2" (3.8 cm)]
1019444-E [1" (2.5 cm)]
1019444-F [1-1/4" (3.2 cm)]
1019444-G [2-1/4" (5.7 cm)]
1019444-H [2-1/2" (6.4 cm)]
1019444-J [2-3/4" (7 cm)]
1019444-K [3" (7.6 cm)]
1019444-L [1/2" (1.3 cm)]
1019444-M [1/4" (6 mm)]
Spacer
1019447-A [1/4" (6 mm)]
1019447-B [1/2" (1.3 cm)]
1019447-C [3/4" (1.9 cm)]
Isolation Mount
Outlet
To Tee Heater
To In-line Heater
93893
Cover
60320
Screw
93892-A
Electrical Box
67065
Ground Lug
61776
Lock Washer
1033678
Screw
93003
Strain Relief
94821
O-Ring
61776
Lock Washer
1080775
Pump Tee 94821
O-Ring
1080774
Union Assy
Ground Lug
Copper Grounding Wire
Carriage Bolt
1018661
1018663
**Finish/color code must be specified when ordering.
(One Outlet)
(Two Outlets)
1019490-5-C 16 Kohler Co.
