The smoke alarm shall be Kidde model i12040 or approved equal. It shall be
powered by a 120VAC, 60Hz source along with a 9V battery backup. The
unit shall incorporate an ionization sensor with nominal sensitivity of .50 to
.98%ft. The temperature operation range shall be between 40˚F and 100˚F
(4˚C and 38˚C) and the humidity operating range shall be 5% - 95% relative
humidity.
The smoke alarm can be installed on any standard single gang electrical
box, up to a 4” octagon junction box. The electrical connection (to the alarm)
shall be made with a plug-in connector. A maximum of 24 Kidde devices can
be interconnected in a multiple station arrangement. The interconnect system
must not exceed the NFPA (National Fire Protection Association) limit of 18
initiation devices, of which 12 can be smoke alarms. With 18 initiating devic-
es (smoke, heat, CO, etc.), interconnected, it is still possible to interconnect
6 strobe lights and or relay modules. The unit shall provide optional tamper
resistance that deters removal of the unit from the wall or ceiling.
The alarm shall include a test button that will electronically simulate the
presence of smoke and cause the unit to go into alarm. This sequence tests
the unit’s electronics, battery and horn to ensure proper operation.
The unit shall include a piezoelectric horn that is rated at 85 decibels at
10 feet. The unit shall include Smart Hush
TM
feature that silences the unit for
approximately 7 minutes if a nuisance condition occurs. The unit shall also
include a low battery warning utilizing a brief alarm chirp every 30-40 sec-
onds for a minimum of seven (7) days.
The unit shall incorporate red and green LED indicators. The green LED
(when illuminated) indicates the presence of AC power. The red LED (located
under the TEST/Hush button) has
four modes of operation:
Standby Condition: The red LED will flash every 30-40 seconds to indicate
that the smoke alarm is operating properly.
Alarm Condition: When the
alarm senses products of combustion and goes into alarm the red LED will
flash one flash per second. The flashing LED and pulsating alarm will continue
until the air is cleared. When units are interconnected, only the red LED of
the alarm that senses the smoke or is being tested (the originating unit) will
flash. All other units in the interconnected system will sound an alarm but
their red LED’s will NOT flash.
Alarm Memory: This smoke alarm is equipped
with an alarm memory, which provides a visual indication when an alarm has
been activated. The red LED will illuminate for about 1.5 seconds every 16
seconds to indicate the memory condition.
Smart Hush TM Mode: The red LED
will illuminate for 1.5 seconds every 8 seconds, indicating the smoke alarm is
in the Smart Hush
TM
Mode.
The unit shall at a minimum meet the requirements of UL217, NFPA72,
(chapter 11), The State of California Fire Marshall, NFPA 101 (One and
two family dwellings) Federal Housing Authority (FHA), Housing and Urban
Development (HUD). It shall also include a 10-year manufacture’s limited warranty.
120V AC/DC Wire-in Smoke Alarm
Battery Backup Part Number 21006378
Model i12040

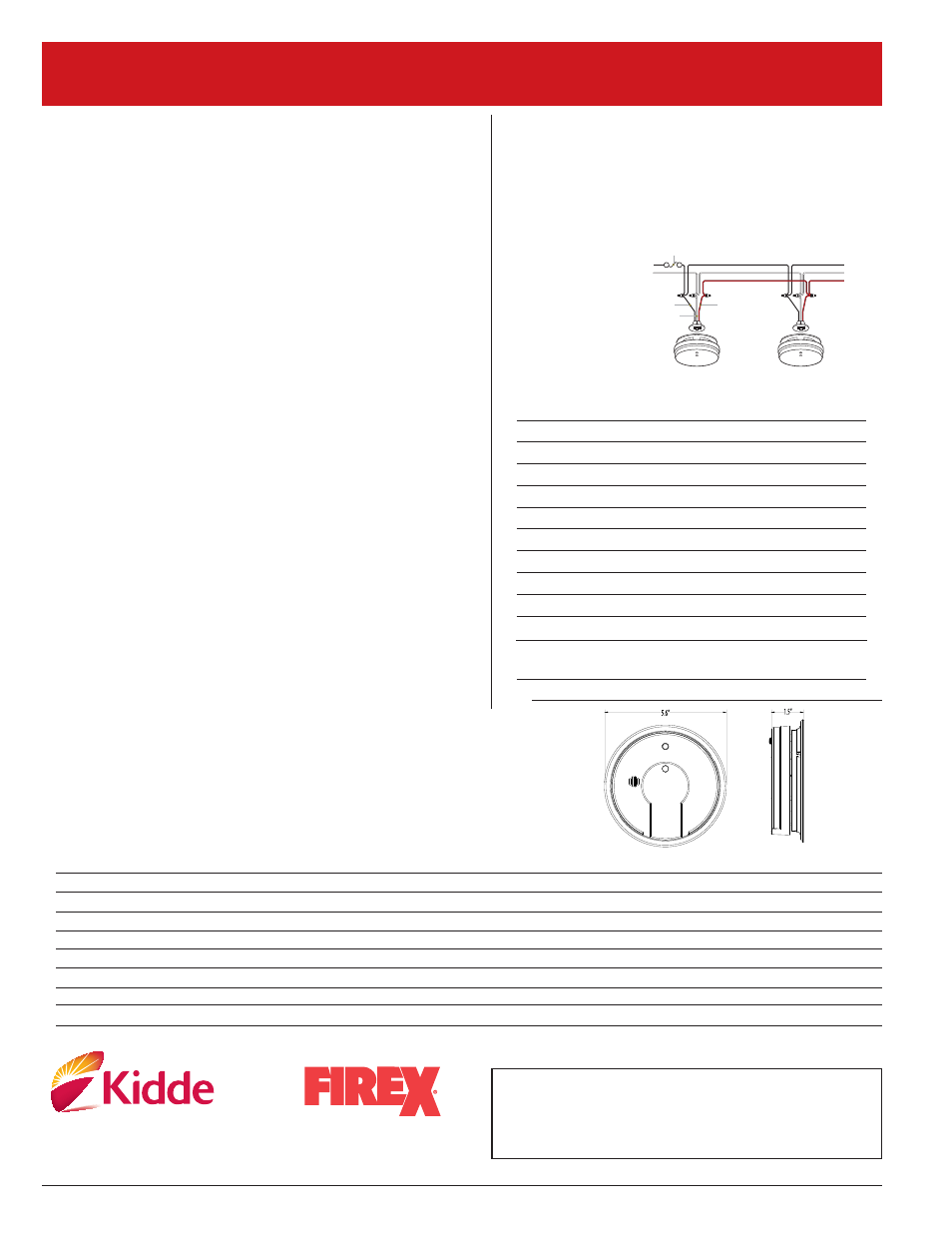

Installation of Smoke Alarm
The smoke alarm must be installed to comply with all local codes having jurisdiction
in your area. All wiring shall be in accordance with articles 210 and 300.3(B) of
the US National Electrical Code, ANSI / NFPA 70 and NFPA 72. The multiple station
interconnect wiring must be in the same raceway as the AC power wiring. In addi-
tion the resistance if the interconnect wiring shall be a maximum of 10 ohms.
Make certain all alarms are wired to a single, continuous (non-switched) power
line, which is not protected by a ground fault interrupter. A maximum of 1000 ft.
of wire can be used in the interconnect system. Use standard UL listed household
wire as required by code.
FUSE OR CIRCUIT BREAKER
BLACK
WHITE
RED
L
N
First
Alarm
Additional
Alarms
Ordering Information
Technical Specifications
Model Number: i12040
UPC: 0-47871-40381-3
Power Source: 120VAC ( 80mA) with 9V Battery Back Up
Sensor: Ionization
Audio Alarm: 85dB at 10ft
Temperature Range: 40˚F (4.4˚C) to 100˚F (37.8˚C)
Humidity Range:
5%-95% relative humidity (RH)
Size: 5.6” in diameter x 1.55” depth
Weight: .5lb
Interconnects: Up to 24 Kidde devices
Wiring: Quick-connect plug with 8” pigtails
LED: Red, 4 modes of operation
Green, indicates AC power
Warranty: 10 year limited
*Not for sale by individual unit **Includes Wiring Adapters
Ordering Dimensions Case/ Layers/ Skid
Number UPC I2F5 Pack Quantity (w x d x h inches) Weight Skid Skid Weight
N/A 0-47871-40381-3 N/A individual* 5.75 x 1.5 x 5.75 0.5 lbs N/A N/A N/A
21006378 0-47871-40381-3 100-47871-40381-0 Cut Case (6 units) 6.5 x 13.25 x 6 3 lbs 147 7 441 lbs
21006373 0-47871-09970-2 200-47871-09970-2 Bulk Pack (6 units) 6 x 10.5 x 6 3 lbs 147 7 441 lbs
21006930 0-47871-40381-3 300-47871-40381-4 Display Pallet (36 units) 20 x 24 x 40 20lbs 4 1 90 lbs
Alk. Btry 21006928 0-25417-12751-5 100-25417-12751-2 Cut Case (6 units) 6.5 x 13.25 x 6 3 lbs 147 7 441 lbs
Lith. Btry 21006929 0-25417-01276-7 100-25417-01276-4 Cut Case (6 units) 6.5 x 13.25 x 6 3 lbs 147 7 441 lbs
21006375** 0-47871-27552-6 100-47871-27552-3 Cut Case (6 units) 6.5 x 13.25 x 6 3 lbs 147 7 441 lbs
21006372** 0-47871-09969-9 100-47871-09969-3 Cut Case (3 Twin Packs) 6.5 x 13.25 x 6 3 lbs 147 7 441 lbs
