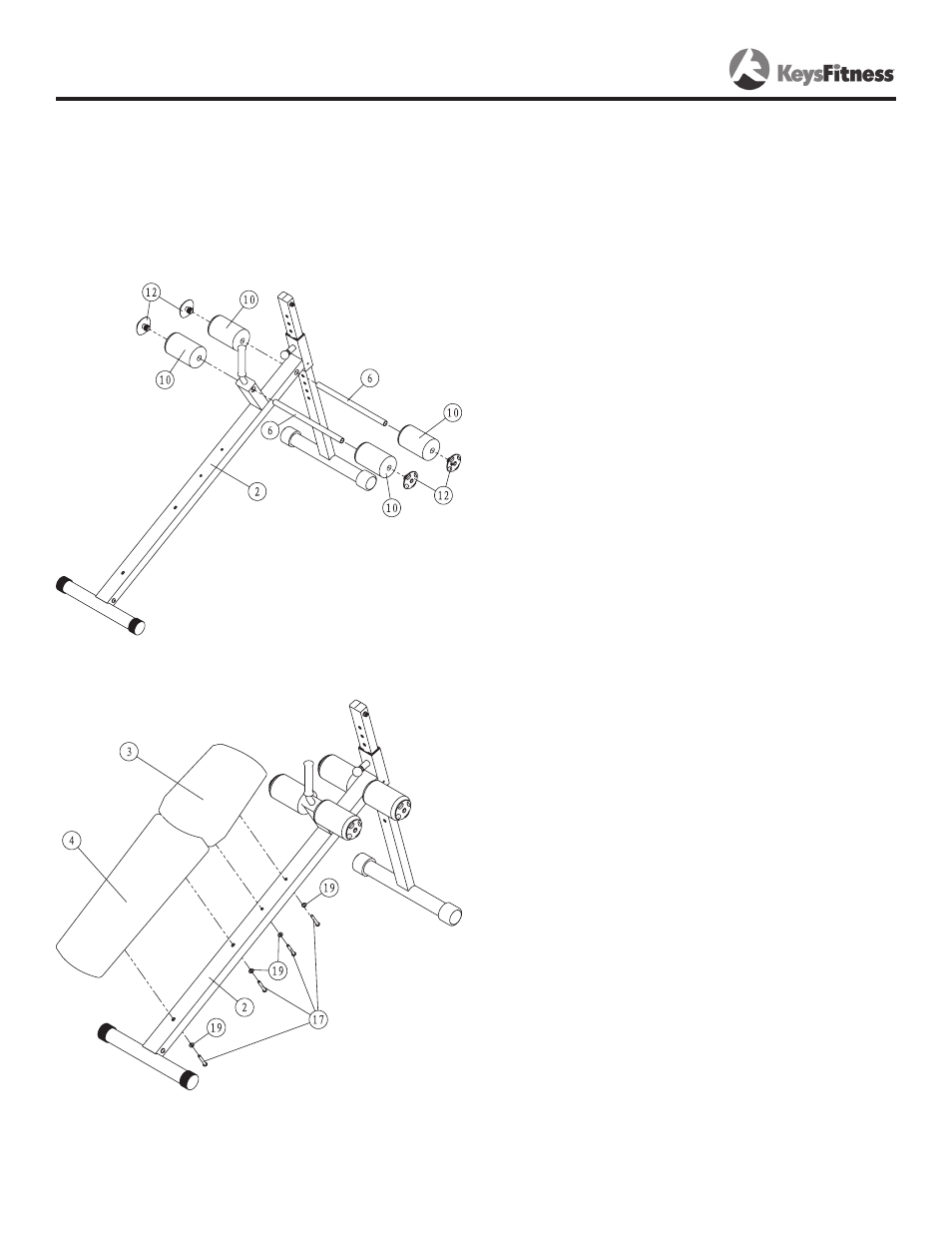

STEP 3

STEP 4

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Slide Roller Pad Tubes () into holes in

Main Frame ().

Slide Upholstered Roller Pads (10) onto

Roller Pad Tubes ().

Secure with Roller Pad Tube Caps (1).

We recommend using a rubber hammer

to place Roller Pad Tube Caps (1) onto

Roller Pad Tubes ().

Connect Seat Pads (3 and 4) to Main

Frame () with Bolts (17) and Washers

(19).

Assembly

7
