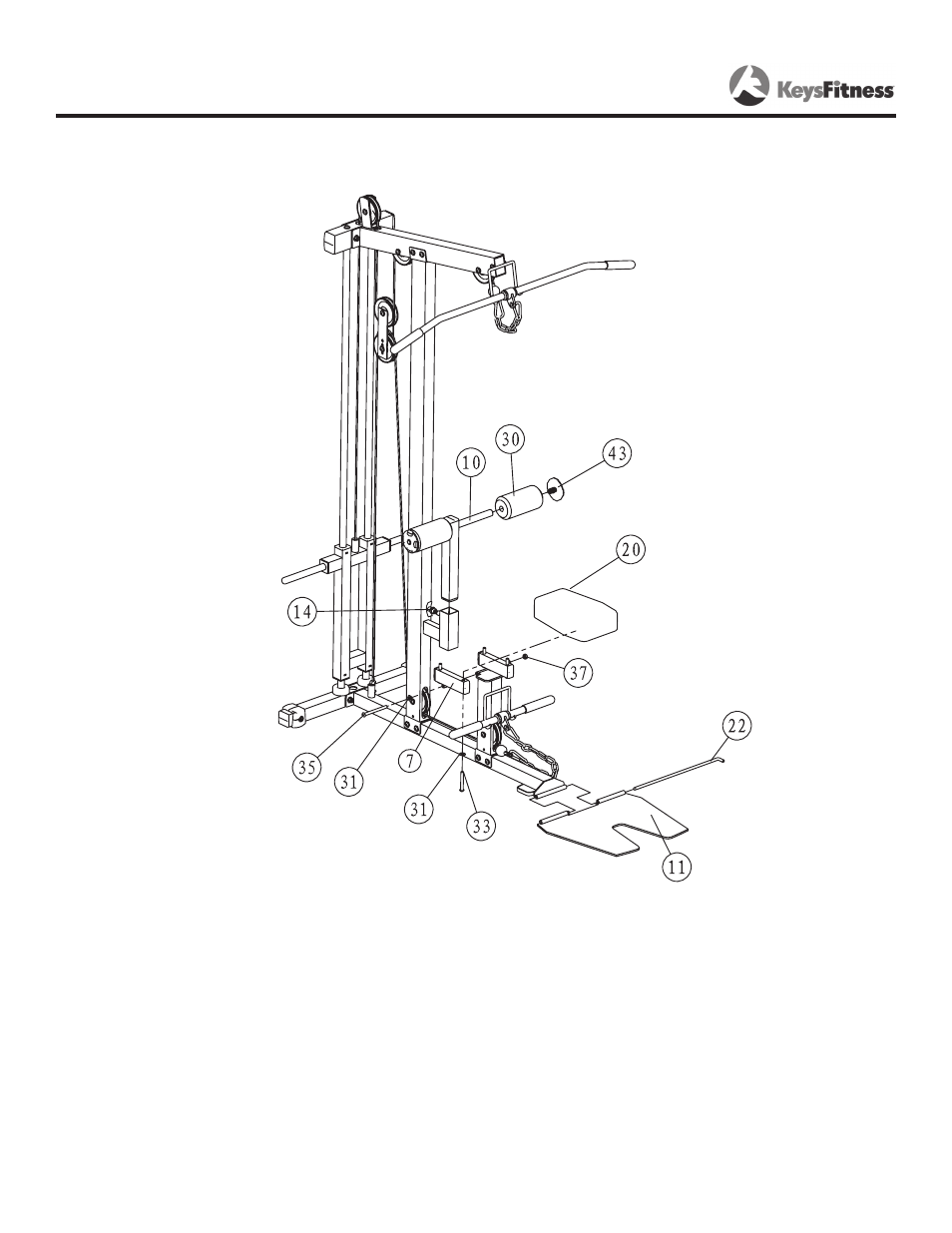

STEP 5

Complete leg hold down assembly using:

1 x (10) Roller Pad Frame

2 x (30) Foam

2 x (43) Big Plug

1 x (14) Pop Pin

Note: If needed, it is recommended that a rubber mallet be used to

secure Big Plug (43).

Complete Seat Pad (20) assembly using:

2 x (7) Seat Pad Tube

1 x (35) Bolt

5 x (31) Washer

4 x (33) Bolt

Slide L Pin (22) through holes in Foot Plate (11) and Main Base (1).

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
