Step 4, Assembly – Keys Fitness KF-LATM User Manual
Page 8

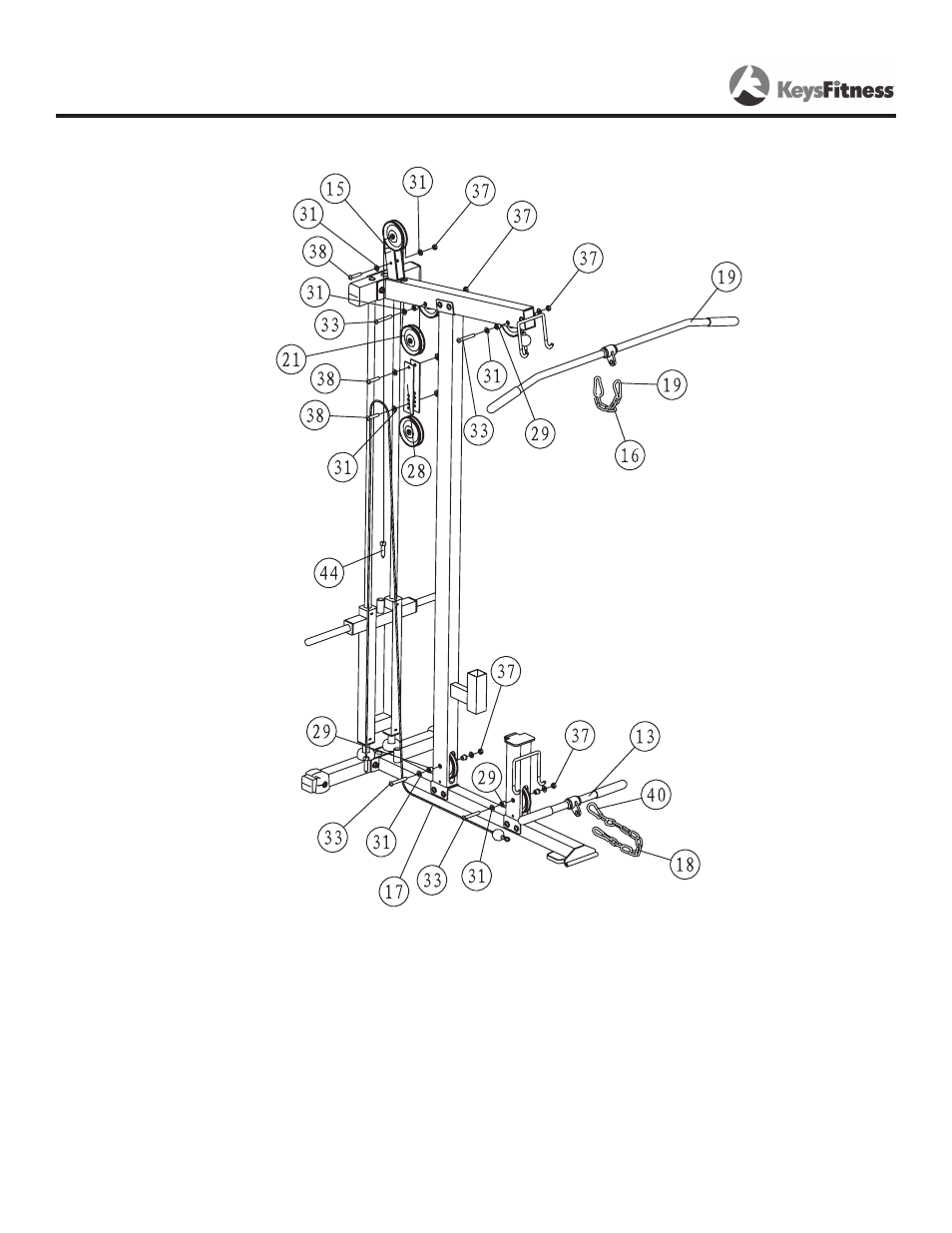

STEP 4
Complete Cable (15,17) assembly using:
7 x (21) Pulley
4 x (33) Bolt
14 x (31) Washer
8 x (29) Pulley Spacer
7 x (37) Nylon Lock Nut
3 x (38) Bolt
2 x (28) Pulley Plate
Attach Long Bar (19) and Short Bar (13) as shown.
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
Assembly
