NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

STEP 3

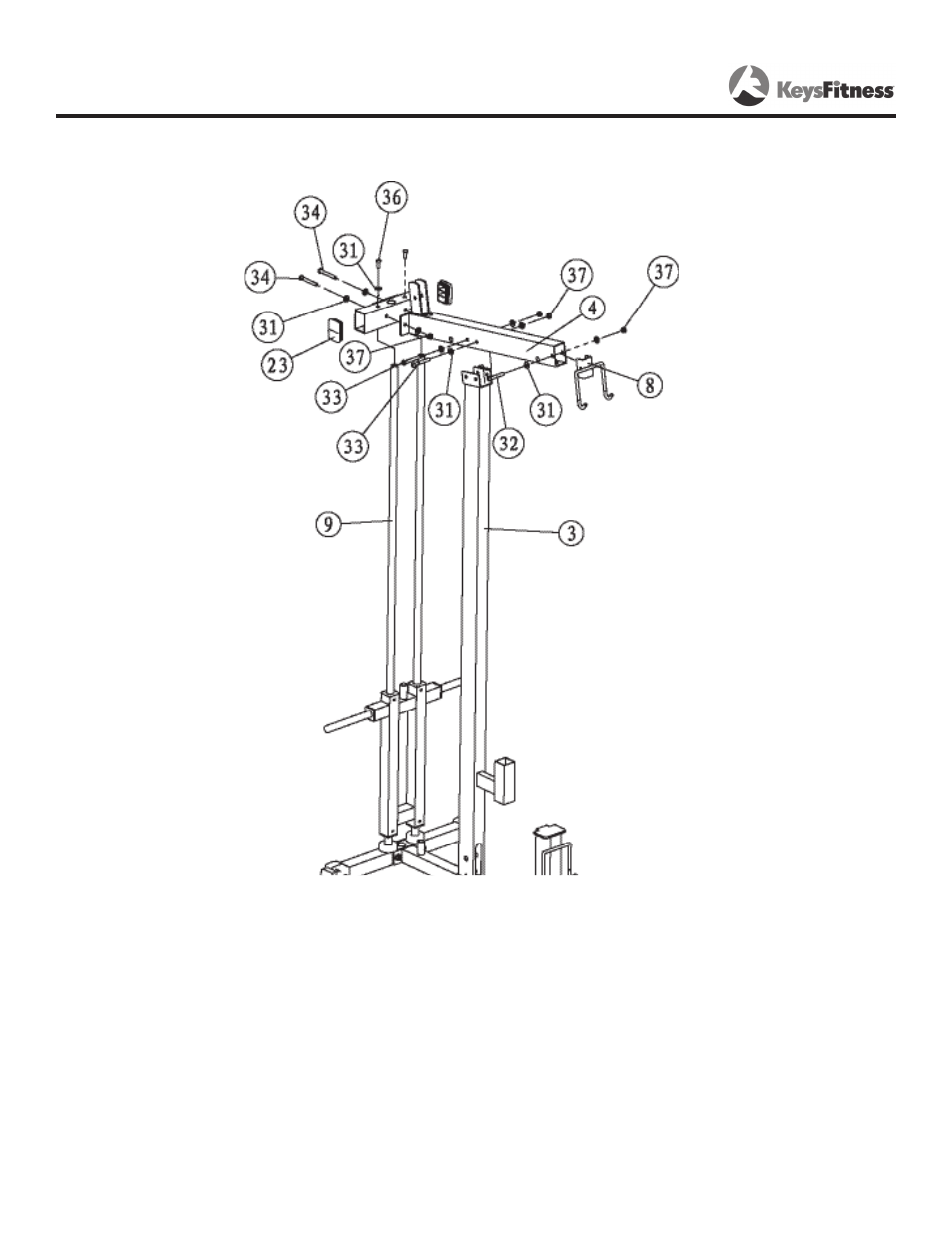

Slide Top Cross Frame (5) on top of Guide Rods and secure

using:

2 x (36) Bolt

2 x (31) Washer

Attach Top Frame (4) to Upright (3) and Top Cross Frame (5)

using:

2 x (33) Bolt

2 x (34) Bolt

8 x (31) Washer

4 x (37) Nylon Lock Nut

Attach Bar Holder (8) to Top Frame (4) using:

1 x (32) Bolt

2 x (31) Washer

1 x (37) Nylon Lock Nut
