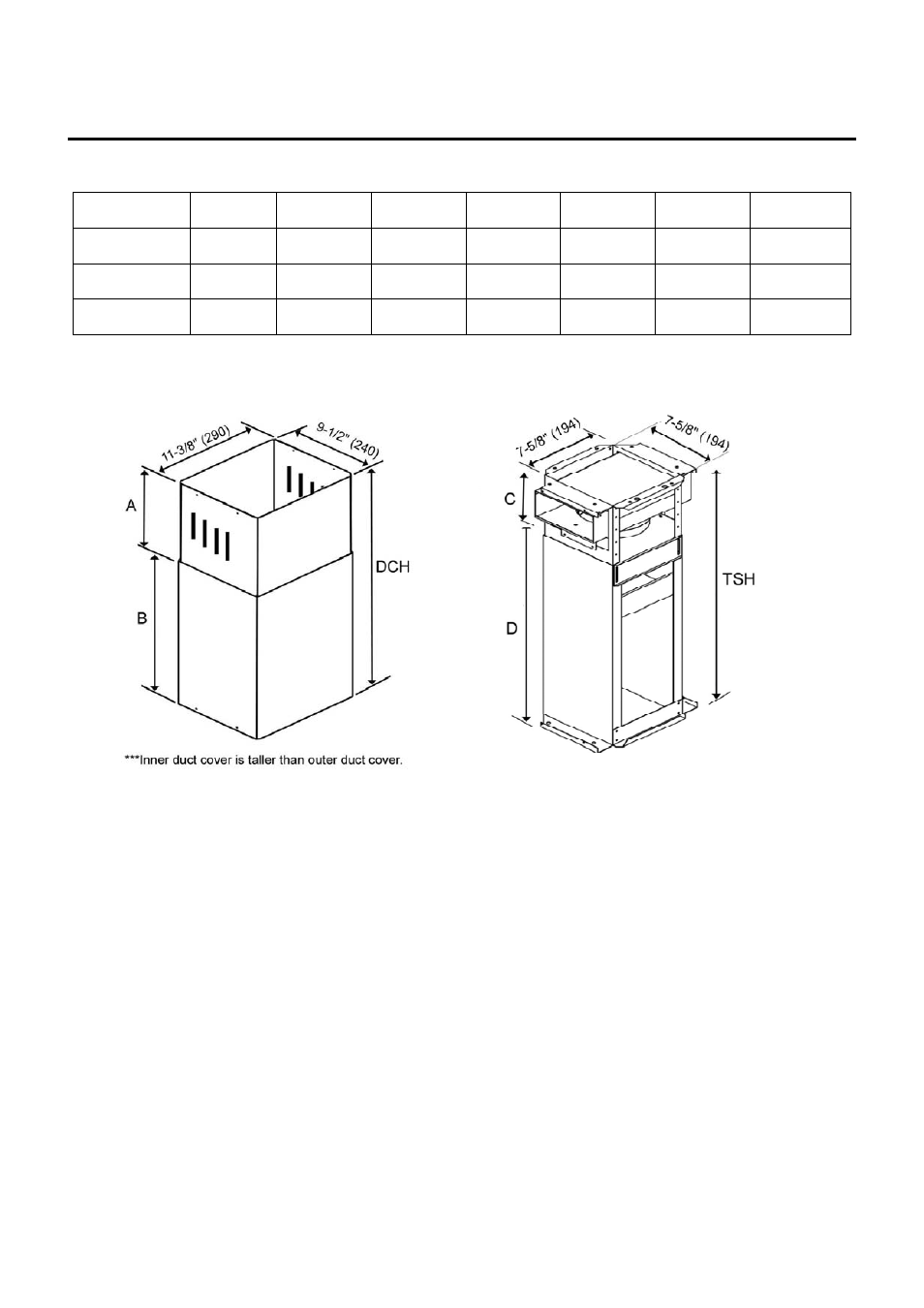

RECIRCULATING KIT (Sold Separately)
MODEL NO. A B DCH C D TSH MAX. HT.
INTSALLED
IS123DCD 18-1/8”
(460)
19-1/4”
(490)
37-3/8
(950)
14-5/8”
(370)
22-5/8”
(575)
37-1/4”
(946)
36-3/8”
(925)
IS123-16DCD 9-1/4”
(235)
8-1/4”
(210)
17-1/2”
(445)
- - 16”
(405)
16”
(405)
IS123-59DCD 30-1/4”
(770)
29”
(735)
59-1/4”
(1505)
25-5/8”
(650)
33-5/8”
(854)
59-1/4”
(1505)
58-1/2”
(1485)
DUCT COVER TELESCOPIC STACK
