CHAPTER 2 PRIOR TO SET-UP
2-2
$
⁄
¤
#
%
^
)

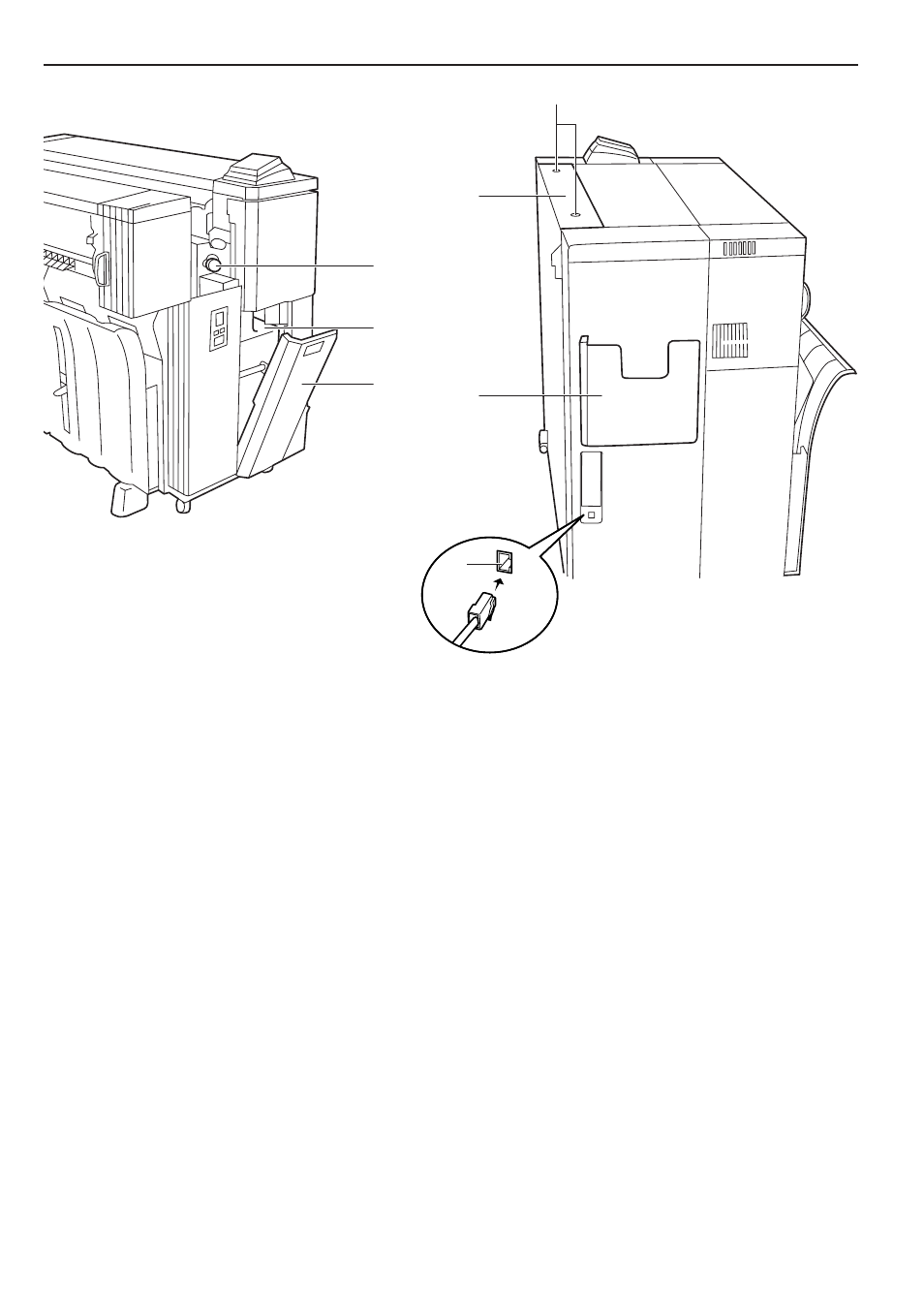

# Network interface connector
Use to connect the printer to the LAN (Local Area Network) with a
10BASE-T or 100BASE-TX cable.
$ Right cover
Open to replace the waste toner tank.
% Toner replenishing slot
Open to add toner.
^ Toner replenishing slot screw
Turn to open the toner replenishing slot.
& Roll unit (paper source 1: option)
* Roll unit (paper source 2)
( Roll unit (paper source 3)
) Operation Guide box
Keep the Operation Guide here.
⁄ Waste toner tank
¤ Paper transport knob
Operate this knob in case of a paper jam.
‹ Dew prevention heater switches
Switches for paper sources 1, 2, and 3.
› Main heater switch
If this switch is turned off, the dew prevention heaters will be
turned off even if the dew prevention heater switches inside the
front cover are on.
fi Flanges
Set these on both sides of the paper roll.
fl Release levers
‡ Flange guides
