REVERSE NORMAL
PHASE BAND REJECT
–12dB –6dB OFF
B.M.S.
+12dB OFF REMOTE
INFRASONIC
25Hz 15Hz ON OFF
GND
LINE OUT EXT.AMP.CONT. LINE IN
L
R
L
R
25 25 25
SPEAKER
OUTPUT
POWER IN
P.CON BATT. GND
FUSE(25Ax3)
%
& ^
CENTER UNIT
(CD receiver, etc.)
Left input
Right input
RCA cable ground terminal
English
9

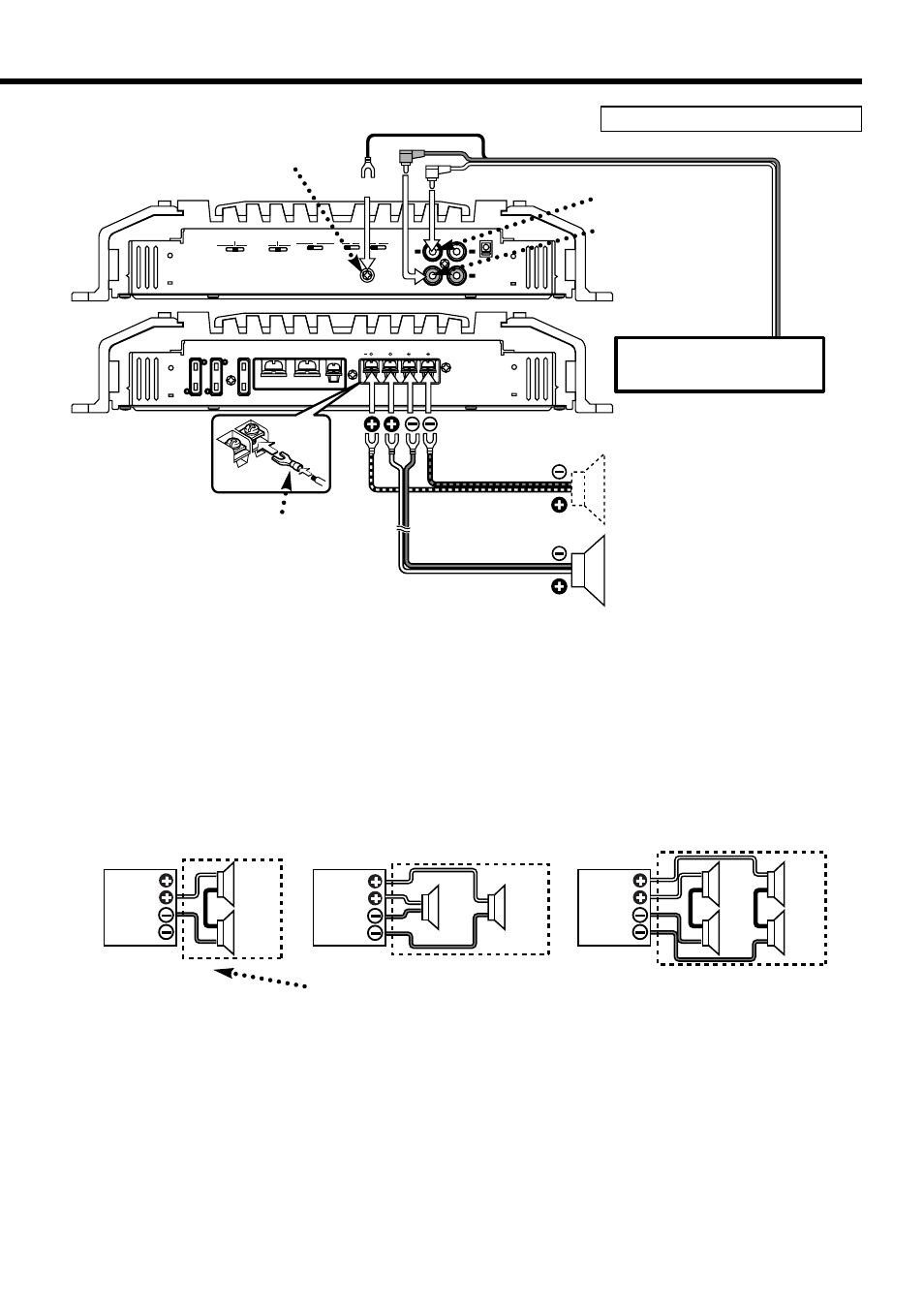

■ RCA cable and speaker wire connection
RCA cable*
Lead terminal*
■ Speaker Selection
• The rated input power of the speakers that are going to be connected should be greater than
the maximum output power (in Watts) of the amplifier. Use of speakers having input power
ratings that are less than the output power of the amplifier will cause smoke to be emitted as
well as damage.
• Use speakers that have an impedance of 1
Ω or greater. When more than one set of speakers
are going to be used, calculate the combined impedance of the speakers and then connect
suitable speakers to the amplifier.
4
Ω 4
Ω
2
Ω
8
Ω
8
Ω
2
Ω
4
Ω
4
Ω
4
Ω
4
Ω
4
Ω
Combined impedance
* : Commercially available parts
Subwoofer (L + R)
