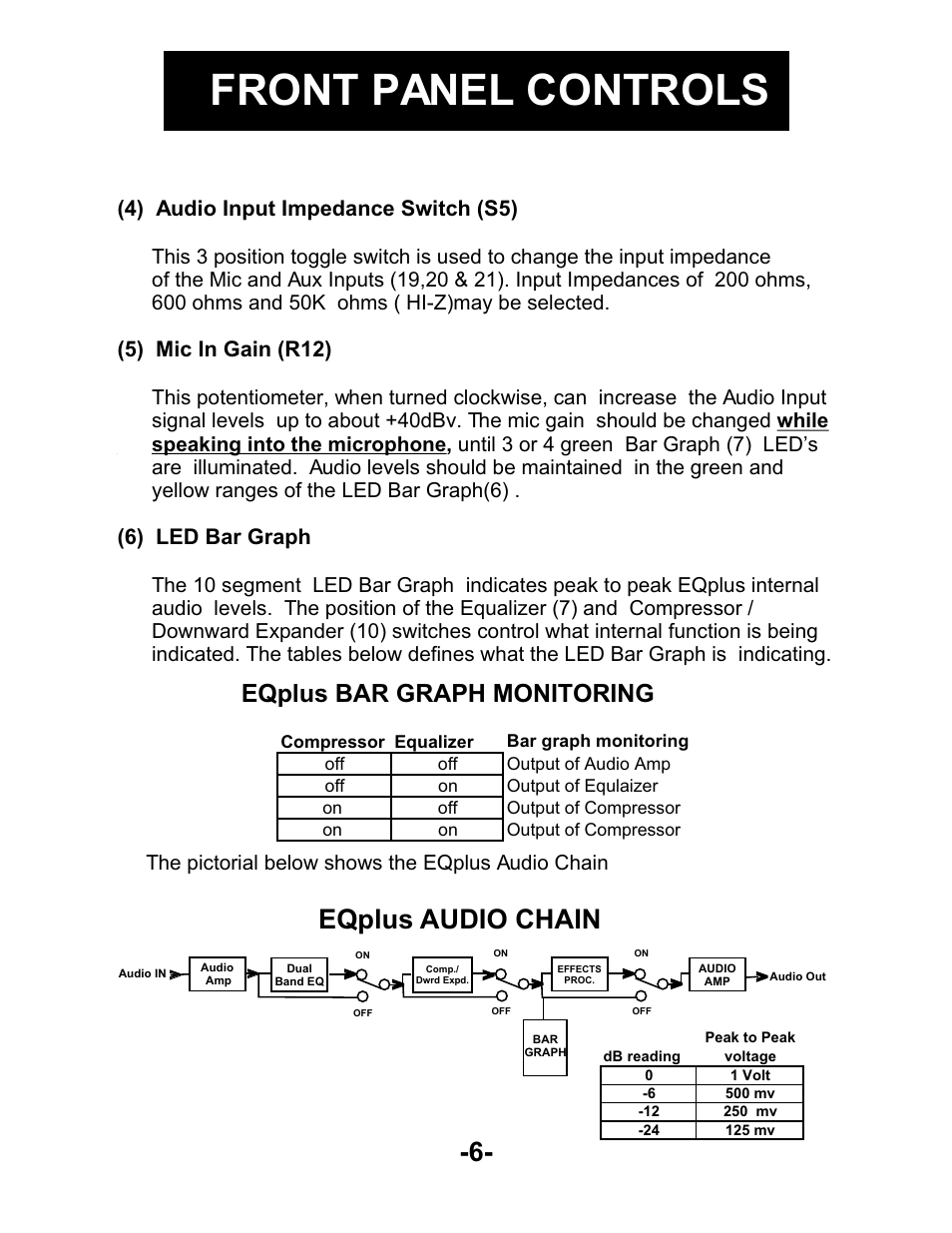

Front panel controls, Eqplus audio chain, Eqplus bar graph monitoring – Kenwood AUDIO PROCESSOR User Manual

Page 6: 4) audio input impedance switch (s5), 5) mic in gain (r12), 6) led bar graph

Front panel controls, Eqplus audio chain, Eqplus bar graph monitoring | 4) audio input impedance switch (s5), 5) mic in gain (r12), 6) led bar graph | Kenwood AUDIO PROCESSOR User Manual | Page 6 / 21 Front panel controls, Eqplus audio chain, Eqplus bar graph monitoring | 4) audio input impedance switch (s5), 5) mic in gain (r12), 6) led bar graph | Kenwood AUDIO PROCESSOR User Manual | Page 6 / 21
