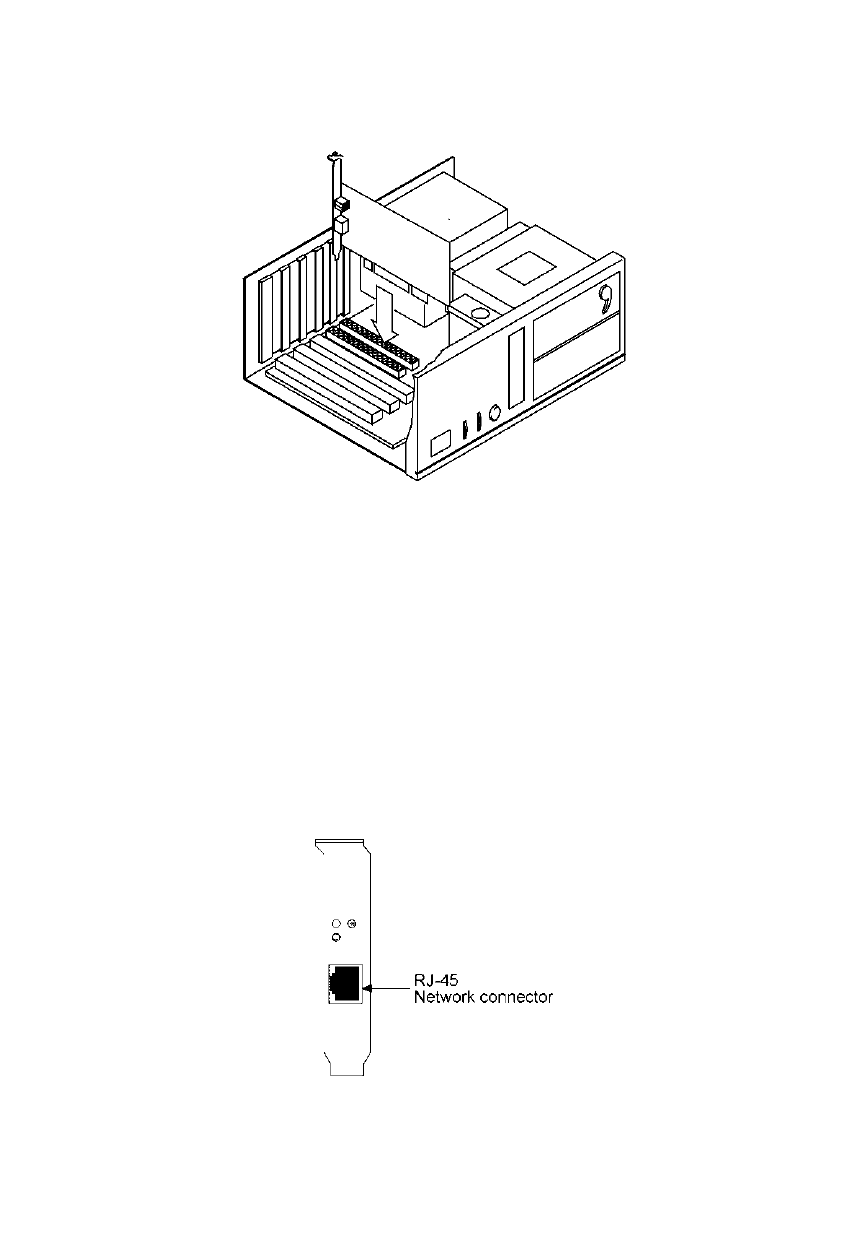

Figure 2-1 Inserting the Adapter into the PCI Slot
2.2 Connecting to the Network
This section describes how to connect 10 Mbps or 100 Mbps net-
work cables to the adapter. The rear bracket of the Fast Ethernet
adapter contains one RJ-45 connector. The connector is used for
either 100Mbps 100BASE-TX connection or 10Mbps 10BASE-T con-
nection. The adapter can sense the connection speed and switch to
appropriate operation automatically.
Figure 2-2 Network Connector
