10 Mbps Connection
For 10BASE-T Ethernet networks, the Fast Ethernet adapter uses
Category 3, 4, or 5 UTP cable. To establish a valid 10 Mbps connec-
tion, the cable must be connected to a 10BASE-T hub. Connect the
network cable as follows:
1. Make sure that the plug on the cable is wired appropriately for a
standard 10BASE-T adapter.
2. Align the RJ-45 plug on the end of the UTP cable with the notch
on the adapter's connector and insert it into the adapter connec-
tor as shown in Figure 2-3.

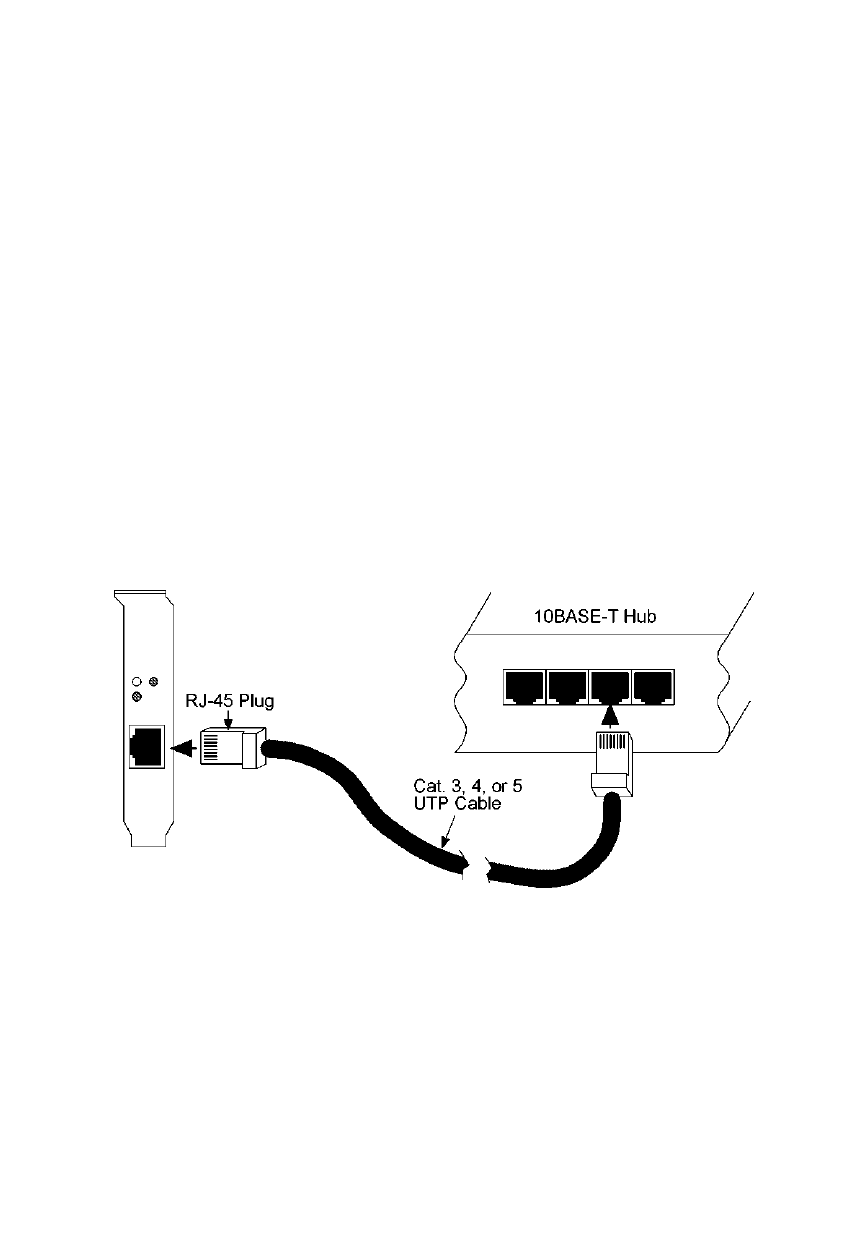

Figure 2-3 Connecting 10BASE-T Cable
