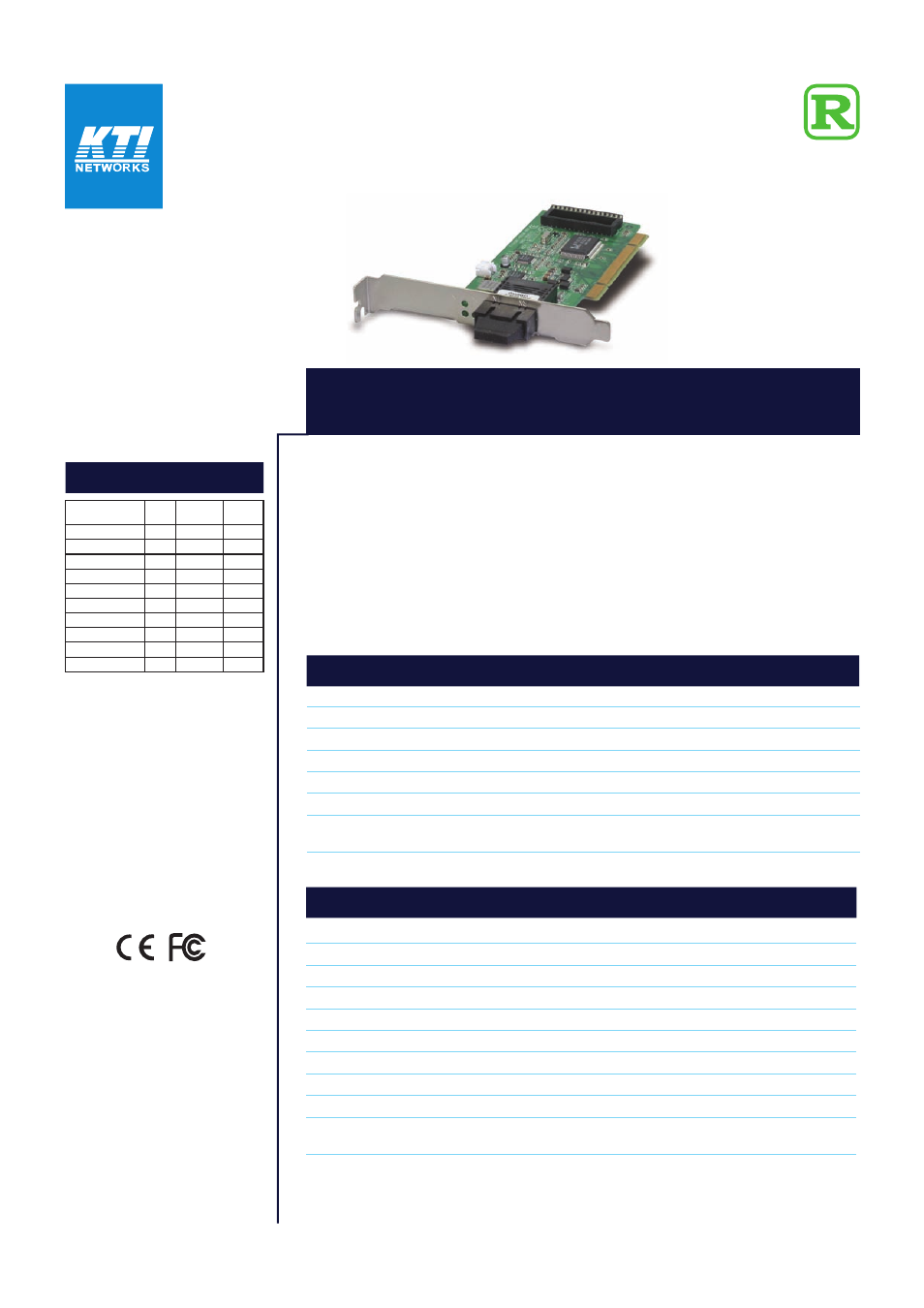

KTI Networks 100Base-FX Fast Ethernet PCI Adapter KF-221FX Ver.C User Manual
Kf-221fx ver.c, 100base-fx fast ethernet pci adapter, Specifications

Specifications :
100Base-FX Fast Ethernet PCI Adapter
Key Features :
PCI revision 2.1 and 2.2 compliance
32-bit PCI half-card supports standard PCI
Supports 100Base-FX fiber connection
Complies with IEEE 802.3u 100Base-FX standard
Supports diversified fiber connectors
Far End Fault support on the 100Base-FX port
Wake-On-LAN (WOL) function for ACPI-compliant systems
Supports plug-and-play installation for Windows XP/2000/ME/2003 systems
Supports network drivers for most popular operating systems
Optional PXE/RPL Boot ROM for network operating systems
Fiber Connectors
MM : ST, SC, MT-RJ, VF-45, LC & SM : SC
LEDs
100M Link, Act, Duplex
ACPI std.
Rev.1.1
PCI Power Management
Rev.1.1
DMI
Ver.2.0
PXE/RPL
PXE Ver.2.1
Environment
Operation Temperature : 0
O
C ~ 40
O
C
Relative Humidity :
10% ~ 90% non-condensing
Dimension
130 x 65 mm
KF-221FX Ver.C
Ordering Information :
MM : Multimode Fiber
SM : Single Mode Fiber
Ref. Distance: Reference connection distance
MM
MM
Mode
Fiber
Distance
Ref.
2km
2km
Model
KF-221FX-T
KF-221FX-C
Dual ST
Dual SC
Connector
MM
MM
SM
SM
SM
SM
2km
2km
20km
40km
20km
30km
KF-221FX-JM
KF-221FX-VM
KF-221FX-SL4
KF-221FX-SA2
KF-221FX-SL2
KF-221FX-SL3
MT-RJ
VF-45
Dual SC
Dual SC
Dual SC
Dual SC
SM
SM
15~20km
15~20km
KF-221FX-W3515
KF-221FX-W5315
Bi-Di SC
Bi-Di SC
Fiber Optical Specifications :
Model
Connector FiberCable Wavelength
Tx Power Sensitivity Rx Max.
-T
ST Duplex MMF
1310nm
-19~ -14dBm
-31dBm
-14dBm
-C
SC Duplex MMF
1310nm
-19~ -14dBm
-31dBm
-14dBm
-JM
MT-RJ
MMF
1310nm
-19~ -14dBm
-31dBm
-14dBm
-VM
VF-45
MMF
1310nm
-20~ -14dBm
-31dBm
-14dBm
-SA2
SC Duplex SMF
1310nm
-15~ -8dBm
-31dBm
-7dBm
-SL2
SC Duplex SMF
1310nm
-15~ -7dBm
-32dBm
-3dBm
-SL3
SC Duplex SMF
1310nm
-15~ -8dBm
-34dBm
0dBm
-SL4
SC Duplex SMF
1310nm
-5~ 0dBm
-34dBm
-3dBm
-W3515
Bi-Di SC
SMF
TX 1310nm
-14~ -8dBm
-31dBm
0dBm
RX 1550nm
-W5315
Bi-Di SC
SMF
TX 1550nm
-14~ -8dBm
-31dBm
0dBm
RX 1310nm
MMF : Multimode fiber 62.5/125 µm,50/125 µm
SMF : Single Mode fiber 9 /125 µm
FCC Part 15' Class B
CISPR 22 Class B
