25

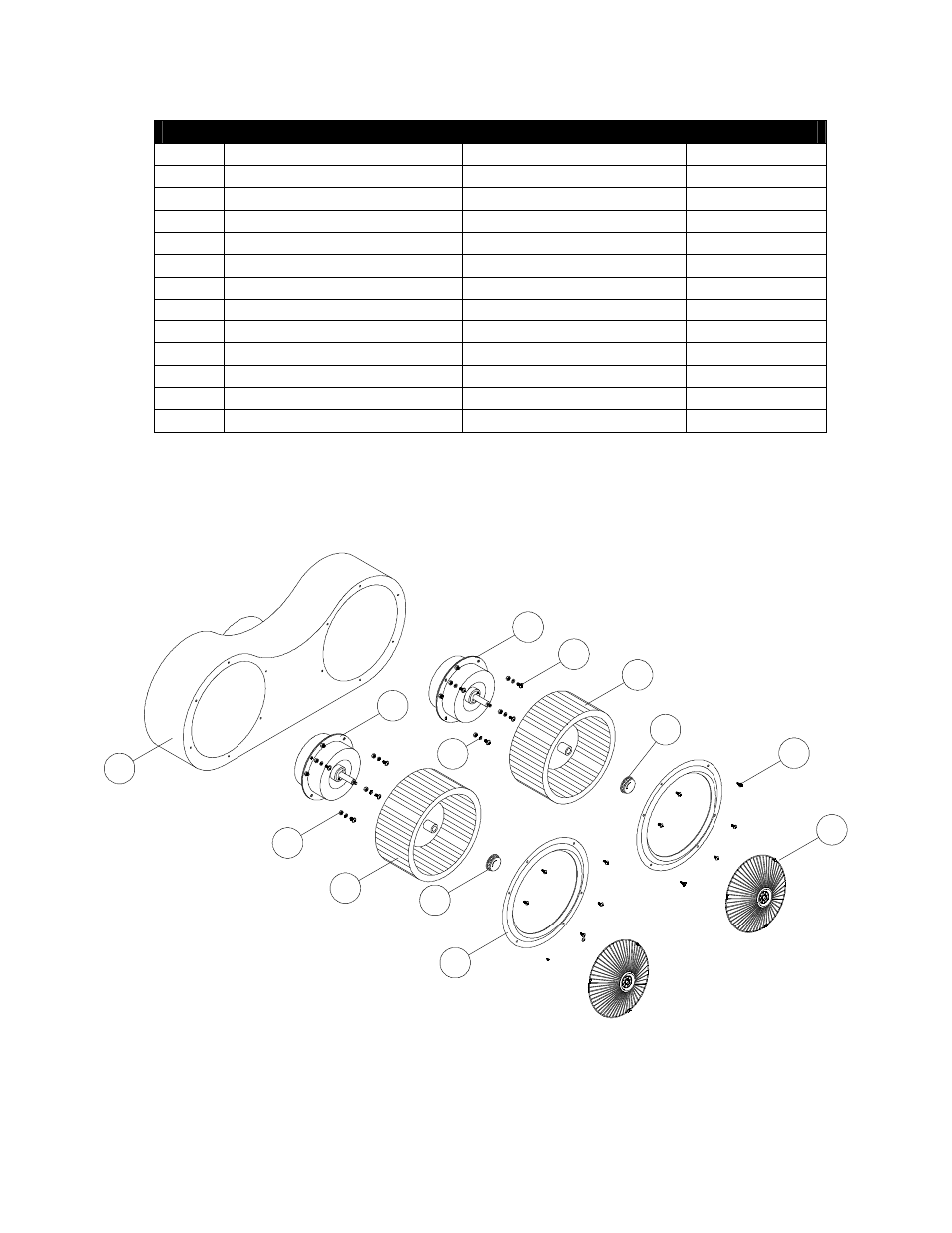

Blower Assembly
NO. DESCRIPTION MODEL/SIZE PART NO.
1 Air Chamber CH196-6.1
2 Screw Cap CH196-6.2
3 Left Squirrel Cage CH196-6.3
4 Left Locknut CH196-6.4
5 Air Flow Grill CH196-6.5
6 Screws (3/16” x 3/8”) CH196-6.6
7 Right Locknut CH196-6.7
8 Right Squirrel Cage CH196-6.8
9 Gasket CH196-6.9
10 Screws (3/16” x 3/8”) CH196-6.10
11 Left Motor CH196-6.11
12 Right Motor CH196-6.12
13 Safety Screen CH196-6.13
10
11
2
9
8
3
4
7
5
6
1
12
13
