9
STAND ALONE INSTALLATION
*** This installation only applies if installing with
the CH1120DC duct cover.
Preparation before Installation
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.
• Decide the location of the venting pipe
from the hood to the outside. (Figure 8)
• A straight, short vent run will allow the
hood to perform more efficiently.
• Try to avoid as many transitions, elbows,
and long run as possible. This may
reduce the performance of the hood.
• Temporarily wire the hood to test for
proper operation before installing.
• Important: Peel protective film off the
hood and duct covers, if any.
• Use duct tape to seal joints between pipe
sections.
• If necessary, prepare back wall frame with
cross
framing lumber for secure
installation.
• Using references in TABLE 2 and
measurements on pages 19-21, determine
the level of the lumber. (Figure 9)
Hood Preparation before
Installation
• If necessary, attach two rubber stands
(provided) with 3M adhesive tapes
(provided) to the back corners of the
hood.
• Attach the outer duct cover-mounting
bracket {K} (provided) to the hood-
mounting bracket {F} (provided) with two
(3/16” x 1/2”) screws (provided) as shown
in Figure 10.
• Attach the hood-mounting bracket {F} to
the back of the hood with six (3/16” x 1/2”)
screws (provided) as shown In Figure 11.
Hood Installation
CAUTION : If moving the cooking range
to install the hood is necessary, turn off the
power on an electric range at the main
electrical box. SHUT OFF THE GAS BEFORE
MOVING A GAS RANGE.

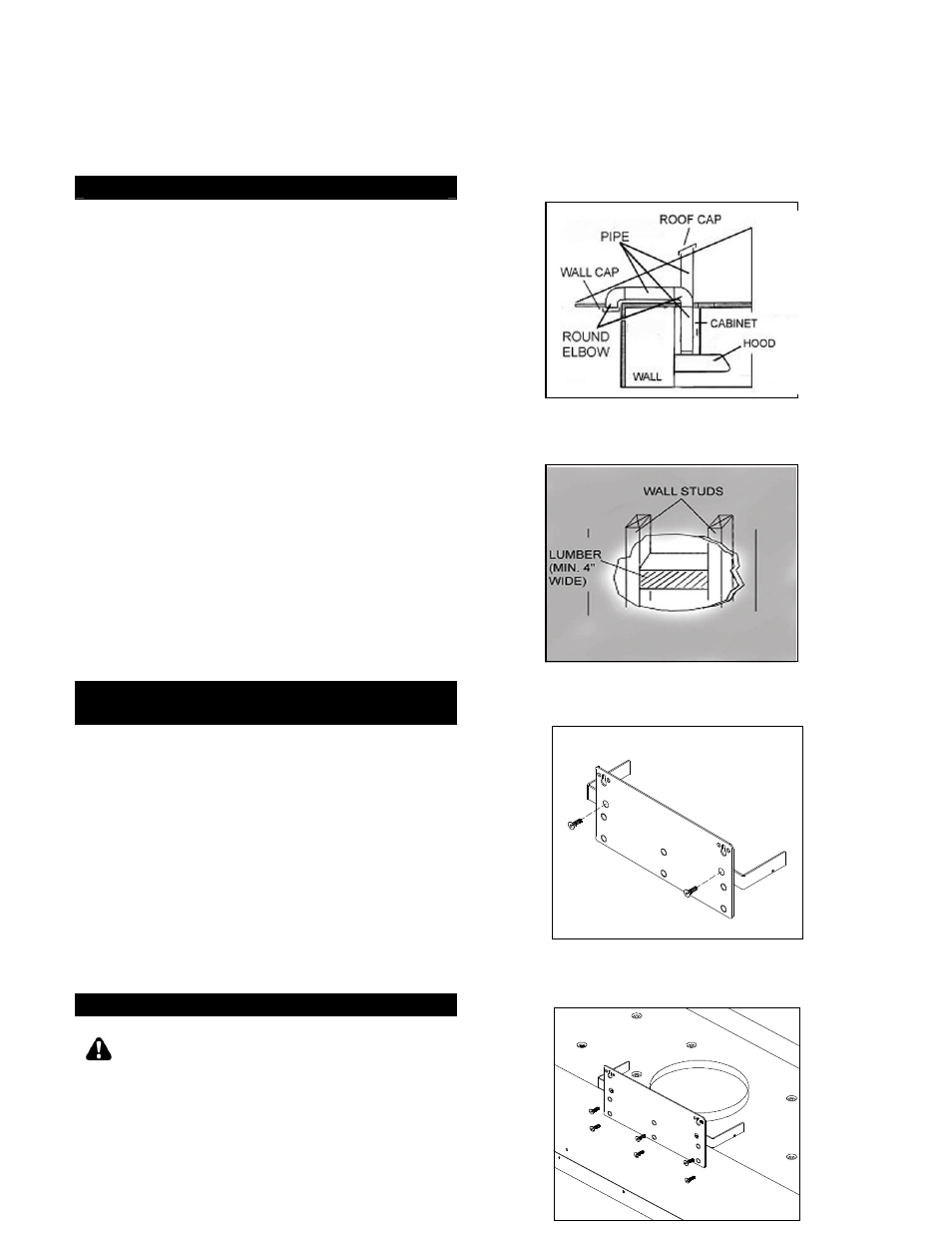

Figure 8
Figure 9
Figure 10
Figure 11
