2. Peel protective film off the duct covers and the hood (if
any).
3. If necessary, remove the rubber stand at the back of
the hood and store in case of future use. (For a more
secure installation, KOBE recommends not removing
the rubber stands.) Refer to Figure 3.
4. Place rubber seal on hood venting area; making sure
the holes on rubber seal and vent area are aligned.
Refer to Figure 4.
5. Pull power cord through the electrical opening on
plastic damper. Refer to Figure 5.
6. Place plastic damper on rubber seal and attach to
hood with seven ST 3.9 x 16 mm screws (provided).
7. Adjust height of duct cover and secure using two
ST 3.5 x 8 mm screws (provided). Refer to Figure 6
and Figure 7.

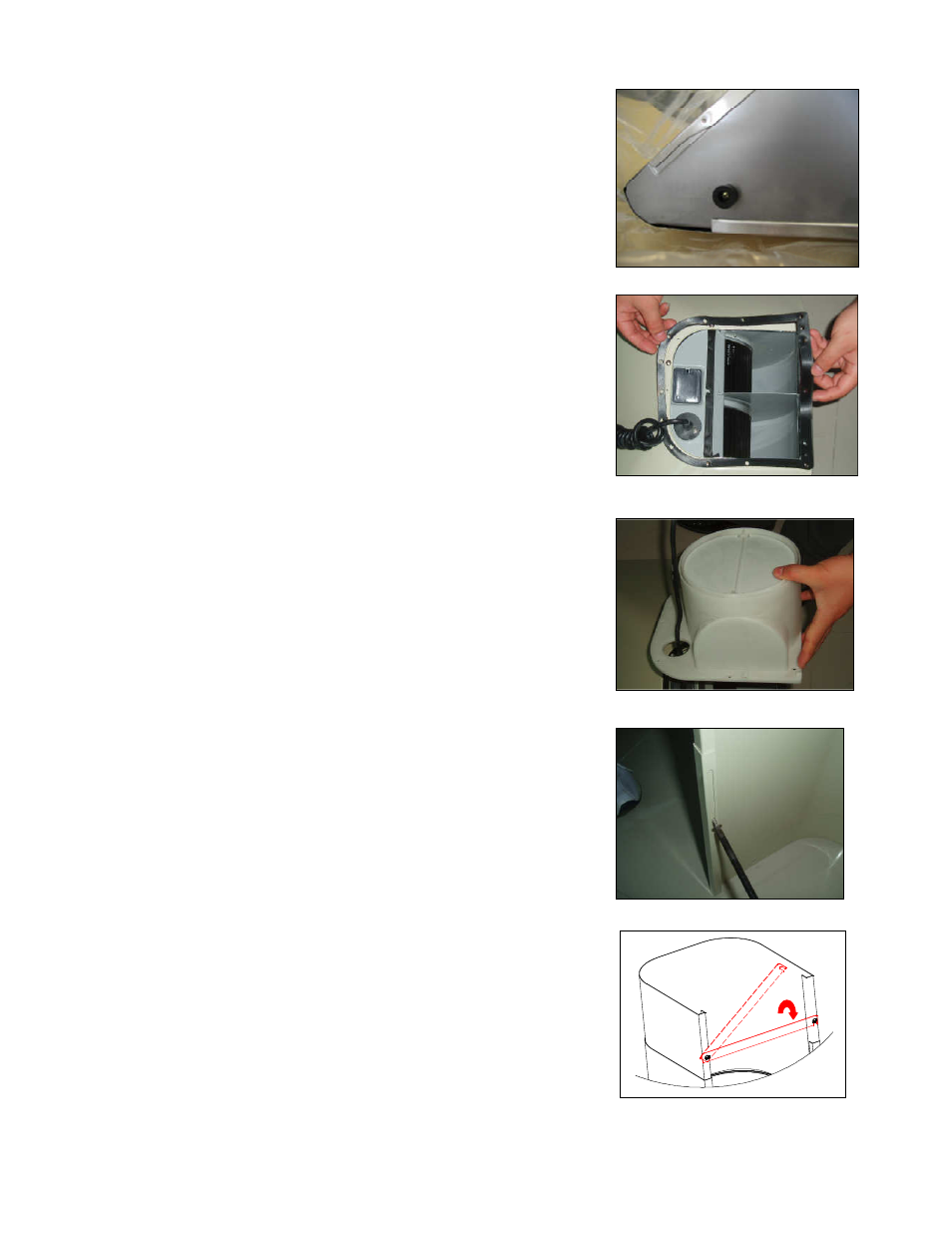

Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
