Views and Connections
5
Views and Connections

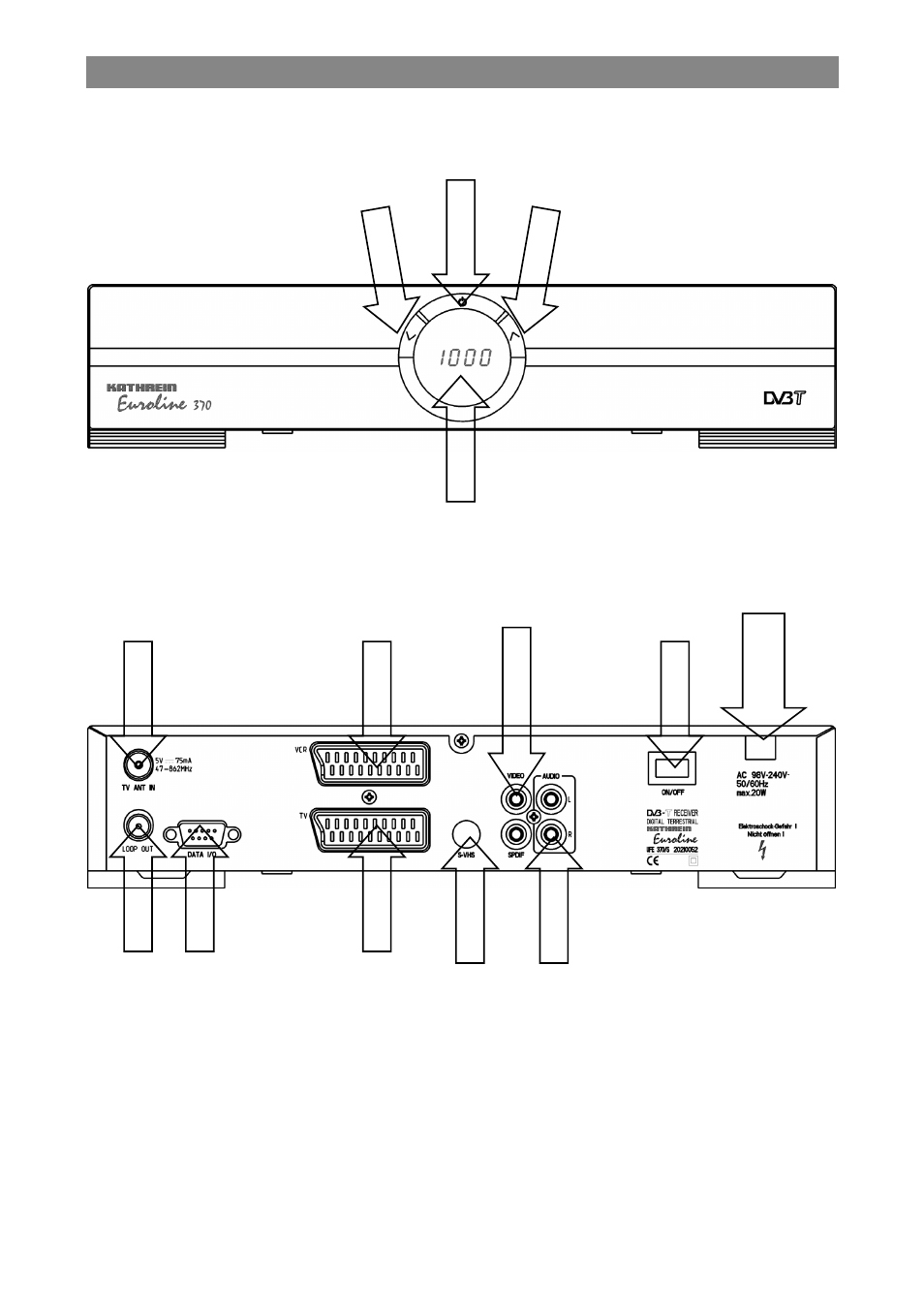

Front view
1) Power/Standby
button
2) Channel select buttons
3) Channel display
Rear view
1)
TV antenna input socket
2) TV antenna input (looped-through signal)
3) RS 232 data port for serial data transfer during service (only with special cable)
4) Scart connection for TV set
5) Scart connection for video recorder
6) S-VHS output
7) Video output Cinch socket
8) Audio outputs for stereo system (left and right): Cinch sockets
9) Power switch (On/Off)
10) Mains power cable
3
2 2
2
1
3 4
5
6 8
9
1
7
10
