SX .1 Series Amplifiers
Installa
tion

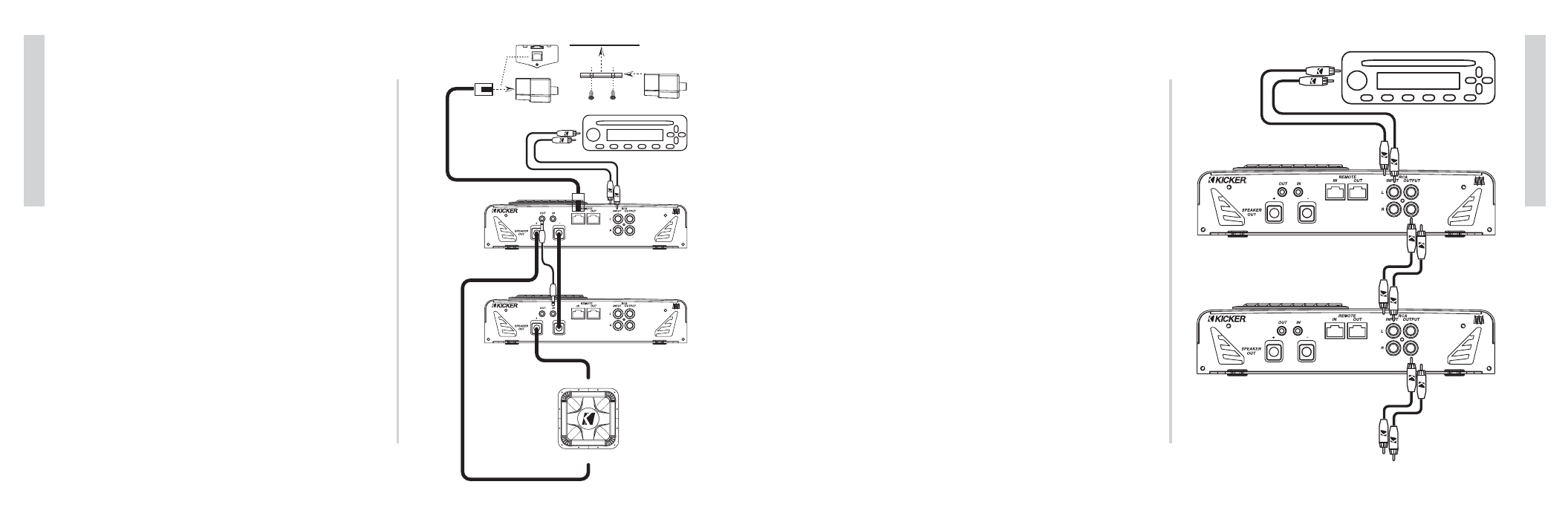

USING THE SIGNAL OUTPUT JACKS (PAST)
The Output (Pre Amp Signal Transfer) RCA jacks allow you to
send the incoming signal from one Kicker SX series amplifier
to another amplifier or processor without the need for Y
cables. The signal from the PAST jacks is identical to the signal
fed to the amplifier via its RCA input jacks and is not affected
by any of the amplifier’s built-in digital signal processing.
Most head units with high voltage outputs should be capa-
ble of driving up to ten amplifiers in a chain.
SOURCE UNIT
AMP STRAPPING
AMP STRAPPING
To Next Amplifier or Processor
12
SX .1 Series Amplifiers
Installa
tion
AMPLIFIER STRAPPING WITH REMOTE BASS CONTROL
The Remote Bass Level Controller can be used to adjust the
output level of both the amplifiers that are strapped together.
1.) Mount the Remote Bass Level Controller in the front of
your vehicle and plug in the supplied cable.
2.) Route the supplied cable to the primary amplifier and
connect to its BLAST In jack.
3.) Enjoy!
BACK VIEW
SIDE VIEW
Mounting Surface
SUPPLIED
CABLE
AMP STRAPPING
AMP STRAPPING
SOURCE UNIT
+
