SX .1 Series Amplifiers

Installa

tion

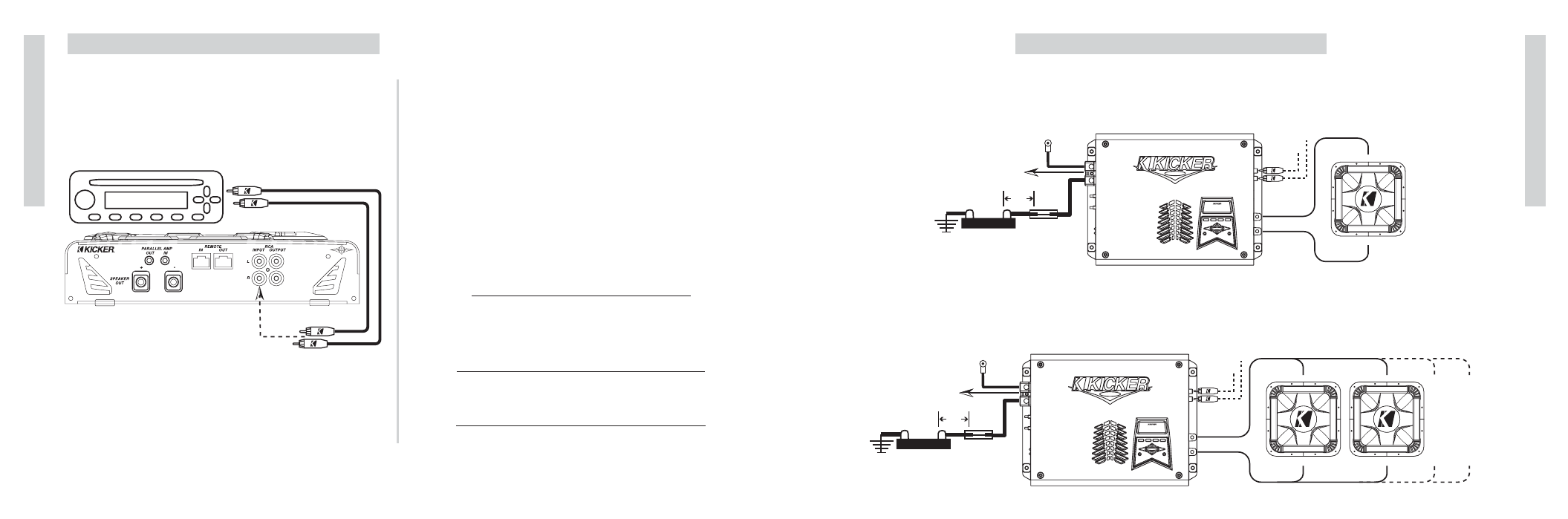

System Diagrams

SINGLE SPEAKER OR VOICE COIL

SX.1 series amplifiers are capable of operating into a minimum impedance of 2 ohms

(SX650.1) or 1 ohm (SX1250.1).

+

_

GROUND

REMOTE

TURN-ON

BATTERY

+12V

FUSE

18"

or less

S+

S

-

ESC

HOME

ENT

M1

AMP 1

LOCK LEFT SYS RIGHT MUTE

AMP 2

GAIN EQ LPF HPF PHASE KOMP

8

8

8

8

8

8

8

8

8

8

. . . . . . . . .

M2

M3

M4

SIGNAL OUT

SIGNAL IN

MULTIPLE SPEAKERS OR VOICE COILS PARALLEL WIRED

SX.1 series amplifiers are capable of powering multiple speakers or voice coils wired in

parallel as long as the minimum impedance does not drop below 2 ohms (SX650.1) or 1

ohm (SX1250.1).

GROUND

REMOTE

TURN-ON

BATTERY

+12V

FUSE

18"

or less

S+

S

-

ESC

HOME

ENT

M1

AMP 1

LOCK LEFT SYS RIGHT MUTE

AMP 2

GAIN EQ LPF HPF PHASE KOMP

8

8

8

8

8

8

8

8

8

8

. . . . . . . . .

M2

M3

M4

SIGNAL OUT

SIGNAL IN

+

_

+

_

+

_

+

_

8

SX .1 Series Amplifiers

Installa

tion

Wiring

Signal is input into the amplifier using the low level RCA

input connections. If your source unit does not have RCA

output connectors you will need to use a Hi-Lo level signal

adapter. See your Kicker dealer for more details on this.

The output (PAST) RCA jacks provide an unaltered signal

output to feed another amplifier or component.

SOURCE UNIT

The use of twisted pair interconnects is recommended for

all installations to minimize noise. When routing these cables

through the automobile, try to keep them away from factory

wiring harnesses and other power wiring. If you need to cross

any of this wiring do so at a 90 degree angle to reduce the

possibility for noise problems.

When working with power connections it is always recom-

mended that you disconnect the battery to prevent accidents.

The ground should be connected to the amplifier first

before making any of the other connections. This wire should

be as short as possible (24 inches or less) and connected to a

paint/corrosion free solid metal area of the car’s chassis. Use

the same gauge wire as recommended for the amplifier’s

power connection to the battery. Adding an additional ground

wire between the car battery’s negative post and the car chas-

sis of this same gauge (or larger) is also recommended.

If you ever need to remove the amp from the vehicle after

it has been installed, the ground wire should be the last wire

disconnected from the amplifier, just the opposite of when

you installed it.

A fuse must be installed within 18 inches of the battery to

protect the power wire feeding your amplifier. This fuse

should be of at least the same value used in the amplifier but

no higher than the capacity of the power wire. See the charts

below for wire size and fusing recommendations.

Model Fuse Size Wire Size

Wire Size Length Maximum Fuse

SX650.1

SX1250.1

60A

150A

4 GA

2 GA

8 Ga

4Ga

2 Ga

0Ga

8 Ga

4 Ga

2 Ga

0 Ga

Less than

10 feet in

length

70 Amps

175 Amps

250 Amps

400 Amps

40 Amps

90 Amps

150 Amps

200 Amps

10 feet to

20 feet in

length
