Kenwood KDC-228 - Manual (Page 25)

English | 25

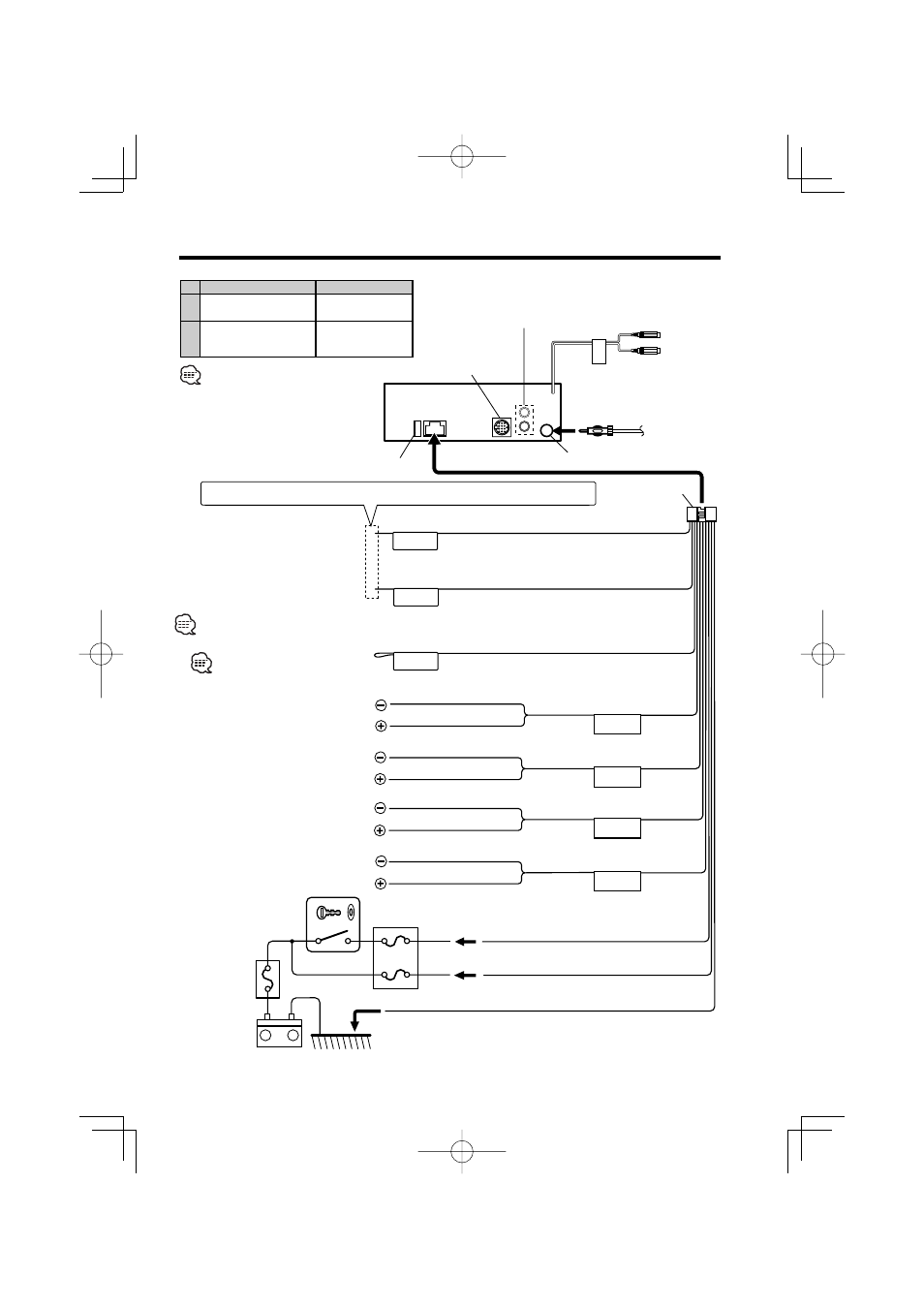

Connecting Wires to Terminals
MUTE
P.CONT
FRONT L
FRONT R
REAR L
REAR R
– +
FRONT
ANT.
CONT
Battery
Ground wire (Black) - (To car chassis)
FM/AM antenna input
Fuse (10A)
Wiring harness
(Accessory
1)
Ignition wire (Red)
Battery wire (Yellow)
ACC
Car fuse box
If no connections are made, do not let the wire come out from the tab.
Not Used (Blue)
To front left speaker
To front right speaker
To rear left speaker
To rear right speaker
White/Black
White
Gray/Black
Gray
Green/Black
Green
Purple/Black
Purple
Ignition key switch
Car fuse box
(Main fuse)
TEL mute wire (Brown) Connect to the terminal that is grounded
when either the telephone rings or during
conversation.
KDC-MP2028 KDC-MP228/228
A Front left output (White)/
Front right output (Red)
—
B To KENWOOD disc
changer/ External
optional accessory
To KENWOOD disc
changer/ External
optional accessory
To connect these leads, refer to the
relevant instruction manuals.
A
B
To connect the KENWOOD navigation system,
consult your navigation manual.
Rear left output (White)/
Rear right output (Red)
Power control/Motor antenna
control wire (Blue/White)
Connect either to the power control
terminal when using the optional power
amplifier, or to the antenna control terminal
in the vehicle.
Do not let the wire come out from
the tab.
