Monoshock, Swingarm – KTM 3CF6001F5EN User Manual
Page 9

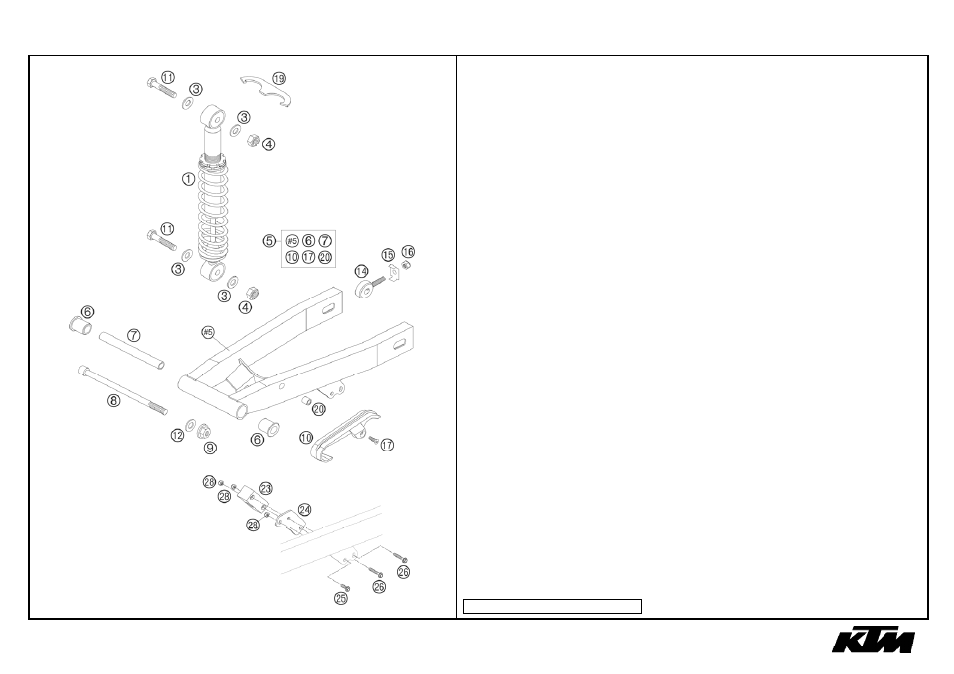

50 MINI ADVENTURE 2006
FIG PART
NUMBER
DESCRIPTION
QTY
1 45104010700
SHOCK ABSORB.ADV GS L=245MM 05
1
3 0125100003
WASHER DIN0125-A10,5
4
4 0982100003
SELF LOCK.NUT DIN0982-M10 HIGH
2
5 45104030044
SWINGARM CPL. JUN. ADV.+LC 02
1
6 45004031000
BUSHING BOX L=30 MM
2
7 45004039000
SPACING TUBE 10X13X140 MM
1
8 45103014000
SWING ARM BOLT M10X158,5 02
1
9 49009082000
SELF LOCKING NUT M10 FK8
1
10 45104066000
CHAIN SLID. GUARD FRO. MINI 02
1
11 0931100453
HH SCREW DIN0931-M10X45
2
12 31004001100
WASHER 10,5 X 21 X 3
1
14 45010083000
CHAIN ADJUSTER
2
15 45010083060
SUPPORTING BRACKET
2
16 0985080003
SELF LOCKING NUT DIN0985-M 8
2
17 0991060203
FLAT H.SCREW DIN7991-M6X20 8.8
1
19 45004010090
HOOK WRENCH 50 SXR
1
20 55003139900
BLIND RIVET THREAD M6 STE. 4MM
1
23 45004070000
CHAIN GUIDE REAR
1
24 45104170000
BRACKET FOR CHAIN GUARD 02
1
25* 0015050123
HH COLLAR SCREW M 5X12 WS=8
2
26 0015050303
HH COLLAR SCREW M 5X30 WS=8
1
27 0912050353
AH SCREW DIN912 M5X35
1
28 0985050003
SELF LOCKING NUT DIN0985-M 5
3
064500400 / C064500400
* NEW PART
X AS REQUIRED
7
MONOSHOCK,
SWINGARM
