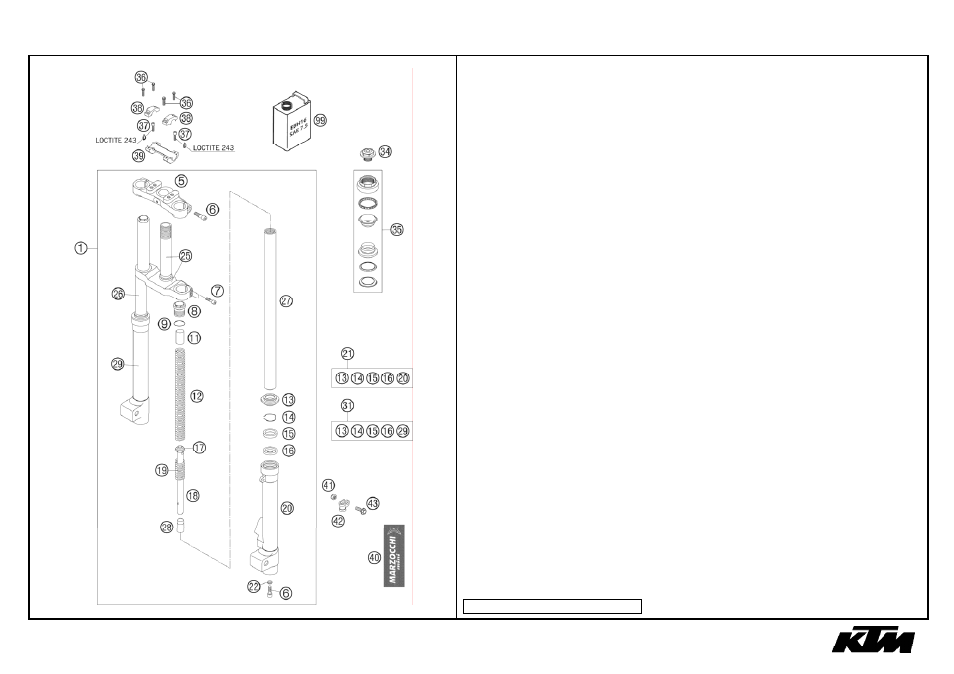

50 MINI ADVENTURE 2006
FIG PART
NUMBER
DESCRIPTION
QTY
1 45101000044
FORK CPL. 50 ADV. MARZ. 2002
1
5 7501476A
TOP FORK PLATE
1
6 0912080303
AH SCREW DIN0912-M 8X30
4
7* 0912060253
AH SCREW DIN0912-M 6X25
4
8 7504212AC
PLUG CAP
2
9 7528010
O-RING
2
11 7518031
PRE LOAD BUSH L=55MM 2002
2
12 75141169
SPRING 2N/MM
2
12 75141214
SPRING 2,5N/MM
x
13 7533297
DUST SEAL
2
14 7523264
STOP RING
2
15 7528230
OIL SEAL 32/42/6,5-9,5
2
16 7522166AA
WASHER D42X32,5X1,5
2
17 7524157
PISTON RING D32
1
ONLY FOR REBOUND DAMPING
18 78031104
PISTON ROD COMPRESSION MINI 02
1
COMPRESSION DAMP. RIGHT SIDE
18 78031105
PISTON ROD REBOUND MINI 02
1
REBOUND DAMPING - LEFT SIDE
19 75141015
REBOUND SPRING
2
20 75031538A/A
SLIDER LEFT SIDE 2002
1
21 75031538A/A/R
SLIDER LEFT SIDE CPL. 2002
1
22 7522225
WASHER 14X8X1,5
2
25 77051124
BOT. FORK PLATE CPL. MINI/JUN
1
26 7708247/R
FORK TUBE R/S MINI/JUN. 02
1
27 7708248/R
FORK TUBE L/S MINI/JUN. 02
1
28 7512068
FOOT BUFFER
2
29 75031366A/A
SLIDER RIGHT SIDE
1
31 75031366A/K/R
SLIDER CPL. RIGHT SIDE
1
34 50301036000
STEER.HEAD SCREW M20X1,5 WS=27
1
35 45101081100
STEER.STEM B. CPL. 50 SXR 2003
1
36 0015080303
HH COLLAR SCREW M 8X30 WS=10
4
37 0912100250
AH
SCREW
DIN6912-M10X25,10.9,L
2
38 50301038000
HANDLEBAR CLAMP D=22MM 2001
2
39 45101039000
HANDLEBAR SUPPORT D=22MM 2001
1
40 7547325
STICKER LEFT SIDE MARZOCCHI
1
064500100 / C064500100
* NEW PART
X AS REQUIRED
3
FRONT
FORK
