KTM 3CF6001F5EN - Manual (Page 8)

50 MINI ADVENTURE 2006
FIG PART NUMBER DESCRIPTION QTY
1 45103001500 FRAME ADVENTURE GS "MF3R" 03 1
4 54310086200 SELF LOCKING NUT M8 10.9 1
5 0015080603 HH COLLAR SCREW M 8X60 WS=10 2
6 0015080653 HH COLLAR SCREW M 8X65 WS=10 1
7 0015050123 HH COLLAR SCREW M 5X12 WS=8 1
8 0985050003 SELF LOCKING NUT DIN0985-M 5 1
9 45001070000 BRAKE CABLE CLAMP RSGU 9/12 1
12 58711054050 METAMOLL FOR BATTERY BRACKET 2
13 4510302310090 SIDE STAND L=270MM SILVER 02 1
14 45103023250 BUSHING FOR SIDE STAND 02 1
15 51003021000 SIDESTAND SPRING LONG 1
16 0015080203 HH COLLAR SCREW M 8X20 WS=10 1
17 36003014000 LOCK WASHER 8MM 5
18 50203053000 CHAIN ROLL D=30MM 1
19 0015080303 HH COLLAR SCREW M 8X30 WS=10 2
21 74003021000 BUSHING 8.2 X 12 X 6 1
22 0625006087 GROOVED BALL BEAR. 608 2RS C3 2
23 51103053000 CHAIN SLIDING PIECE BELOW '97 1
24 51103053051 BUSHING 8,2X10X20 1
30 0125100003 WASHER DIN0125-A10,5 2
31 0094032253 PIN DIN0094-3,2X25 STEEL 2
32 54603041000 FOOTREST SPRING L/S & R/S 2
33 54803044000 BOLT FOR FOOT PED 03 2
35 5460304000090 FOOT REST L/S SILVER 1
35 5460314000090 FOOT REST R/S SILVER '98 1
04450030 / C064500300 * NEW PART X AS REQUIRED
6

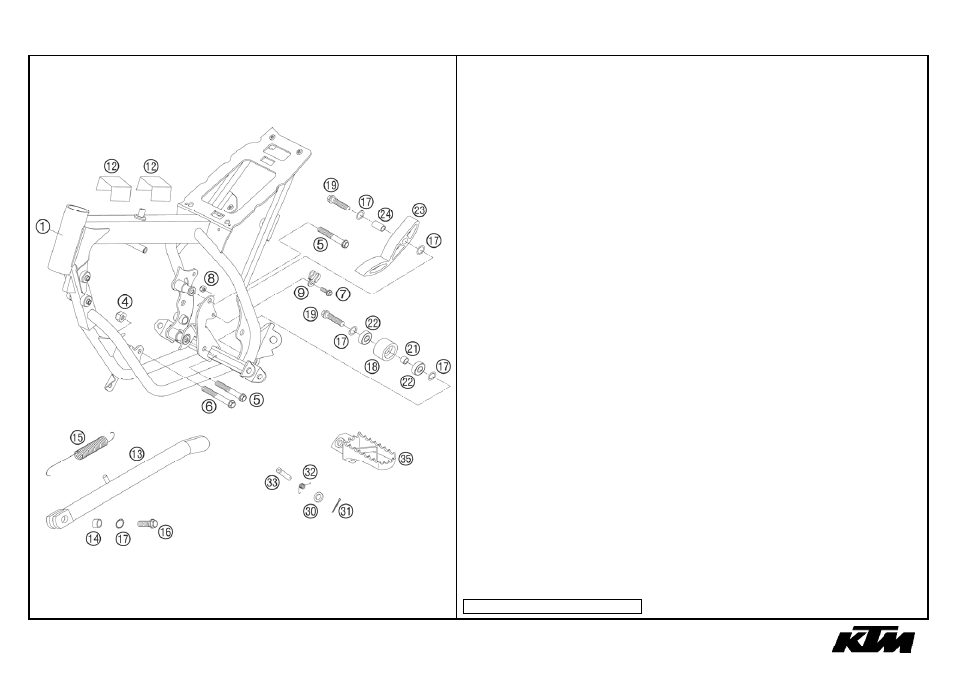

FRAME, SIDE STAND
