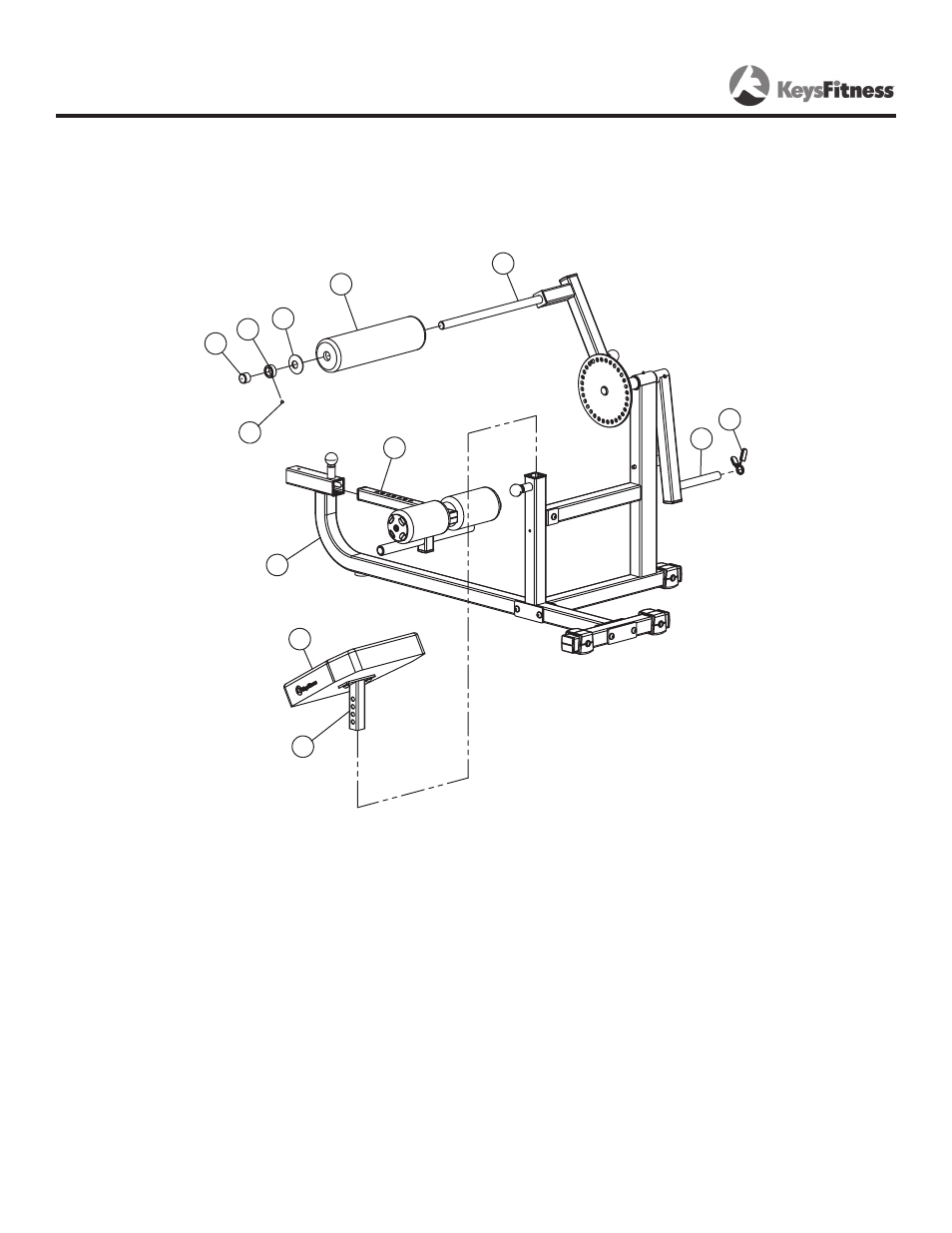

Slide Adjustable Foot Frame (7) assembly into Main Frame and secure
with Pop pin.
Insert Seat Pad (0) assembly into Main Frame and secure with Pop
Pin.
Slide Long Upholstered Roller Pad (18) onto Pivot Arm and secure
with:
1 x (3) Collar
1 x (37) Allen Bolt
1 x (33) End Cap for Shaft
1 x () Big Plastic Washer
Use Spring Collar (9) to secure weight plates on Weight Holder.
18
26
32
33
37
3
5
29
1
7
20
6
STEP 4
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
Assembly
9
