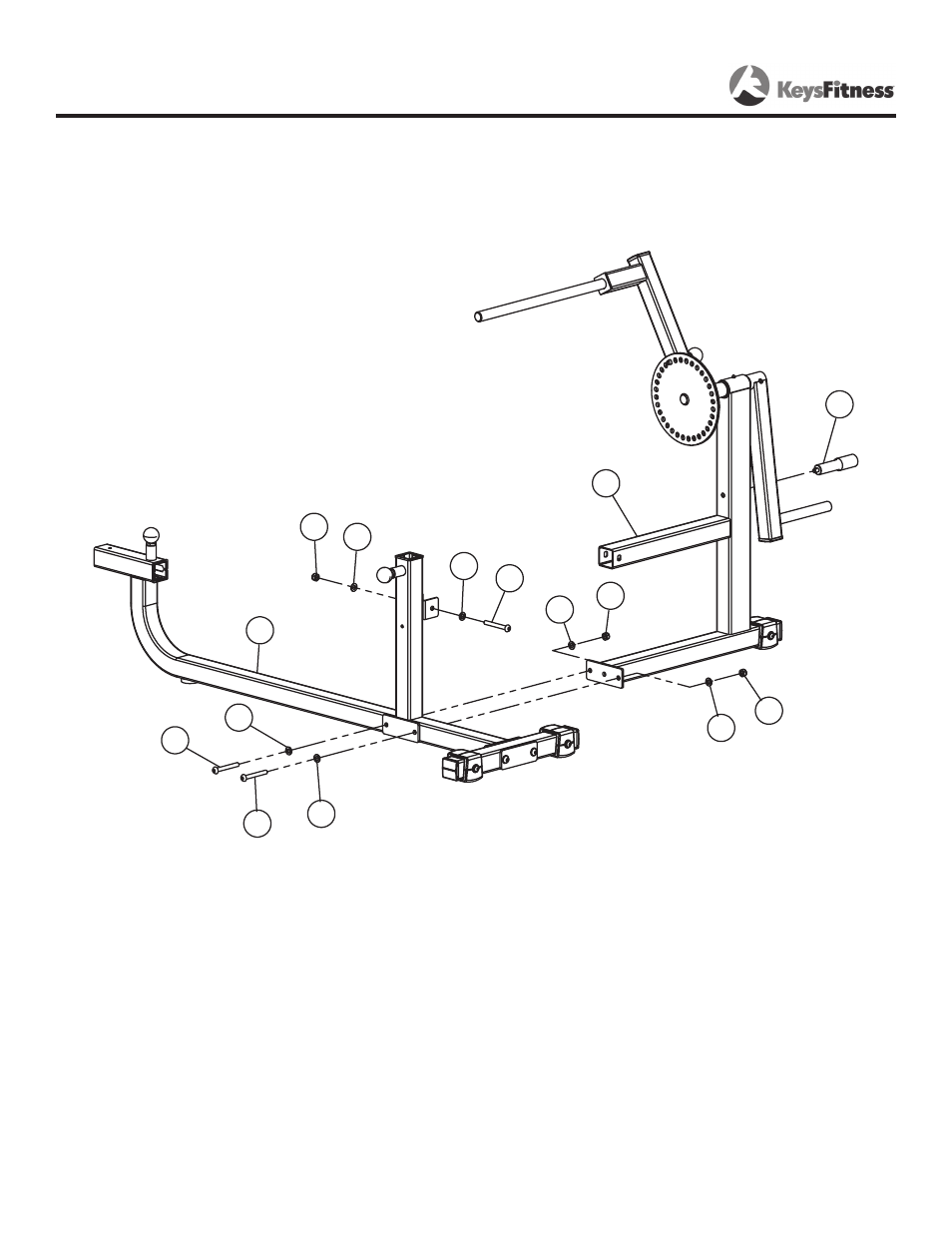

STEP 2
Connect Side Frame () to Main Frame (1) using:
1 x (38) Bolt 7 x (4) Washer
3 x (44) Nylon Lock Nut x (39) Bolt
Insert Stopper Prong (15) into Side Frame.
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
