Unpacking

Unpack the unit carefully and make sure that all the accessories are
present.
If any accessories are missing, or if the unit is damaged or fails to oper-
ate, notify your dealer immediately. If the unit was shipped to you di-
rectly, notify your shipper immediately. Kenwood recommends that you
retain the original carton and packing materials in case you need to move
or ship the unit in the future.
Keep this manual handy for future reference.

DPC-X337 (EN)

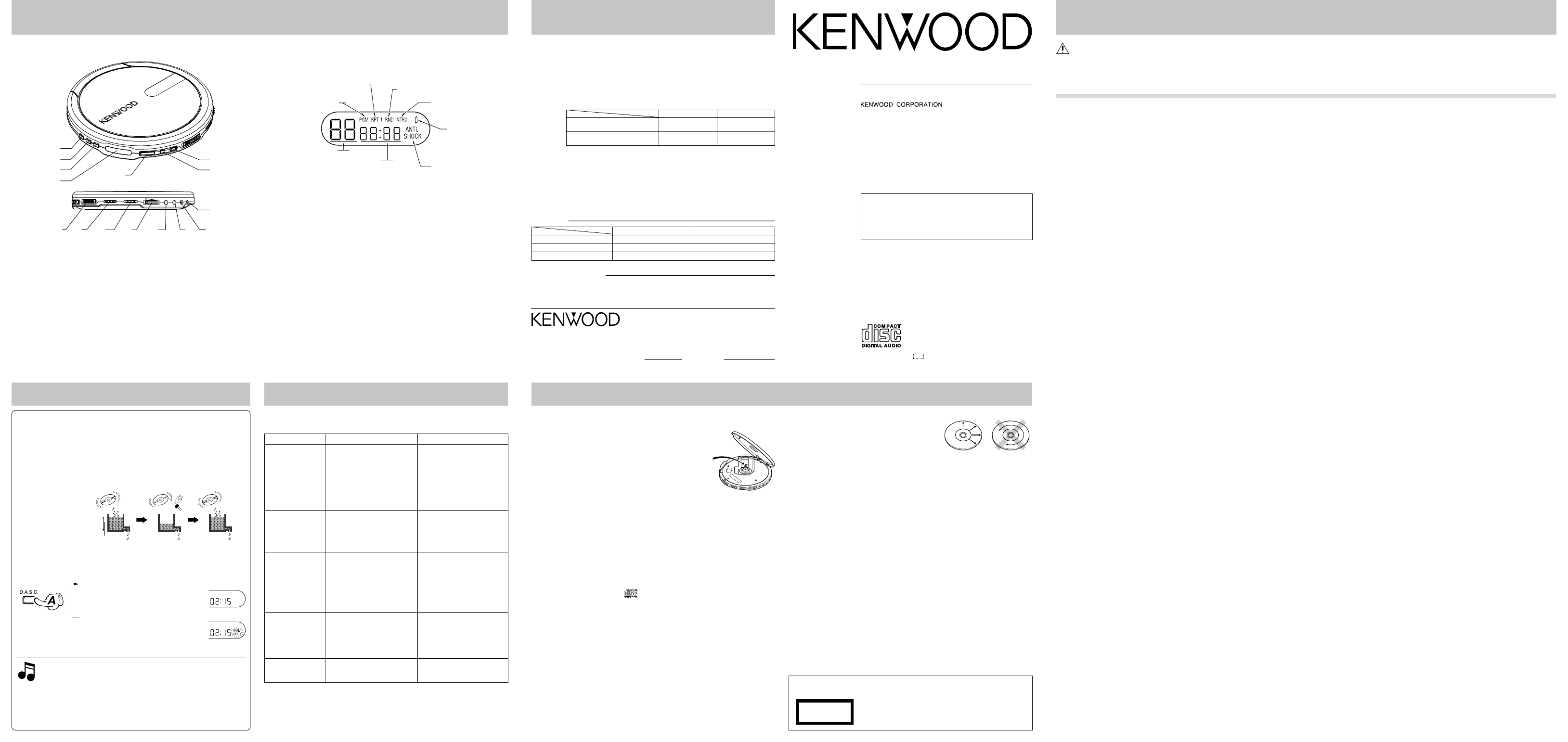

Part names

Unit

Display

Å D.A.S.C.(Digital Anti Shock

Circuit) key

ı P.MODE (Play mode) key
Ç PROGRAM key
Î Display
SKIP/SEARCH

4, ¢

(Skip/Search) keys

Battery duration
indicator

Repeat mode indicator

Program mode indicator

Playng time display

Track number display

З

М

О

П

ı

Е

У

¬

Ф

Т

˜

ˆ

ш

П PLAY/PAUSE

38 (Play/Pause) key

Ì STOP

7 (Stop/Off) key

Ó OPEN switch

(Slide to open top cover)

¬ HOLD switch
Ô B.BOOST (Bass Boost) key
VOLUME control knob

Ramdom mode indicator

Intoro scan indicator

D.A.S.C. mode indicator

What seems to be a serious trouble may sometimes be due to a simple mistake. Before calling for
service, check the items shown in the following table again. (If you request servicing due to the
reasons shown in the table, the service may be charged in some cases.)

In case of difficulty

Pressing a key
cannot initiate an
operation or turn
the unit on.

No sound is heard
from the head-
phones.

Sound skips, or is
interrupted.

Noise interferes.

Rechargeable
batteries cannot be
recharged.

÷ The HOLD switch is set to on

(HOLD On).

÷ The batteries are exhausted.

÷ The disc is placed upside down.

÷ Condensation has occurred in-

side the unit.

÷ The AC adaptor is disconnected.

÷ The headphones are connected

incompletely.

÷ The headphones are connected

to LINE OUT jack

÷ The volume is set to the mini-

mum position on the unit.

÷ The D.A.S.C. is set to off.

÷ A strong vibration that exceeds the

capacity of the D.A.S.C. has occurred.

÷ The disc is dirty.

÷ The lens is dirty.

÷ The headphone plug is dirty.

÷ The batteries are low.

÷ The headphone plug is dirty.

÷ The batteries are low.

÷ The headphones are connected

incompletely.

÷ A source of strong magnetism or

radio wave, such as a TV set or cel-
lular phone, is present near the unit.

÷ Commercially available recharge-

able batteries are used.

÷ Set the switch to off (HOLD

Off).

÷ Replace the two alkaline batter-

ies, or recharge the recharge-
able batteries.

÷ Place the disc with the labeled

side up.

÷ Leave the unit for about 1 hour

before re-use.

÷ Connect it properly.

÷ Insert the plug securely into the

PHONES jack.

÷ Insert the plug securely into the

PHONES jack.

÷ Adjust the volume on the unit.

÷ The D.A.S.C. is set to on.

÷ Place the unit in a place not sub-

ject to vibration.

÷ Clean it.

÷ The lens should be cleaned us-

ing a commercially available
camera lens blower.

÷ Clean it.

÷ Replace or recharge the batteries.

÷ Clean it.

÷ Replace or recharge the batteries.

÷ Insert the plug securely into the

PHONES jack.

÷ Install the unit away from a TV

set, cellular phone, etc.

÷ Use the exclusive rechargeable

batteries (NB-3A70).

Symptom

Sound skip guard function (D.A.S.C.)

When the D.A.S.C. function is operating, about a 180 seconds portion of
signals is always stored in memory. Consequently, when the unit re-
ceives an impact, playback will continue without interruption even if the
signal from the light pickup is interrupted.
"Wide CAPTURE" uses a method strong in regard to vibrations in the ro-
tation direction in addition to the conventional D.A.S.C. function, so that
the sound skip guard function is made even stronger.

Mechanism of D.A.S.C.

Storage of digital data

Digital memory

Reproduced
sound

Note :
1. This system uses a microcomputer so it may malfunction due to external noise or interfer-

ence. In such a case, unplug the power cord and remove the batteries, then re-connect the
power cord and insert the batteries again.

2. Erroneous operation may occur when the headphone plug is plugged or unplugged; but this

is not a malfunction.

Cause

Remedy

Setting the D.A.S.C.

The mode changes each time the D.A.S.C. key is pressed.

1 D.A.S.C. off

There is no data compression, so
that listening with high sound
quality is possible.

2 D.A.S.C. on : 180 seconds

Data are held for about 180 seconds.
Turn on D.A.S.C. when moving the
player or using it in areas subject to
vibration.

Specifications

Format

System ........................................................... Compact disc digital audio system
Laser ..................................................................................... Semiconductor laser

Audio

Frequency response ........................................................ 20 Hz to 20 kHz, ± 3 dB
PHONES output level (32

, 1 kHz ) ............................................... 9 mW + 9 mW

Line output/impedance (BASS BOOST on) .............................. 0.48 Vrms/47 k

Power supply

External DC supply ................................................................................. DC 4.5 V
Rechargeable batteries (NB-3A70) x 2 ................................................. DC 2.4 V
Commercially-available alkaline batteries (LR03) x 2 ........................ DC 3.0 V

Battery life (Fully charge)

÷ At 0.1mW+0.1mW output (32Ω load).

÷ Standard value during continuous use/charging in an temperature of 20˚C.

÷ Time of use may vary depending on battery maker, battery type, use environ-

ment, and temperatute.

Dimensions (W x H x D) ................. 137 mm x 20.5 mm x 137 mm (5- 3/8" x 13/16" x 5-3/8")
Weight (net) ........................................................................................................ 171 g (6.0 oz)

Note:
KENWOOD follows a policy of continuous advancements in development. For this reason
specifications may be changed without notice.

D.A.S.C. On

D.A.S.C. Off

Approx. 6.5 Hours

Approx. 5 Hours

Approx. 10 Hours

Approx. 6.5 Hours

Rechargeable batteries (NB-3A70)

Maintenance

Simple care

Care of lens

When the lens in the pick-up gets dirty, malfunctions in-
cluding the impossibility of playback may occur. The lens
should be cleaned using a commercially available cam-
era lens blower, etc. Do not touch the lens to prevent
damaging the mechanism. Also do not use a lens cleaner
or disc cleaner product.

Care of main unit

When the unit gets dirty, clean with a soft, dry cloth. If
the unit is stained seriously, a moistened cloth can be used. Do not use thinner,
benzine, alcohol, etc. for these agents may cause discoloration.

Cleaning the plug

Wipe the headphone plug with a soft cloth to keep it clean.
A dirty plug may cause noise or malfunction.

Caution on disc used

Usable discs

This unit is capable of playing back the Audio CD discs, CD-R/CD-RW (CD-DA)

discs and discs carrying the

marking. Other discs cannot be played. 8 cm

single CDs can be played as they are; do not use a commercially-available single
CD adapter.
÷ Certain CD-R/CD-RW discs may not be played due to recording conditions of

the discs.

Handling

Hold compact discs so that you do not touch the playing surface.
Do not attach paper or tape to either the playing side or the label side of compact
discs.
Never play a cracked or warped disc.
During playback, the disc rotates at high speed in the player. Therefore, to avoid
danger, never use a cracked or deformed disc or a disc repaired with tape or
adhesive agent.

Commercially-available alkaline
batteries (LR03)

Safety precautions

Caution : Read this page carefully to ensure safe operation.

WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

Please read all of the safety and operating instructions before operating this appliance. Adhere to all warnings on the appliance and in the instruction
manual. Follow all the safety and operating instructions. These safety and operating instructions should be retained for future reference.

1. Power sources — The appliance should be connected to a power supply only of the

type described in the instruction manual or as marked on the appliance.

2. Power-cord protection — Power-supply cords should be routed so that they are

not likely to be walked on or pinched by items placed upon or against them, pay
particular attention to cords at plugs, convenience receptacles, and the point where
they exit from the appliance.

3. Enclosure removal —Never remove the enclosure. If the internal parts are touched

accidentally, a serious electric shock might occur.

4. Drop — Do not drop the appliance or apply strong shock to it. (Damage due to

dropping the appliance is not covered by the warranty.)

5. Ventilation — Avoid hindering the ventilation of the appliance by covering it with a

cloth, etc.

6. Abnormal smell — If an abnormal smell or smoke is detected, immediately turn

the power OFF and pull out the power cord. Contact your dealer or nearest service
center.

7. Heat — Avoid placing the appliance under direct sunlight or near a source of heat

such as heating equipment. Particularly, never leave it in an automobile or on the
dashboard.

8. Temperature — The appliance may not function properly if used at extremely low,

or freezing temperatures. The ideal ambient temperature is above +5°C (41°F).

9. Water and moisture — The appliance shall not be exposed to dripping and splash-

ing - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc.

10.Dust and moisture — Avoid places where is dusty or where the humidity is high.

11.Vibrations — Avoid placing the appliance on an unstable place such as a shelf or in

a place subject to vibrations.

INSTRUCTION MANUAL

B60-5389-08 00 (E,M) AP 0302

DPC-X337

Before using the rechargeable batteries:
(For Europe)

÷ The rechargeable batteries comes non-charged condition.

Read "Rechargeable battery operation" carefully and charge
the batteries before use.

Cleaning

If fingerprints or foreign matter become at-
tached to the disc, lightly wipe the disc with a
soft cotton cloth (or similar) from the center of
the disc outwards in a radial manner.

Storage

When a disc is not to be played for a long period of time, remove it from the CD
player and store it in its case.

Precaution against condensation

Immediately after a room is heated or in a room with high humidity (or va-
por), the unit may malfunction due to the condensation of dew or mist on
the pick-up lens. In such a case, leave the unit for about an hour before
trying to use it again.

÷ Depending on the extent of the impact, the data in the memory

may be used up, so the playback skip protection may momentarily

be ineffective.

÷ When the D.A.S.C. function is activated, the disc may stop or start

to rotate.

÷ The reproduced sound is interrupted during switching.
÷ The D.A.S.C. is set to on when the power turns on.

For your records

Record the serial number, found on the back of the unit,
in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial num-
bers whenever you call upon your dealer for information
or service on this product.
Model

Serial Number

The marking this product has been classified as Class 1. It means
that there is no danger of hazardous radiation outside the product.

Location: Back panel

CLASS 1

LASER PRODUCT

The marking of products using lasers (For countries other than U.S.A.,
U.S.-Military and Canada)

Ò LINE OUT jack
˜ PHONES jack
ˆ DC IN (External power) jack
Ø IND. (Battery charge) indicator

D.A.S.C. (Digital Anti Shock Circuit)

PORTABLE CD PLAYER

Separately sold option part

Rechargeable Nickel Metal Hydride Battery ................................................................ NB-3A70

12.Magnetic fields — Keep the appliance away from sources of magnetic fields such

as TV sets, speaker systems, radios, motorized toys or magnetized objects.

13.Cleaning — Unplug this appliance from the wall outlet before cleaning. Do not

use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to
clean the cabinet. Use a clean dry cloth.

14.Nonuse periods — The power cord of the appliance should be unplugged from

the outlet when left unused for a long period of time.

15.Damage requiring service — The appliance should be serviced by qualified

service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally by following the instruc-

tion manual. Adjust only those controls that are covered by the instruction
manual as an improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the
appliance to its normal operation.

E. The appliance has been dropped, or the enclosure damaged.
F. The appliance exhibits a marked change in performance.

16.Servicing — The user should not attempt to service the appliance beyond that

described in the instruction manual. All other servicing should be referred to
qualified service personnel.

17.CAUTION — TO PREVENT ELECTRIC SHOCK DO NOT USE THE AC PLUG

WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

For Europe

For other countries

1

AC adaptor

2

Rechargeable Batteries

Headphones

1

1

Accessories
