Keys Fitness Alliance 850 User Manual

Page 4

background image

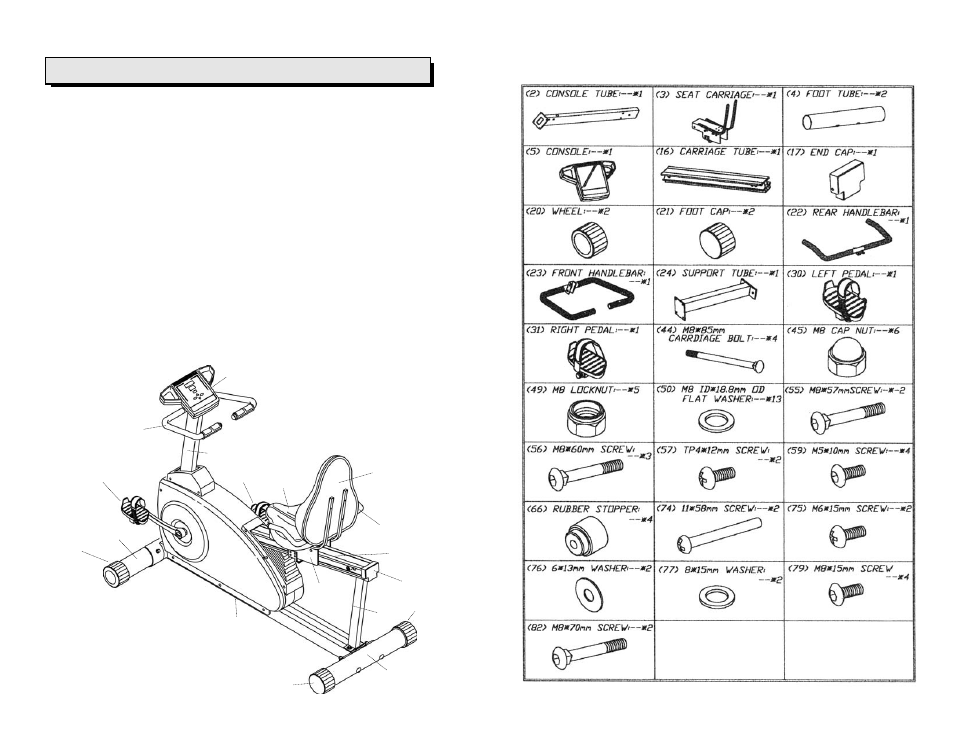

ASSEMBLY PARTS

PART

PART NO.

CONSOLE

5

FRONT HANDLEBAR

23

REAR HANDLEBAR

22

CONSOLE TUBE

2

SEAT CUSHIONS

9, 10

SEAT CARRIAGE

3

FRAME

1

FOOT TUBES

4

PEDALS

30, 31

FOOT CAPS

21

WHEELS

20

CARRIAGE TUBE

16

SUPPORT TUBE

24

END CAP

17

4

30

31

1

22

20

4

21

21

24

3

16

17

9

3

10

5

4

2

23

5
