Kenwood B64-1627-00 - Manual (Page 34)

TEL MUTE
P.CONT
ANT.CONT.
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
FRONT
REAR
English
— 34 —

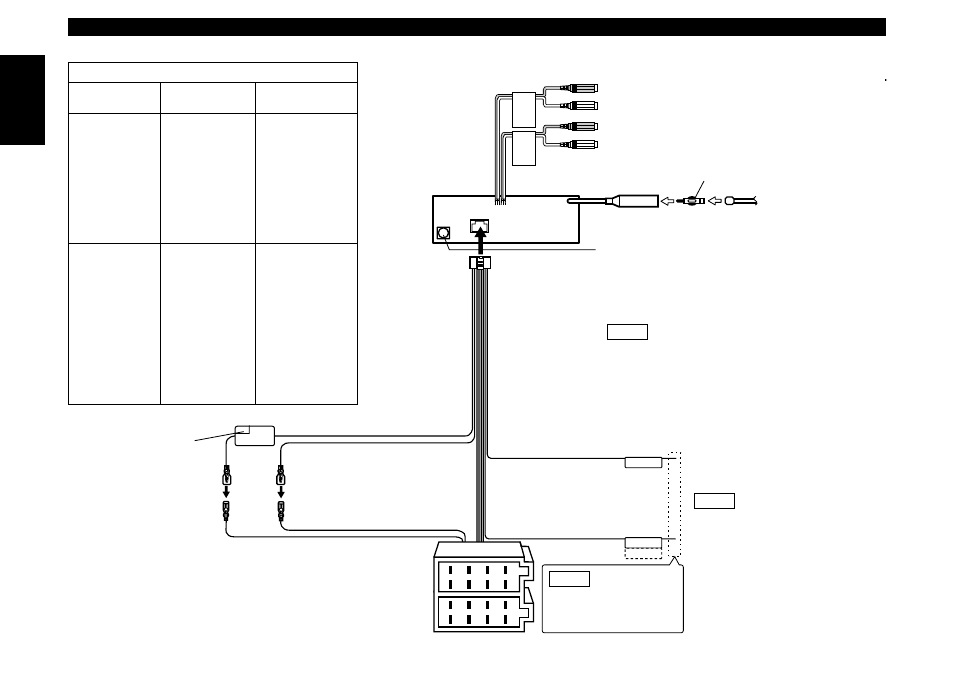

Connecting Cables to Terminals
Front left output (White)
Front right output (Red)
Rear right output (Red)
Rear left output (White)
Connector Function Guide
Pin Numbers for
ISO Connectors
Cable Colour Functions
External Power
Connector
A–4
A–5
A–6
(KDC-6080R/RV only)
A–7
A–8
Speaker
Connector
B–1
B–2
B–3
B–4
B–5
B–6
B–7
B–8
Yellow
Blue/White
Orange/White
Red
Black
Purple
Purple/Black
Gray
Gray/Black
White
White/Black
Green
Green/Black
Battery
Power Control
Dimmer
Ignition (ACC)
Earth (Ground)
Connection
Rear Right ( + )
Rear Right ( – )
Front Right ( + )
Front Right ( – )
Front Left ( + )
Front Left ( – )
Rear Left ( + )
Rear Left ( – )
KENWOOD disc changer/DAB control input/
Battery cable (Yellow)
Ignition cable (Red)
FM/AM
antenna input Antenna Cord (ISO)
Antenna Conversion Adaptor (ISO–JASO) (Accessory3)
To connect the Disc changer or DAB unit,
consult each manual.
NOTE
Wiring harness
(Accessory1)
If no connections are
made, do not let the cable
come out from the tab.
NOTE
Connect to the terminal that is
grounded when either the telephone
rings or during conversation.
Power control/ Motor antenna
control cable (Blue/White)
Connect either to the power control
terminal when using the optional
power amplifier, or to the antenna
control terminal in the vehicle.
A–7 Pin (Red)
A–4 Pin (Yellow)
Connector B
Fuse(10A)
Connector A
TEL mute cable (Brown)
To connect the KENWOOD navigation
system, consult your navigation manual.
NOTE
Display Data Output Jack
Outputs data representing the unit's current state,
causing it to appear in the external display.
To connect to this jack, a converting adapter
(optional) is necessary.
