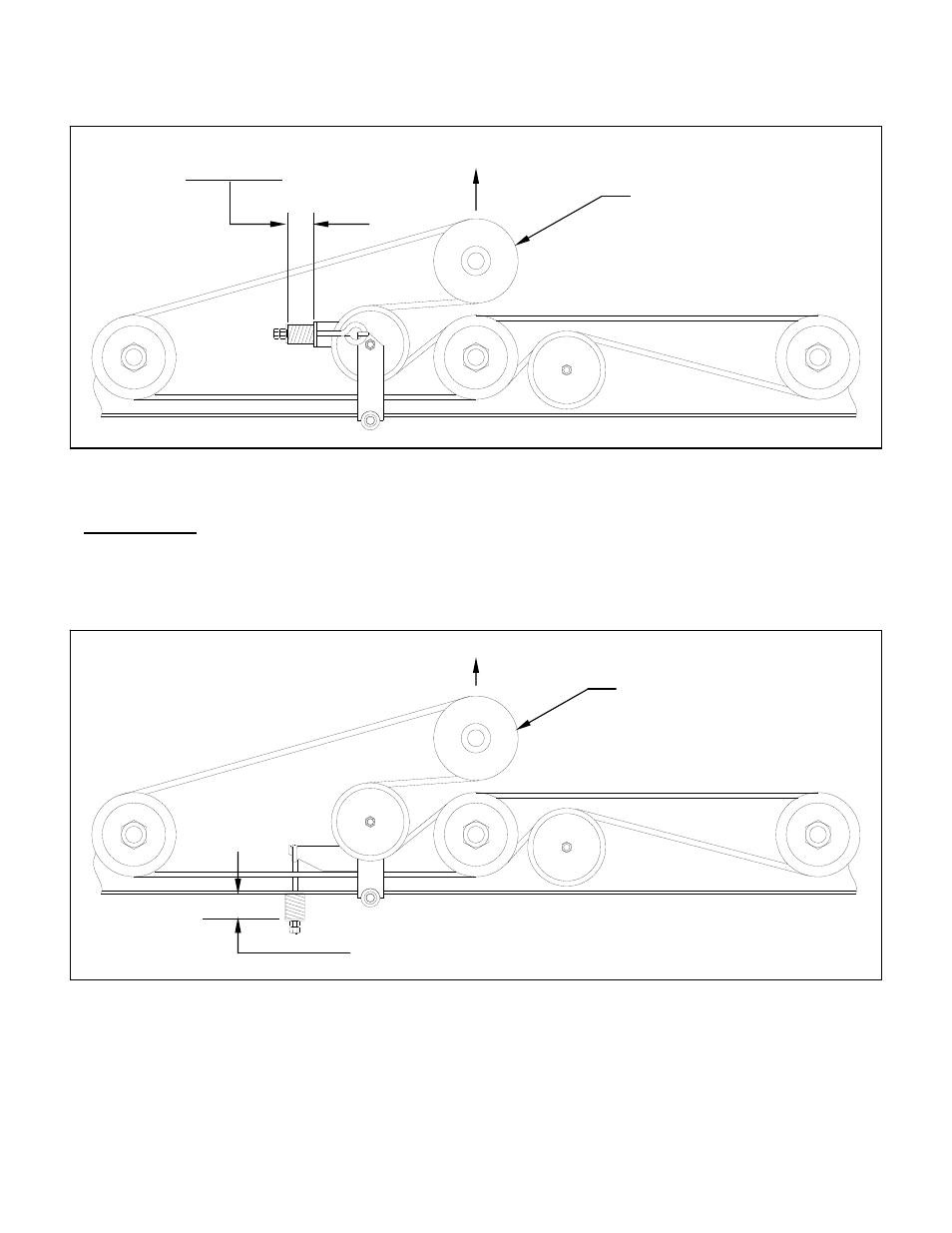

Figure 8: Belt Pattern and Spring Adjustment (Model H60T & H60B)
Model C60K: –
See Figure 9.
springs to a compressed length of 15/16” initially for a few hours
until the belts run in; then adjust the spring to 1-1/8” to 1-1/4” compressed length.
Adjust the spring-loaded idler
ring Adjustment (Model C60K)
Front
Engine
Initial Spring Length 15/16”
Running Spring Length 1-1/8” to 1-1/4”
Front
Engine
Initial Spring Length 15/16”
Running Spring Length 1-1/8” to 1-1/4”
Figure 9: Belt Pattern and Sp
