Technical annex

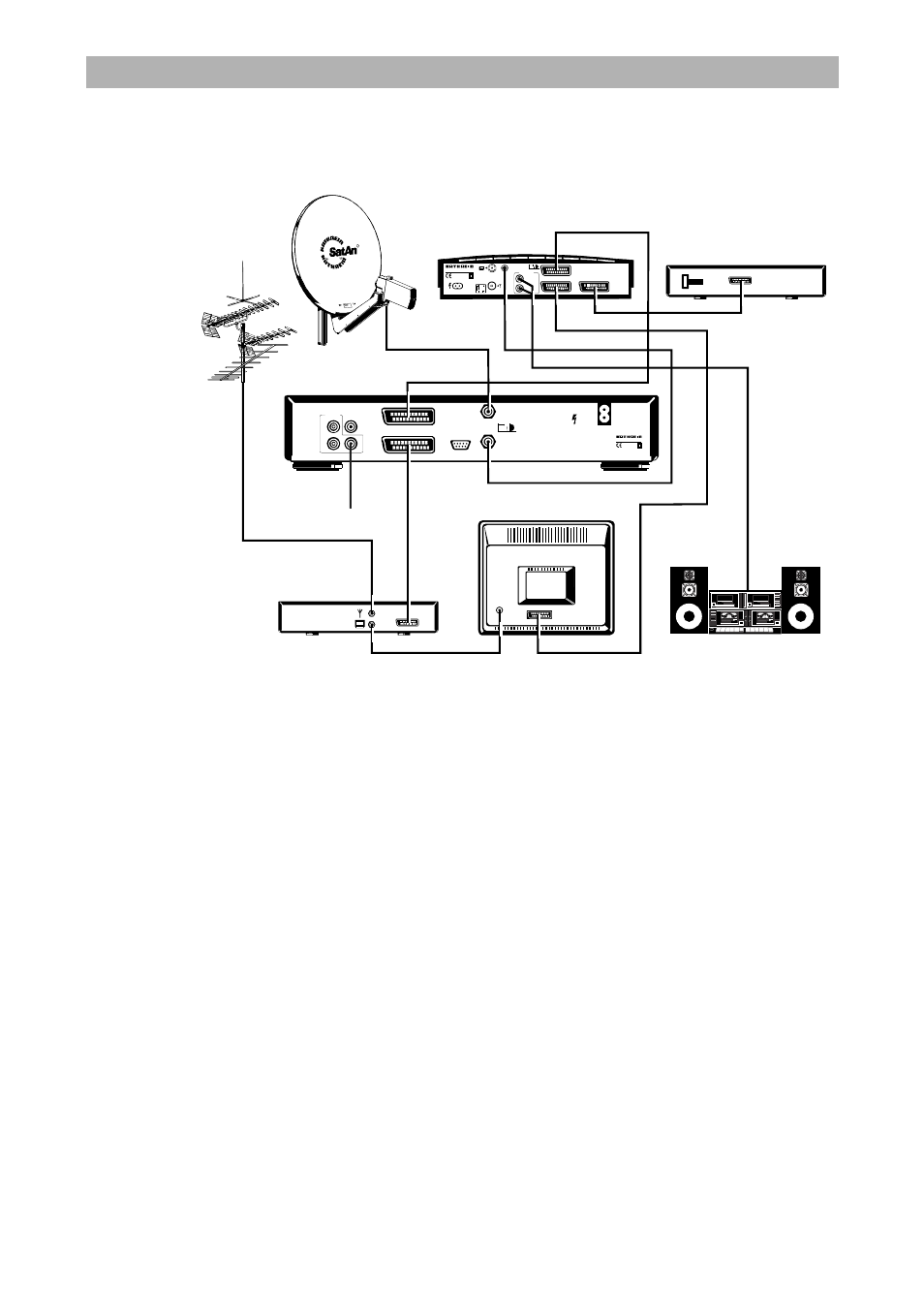

Connection arrangement 2:
VCR
TV
Decoder
UFD 400 260440
230V~50Hz
21Watt
DATA I/O
TV IF INPUT 920-2150MHz 14/18V max. 400mA 22kHz AUDIO-OUT
TV RADIO
L
R TV DECODER
VCR DiS EqC 1.1
IF INPUT DIGITAL
920-2150MHz
14/18V max. 400mA
22kHz
VCR
AUX UFD 505 260494
TV
IF OUTPUT
DiSEqC 1.1
DATA I/O
AC 88V-264V~
50/60 Hz
max.30W
Elektroschock-Gefahr!
Nicht öffnen
L
R
AUDIO VIDEO
R
Analog Receiver
DVB-Receiver
UFD 505
HiFi
VHF/UHF
VHF/UHF
1 x
Universal-LNB
Cinch
Scart
Scart
Scart
Scart
Digital Audio
Connection of a DVB receiver to an analogue Sat receiver and the complete TV
and hi-fi system. The digital sound output can be connected to a Dolby Digital Sys-
tem.
The roof antenna connected via the video recorder to the TV permits the reception
and recording of terrestrial programmes.
